Relays>>>Home Improvement
Brand Name GEYA
Certification CE
Origin CN(Origin)
Theory Electromagnetic Relay
is_customized Yes
Contact Load Low Power
Voltage 24V
Model Number FY-2NG2R Relay Module
Protect Feature Sealed
Power Source DC
Usage General Purpose
Rated voltage 12VAC/DC, 24VAC/DC
Relay Mounting Omron Relay Plug Type
Rated Load Current 5A 250VAC/30VDC
Output contact: 2Channel & 2NO2NC
Coil Power Approx 0.53W
Operate Time less than 15ms
Release Time less than 10ms
Product Name 2NC 2NO Omron Relay Module
Size
2NO2NC-2C-12VACDC
2NO2NC-2C-24VACDC

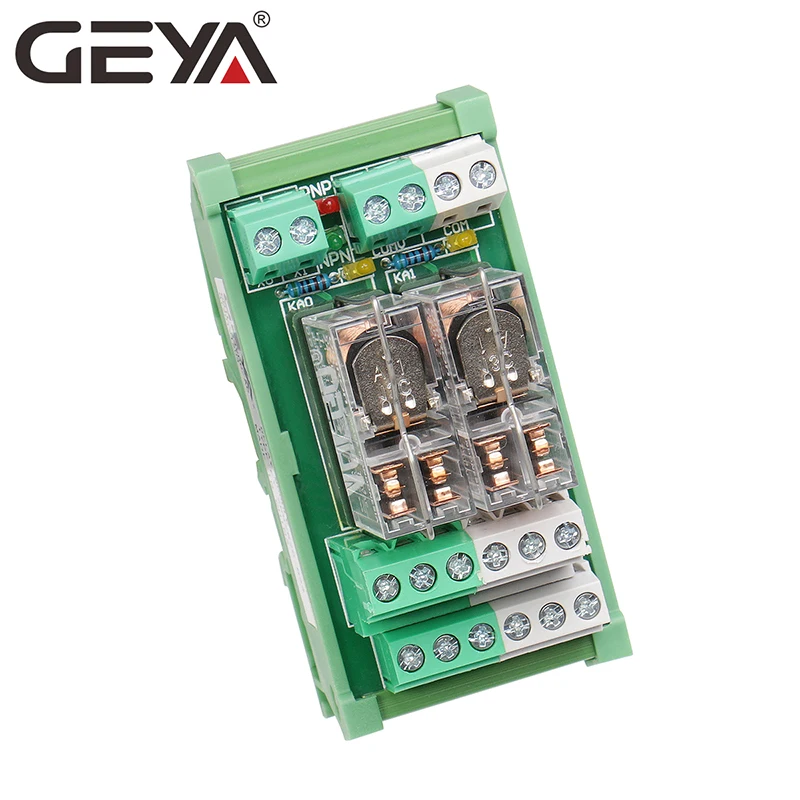

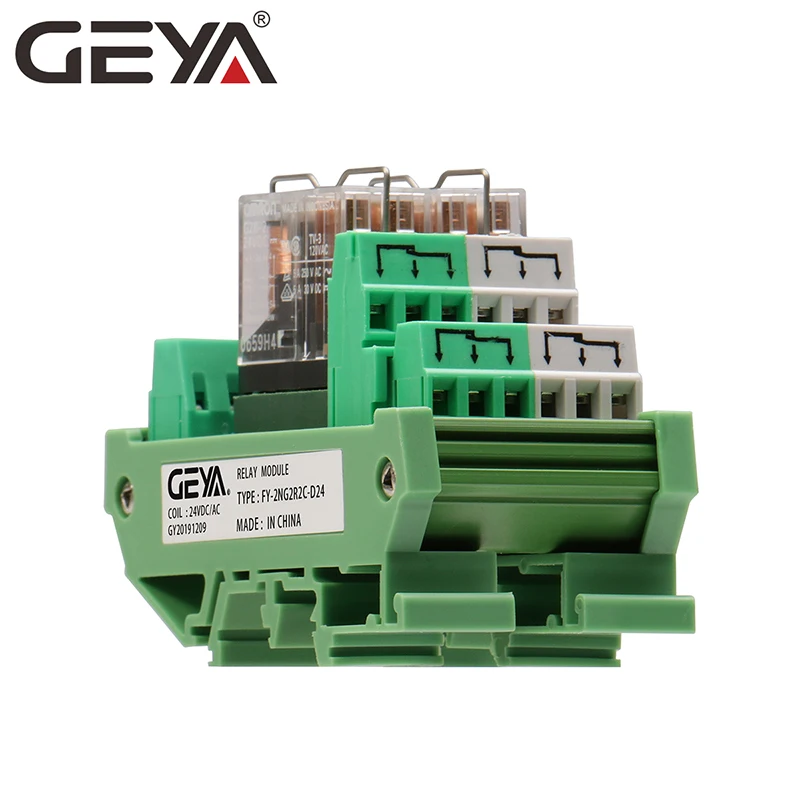

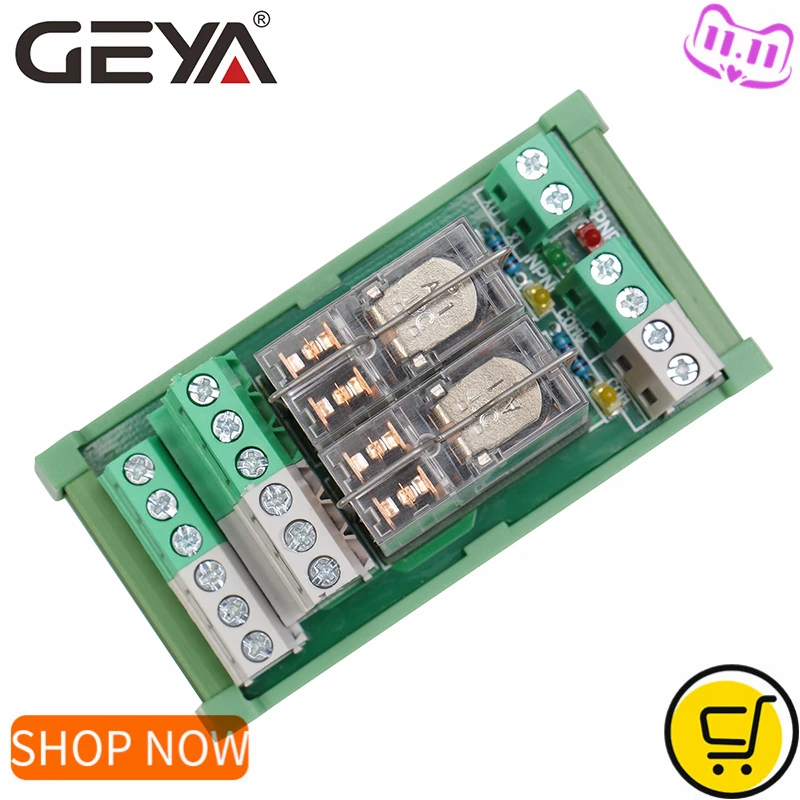

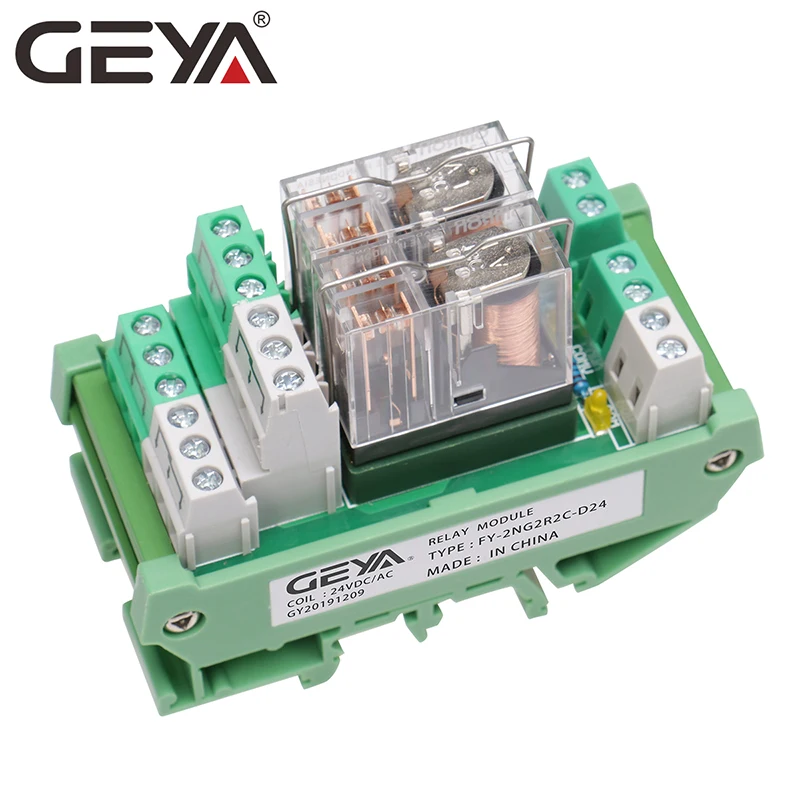

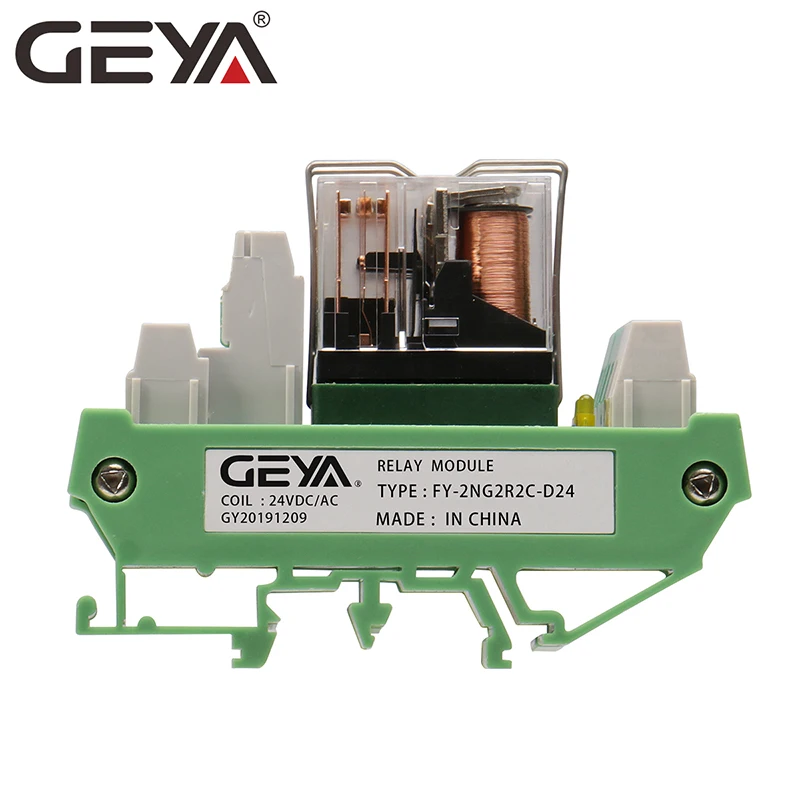

GEYA 2NG2R 2 Channel Omron Relay Module 2NO 2NC DPDT PLC RELAY Interface 12V 24V AC/DCGeneral
Relay Modules is used for PLC output load current amplification and isolation protection,and installed in the digital output terminal of PLC,MCU industrial control board, time relay, buttons and other controllers. It amplifies the output current of the output terminalfor high-power equipment and weak current control, to protect the control system not being damaged.
Features:1. 2NO 2NC independent relay module;
2. Buit-in Omron Electromagnetic relay certiļ¬ed with CCC,CE
3. Switching current upto 5A at 250VAC or 30VDC
4. Input connections by screw terminal block.NPN&PNP in common use, AC&DC in common use
5. Relay status indicator LED,surge suppression protection and overvoltage protection are provided for each relay channel

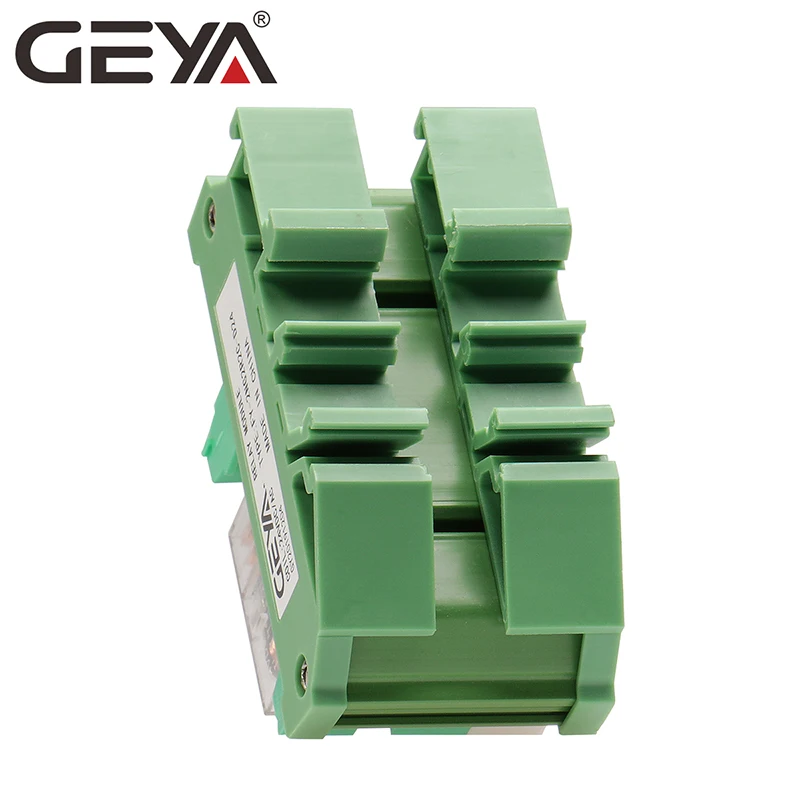

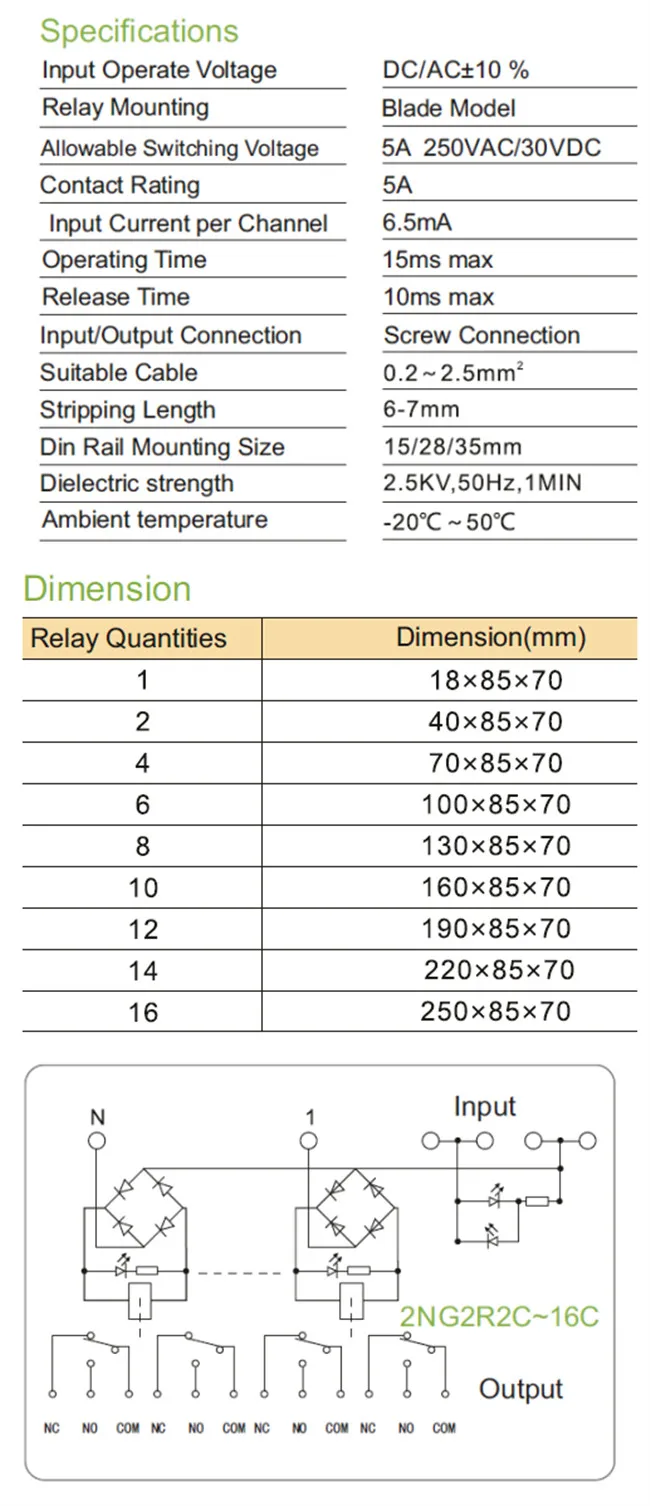

6. DIN Rail mountable for width TS15/28/35Technical Data
