TE2000 Micro Differential Pressure Gauge High Precision Air Differentialvacuum Manometer Micro Measuring Range 0-60PA~0-30KPA

Pressure Measuring Instruments>>>Tools

Brand Name ELECALL

Display Type ANALOG

Max Measuring Range 49 PSI & Under

Model Number TE2000

Dial Diameter 4 - 6.9 Inches

Weight 510g

Type Gas Sensor

Material Mixture

Output Analog Sensor

Suarface Diameter 120mm

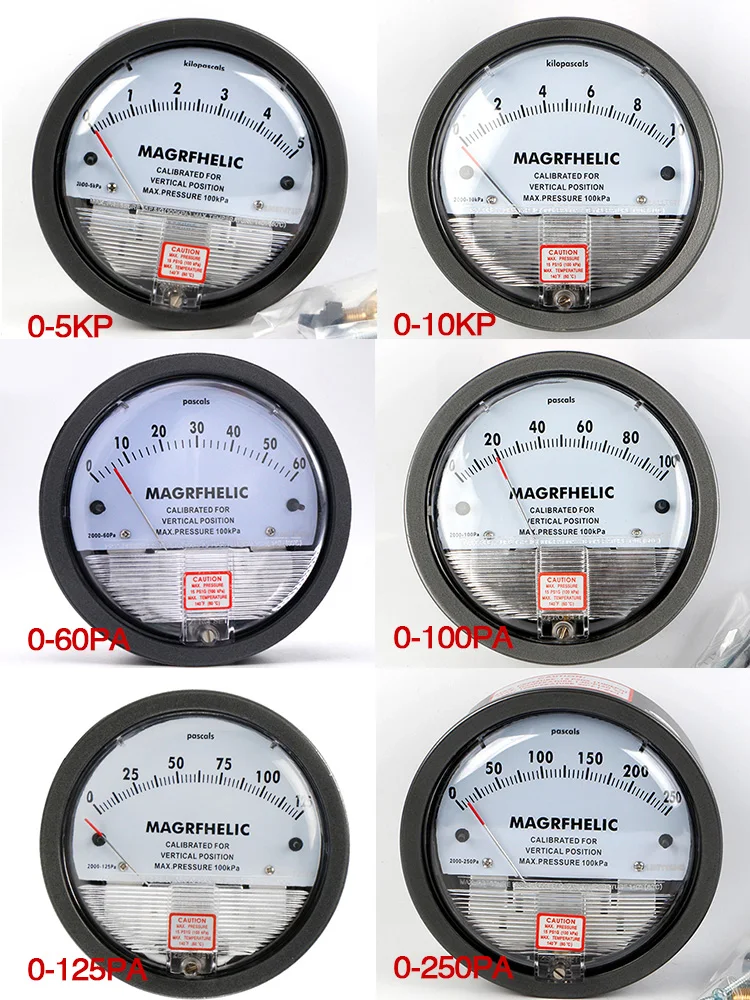

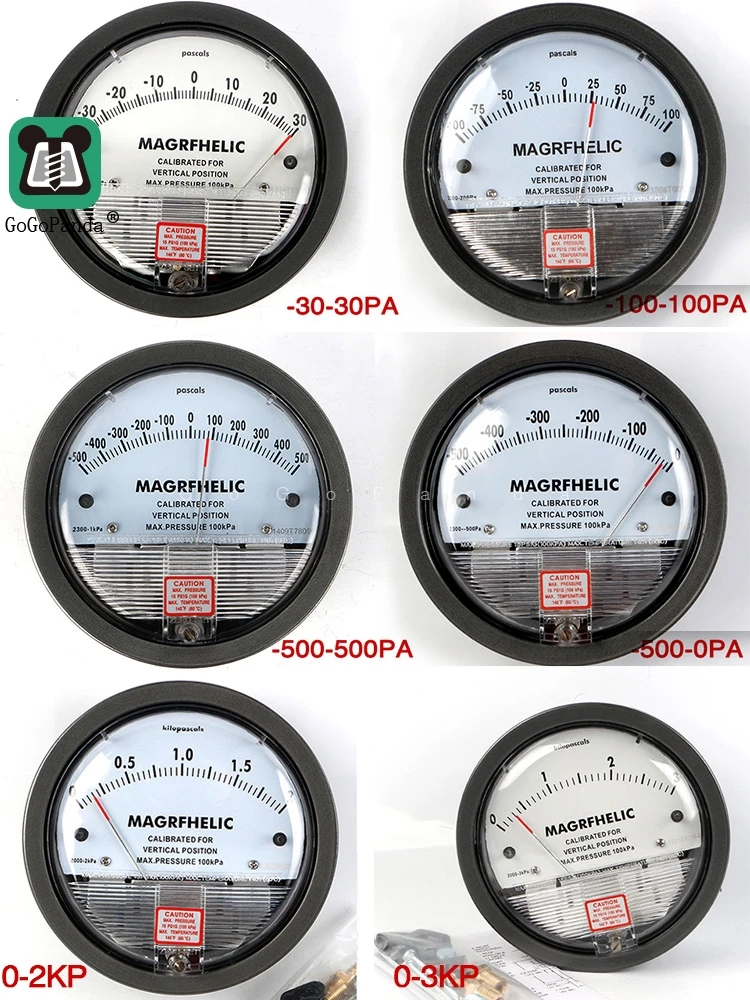

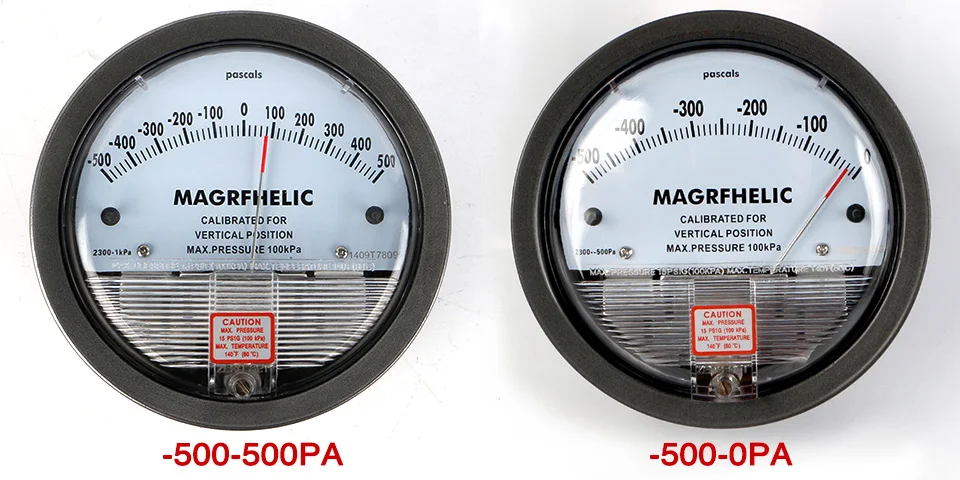

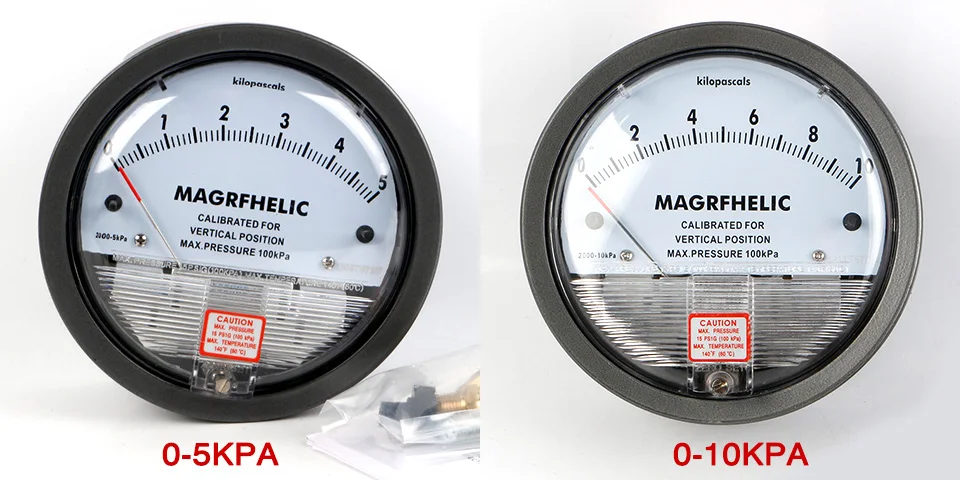

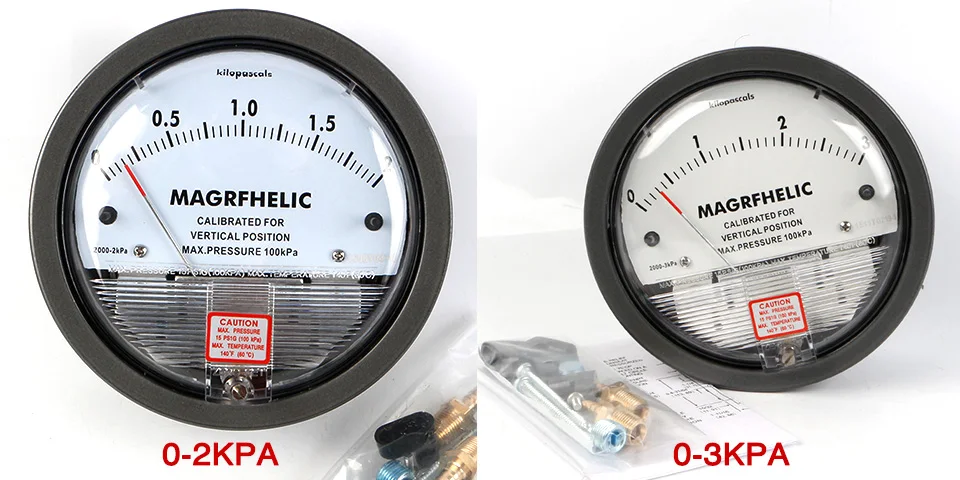

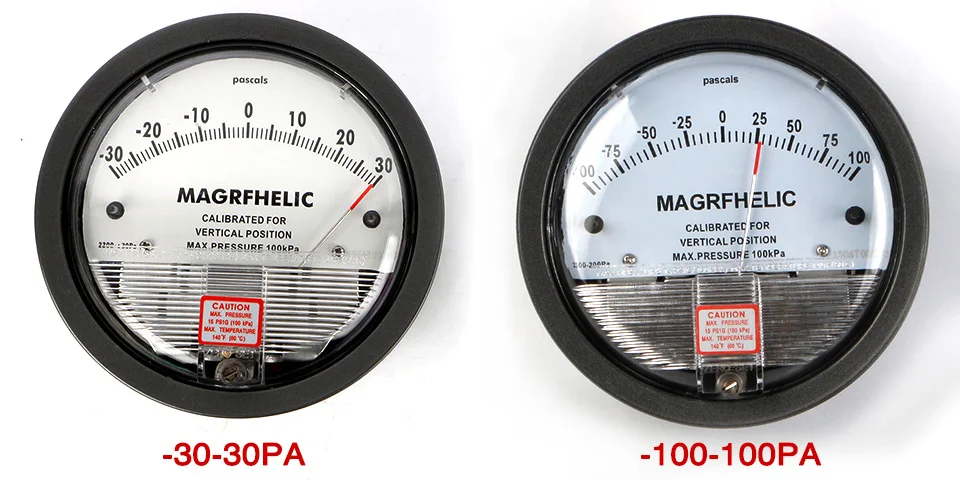

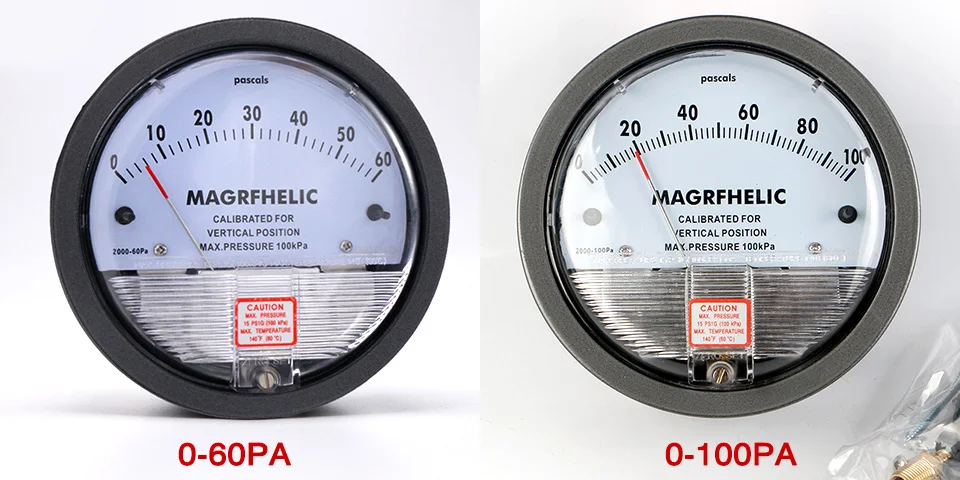

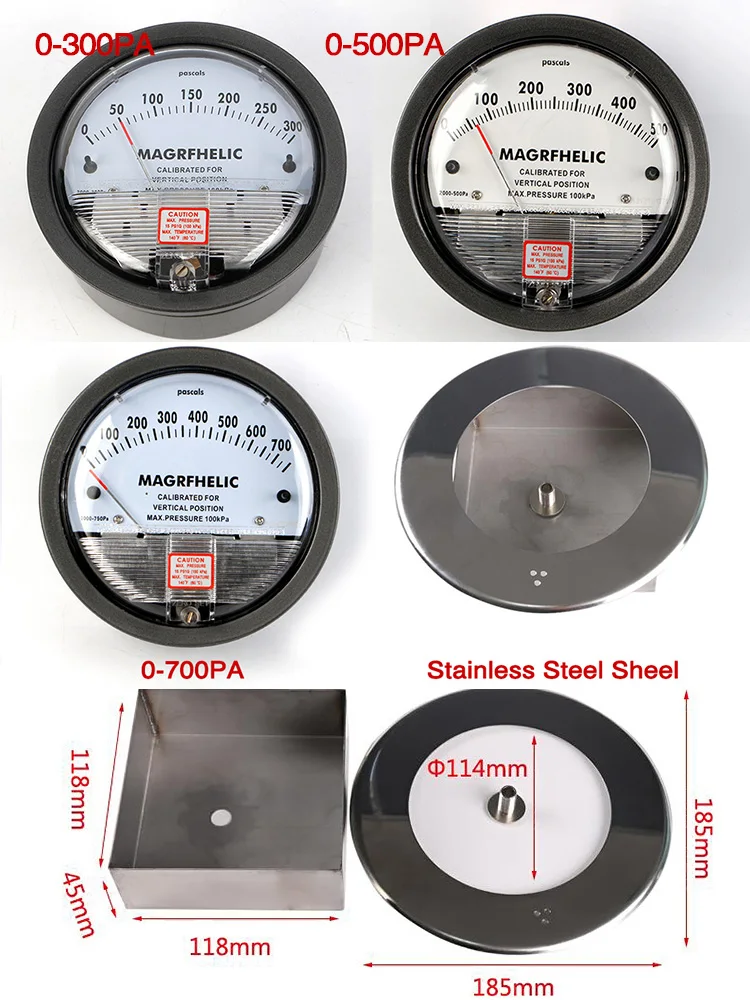

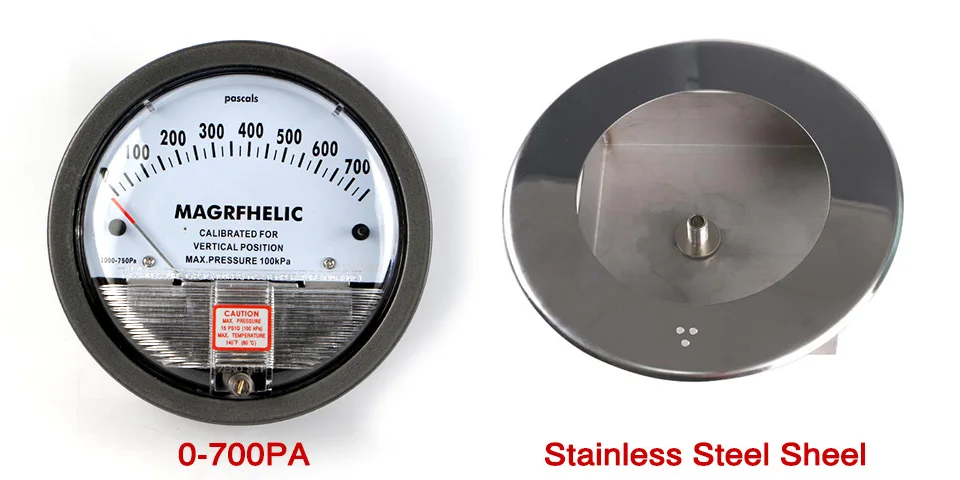

Pressure Range

0-30PA

-30-30PA

0-60PA

-60-60PA

0-100PA

0-125PA

0-250PA

0-300PA

0-500PA

0-750PA

0-1KPA

0-1.5KPA

0-2KPA

0-2.5KPA

0-3KPA

0-5KPA

0-10KPA

Round Shell

Can Customized



 TE2000 Micro Differential Pressure Gauge High Precision Air Differentialvacuum Manometer Micro Measuring Range 0-30PA~0-30KPA



  Production Description GoGoPanda







Specifications

Model:TE2000 Shell Material:Aluminum External Accuracy:+/- 2% FS(21oC) Dimensions:4-3/4" Dia.X2-3/16" Deep Finished:Baked dark gray enamel Pressure Rating:15PSI(1.03bar) Weight:510g           Special Features   GoGoPanda



Overload Pressure

 about 172kpa overvoltage when the rubber stopper has been rushed to open



Process Connection

 1/8" Female NPT high and low pressure taps,duplicated,one pair side and one pair back.

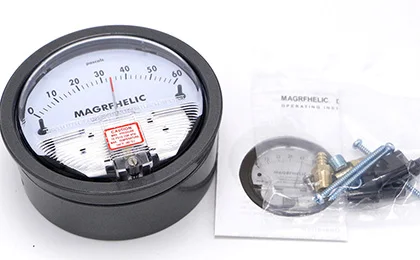

Standard Accessories

  Include two 1/8" male NPT plugs for duplicate pressure taps, two 1/8" male NPT pipe thread to rubber tubing ada[ters, and thress flush ,ounting adapters with screws.

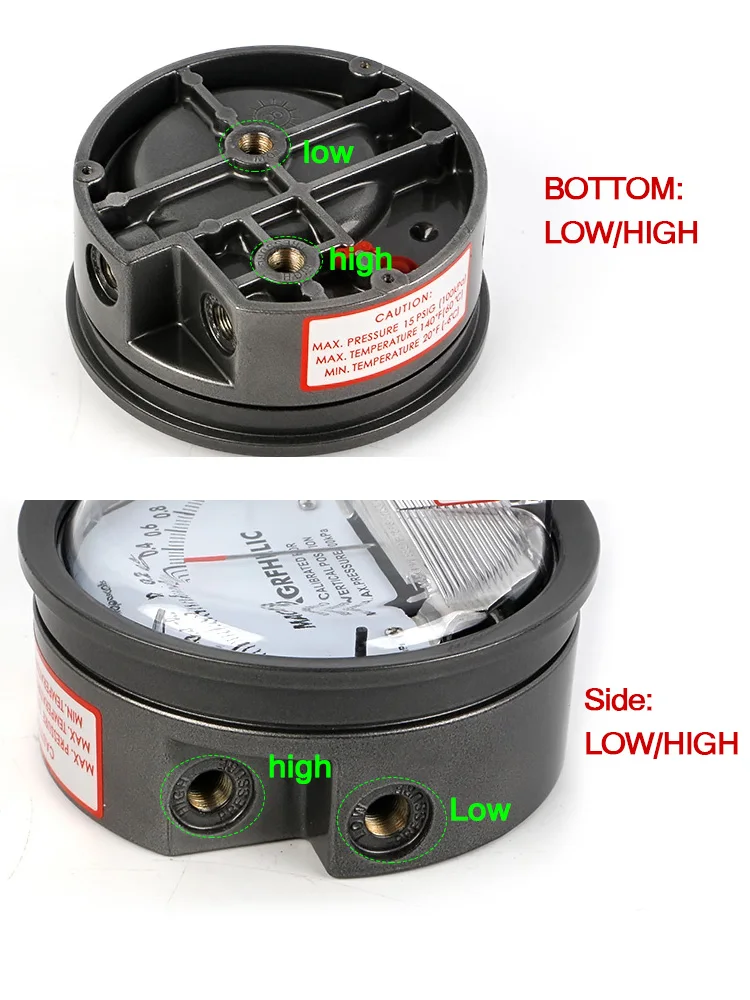

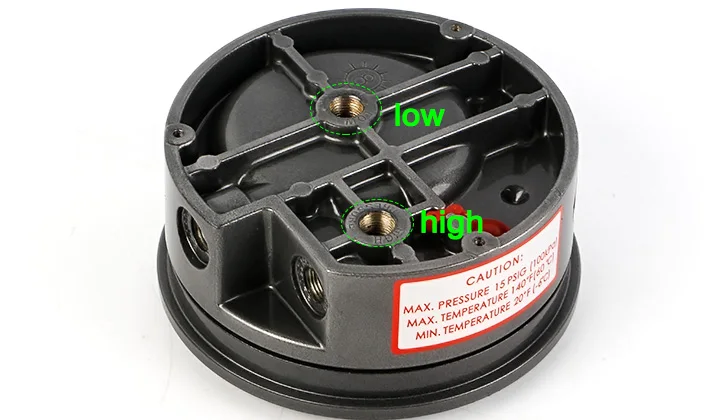

BOTTOM:LOW/HIGH

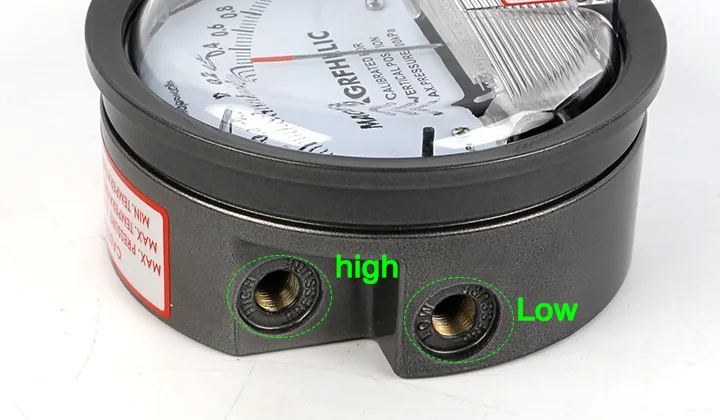

Side:LOW/HIGH

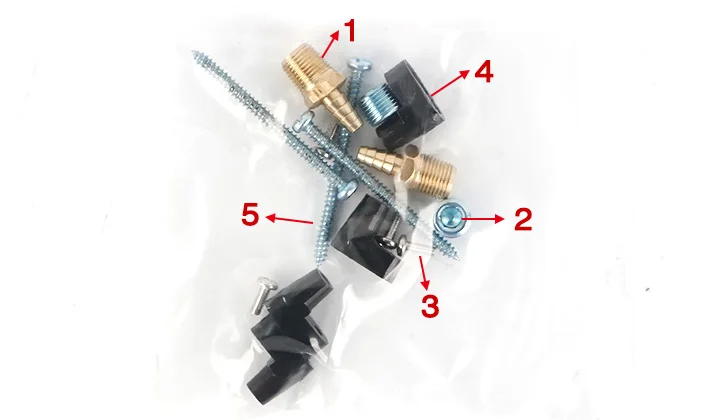

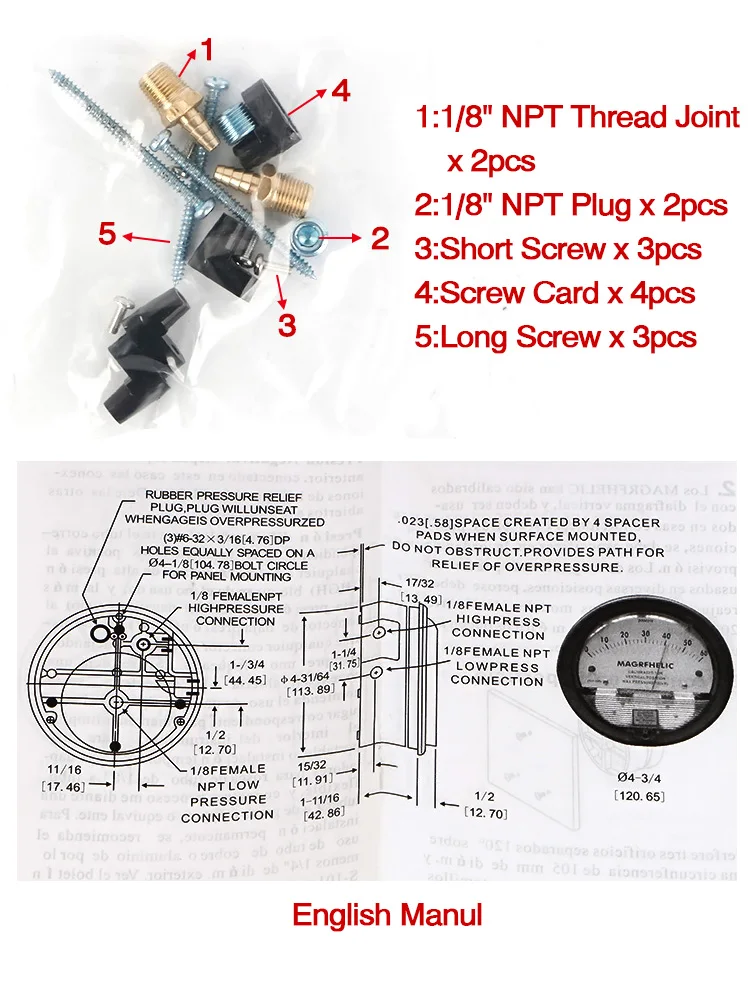

1:1/8" NPT Thread Joint x 2pcs

2:1/8" NPT Plug x 2pcs

3:Short Screw x 3pcs

4:Screw Card x 4pcs

5:Long Screw x 3pcs

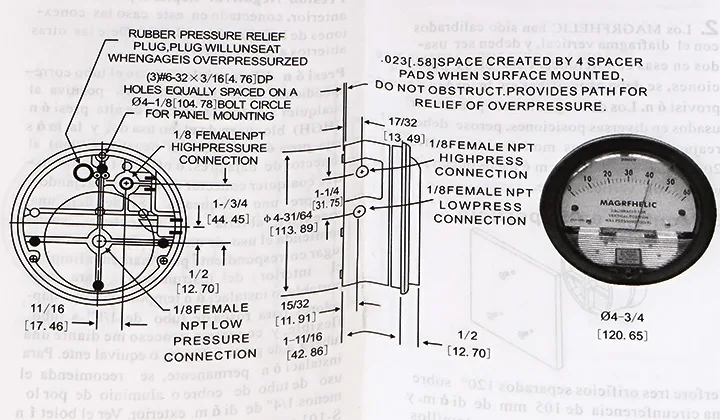

English Manul













Pictures:

 GoGoPanda
