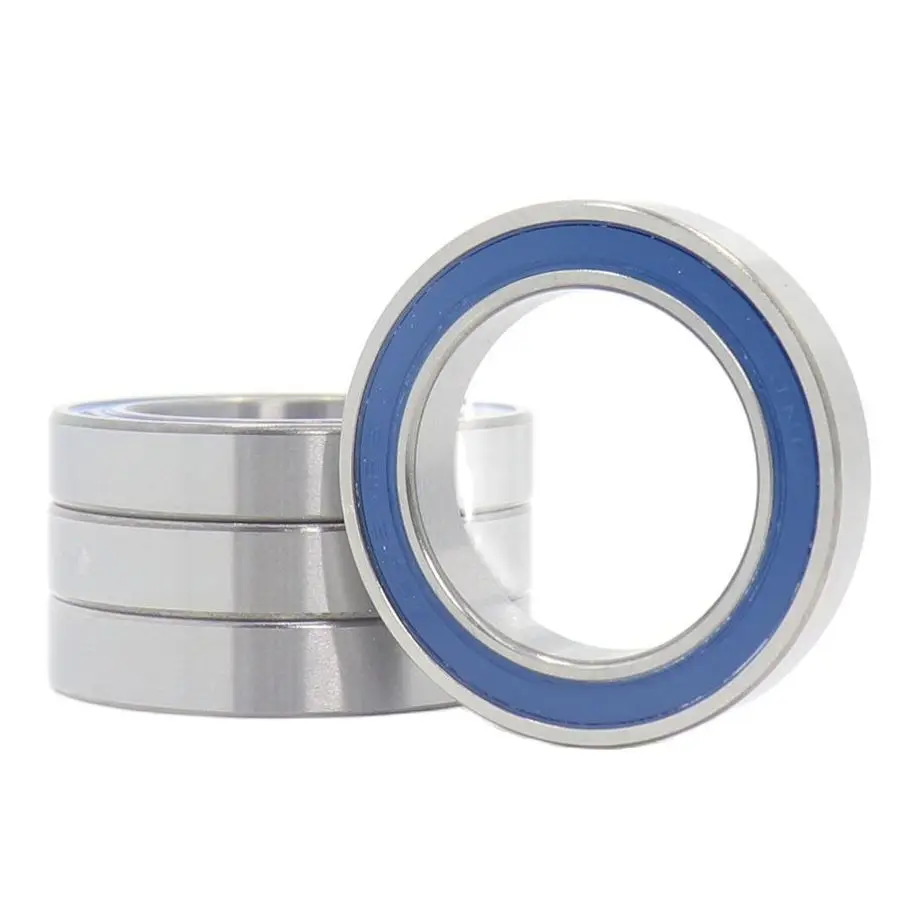

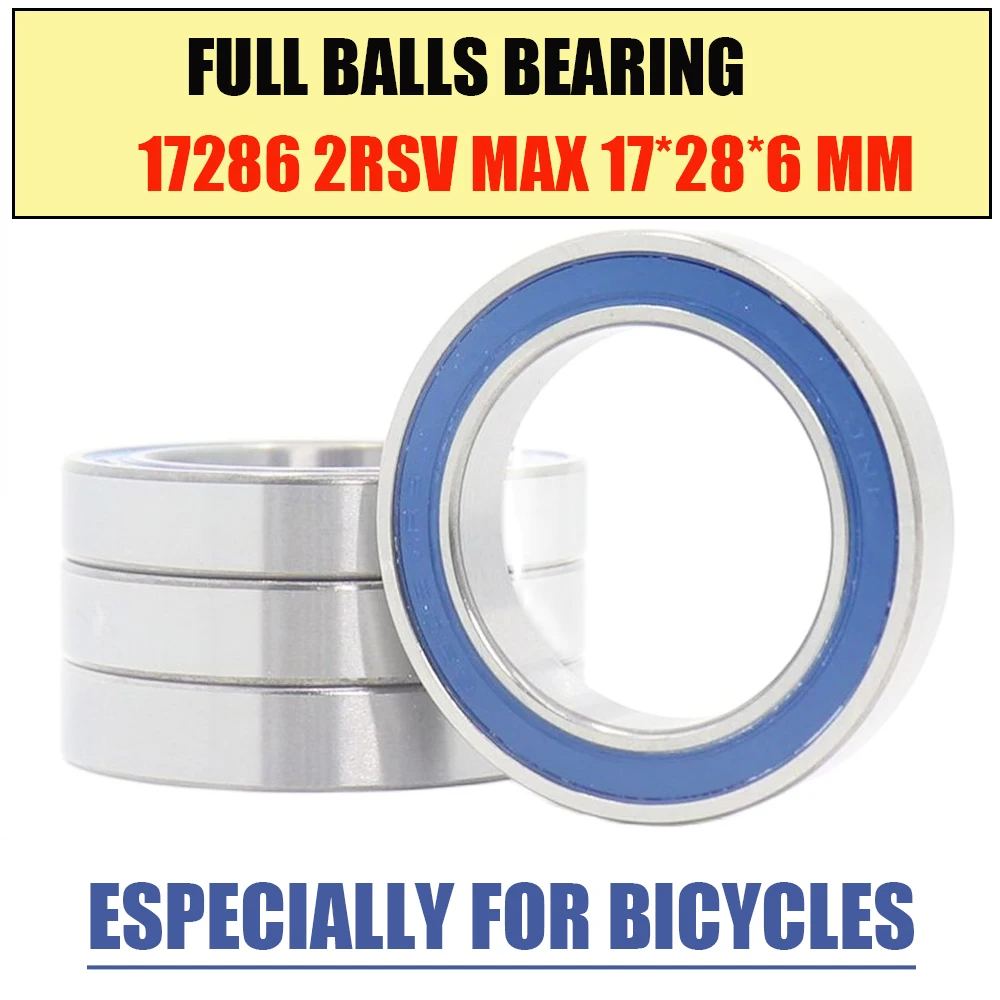

17286 2RSV MAX Bearing 17*28*6mm 4pcs Full Balls Bicycle Pivot Repair Parts 17286-2RS RSV Ball Bearings 17286-2RS

Mechanical Hardware>>>Home Improvement

Brand Name NoEnName_Null

Origin CN(Origin)

Certification RoHS

Model Number 17286-2RSV 17x28x6 mm

Surface Roughness Ra 0.05

WHAT ARE MAX BEARINGS?

Designed specifically for suspension pivots, FUSHI Bearings pioneered MAX type bearings for bicycles to address the challenges associated with mountain bike pivots.These bearings have 35-40% more load capacity than standard radial bearings.We accomplish this with a special design where the maximum number of balls are inserted into the bearing.The race grooves are deeper on these bearings for more lateral support for the twisting and multiple forces associated with mountain bike pivots.LLU seals give maximum protection against the elements, while keeping the 90% fill of Mobil XHP-222 High High Quality Grease inside.

DETAILS

Item: 17286-2RSVClosures: VRS, LLU SealedStructure: MAX, Full Balls, NO Retainer.Dimensions: 17 x 28 x 6 mmID (inner diameter): 17 mmOD (outer diameter): 28 mmWidth: 6 mmQuantity: 1 Lot = 4 PCSVacuum Packaging

Grease

They are characterized by excellent water resistance and load-carrying properties and help provide long-term protection against rust and corrosion.

Bearing Installation and Removal

Bearings should never be installed by pressing on the inner race.Always press on the outer race with a pilot bushing or similar tool, which will only make contact with the metal side of the outer race.A bearing press or similar should be used to exert the force needed to press the bearing into the housing.Ensure that the seating surface is clean and free from rough edges so that they fit true and square.Quite often bearings can feel fine before fitting, but then feel "notchy" or "rough" after fitting. This is almost always due to the bearings not sitting square and true.Care needs to be taken that the bearing is started straight and not at an angle to the housing. Bearing CareTo prolong the life of your bearings, do not direct a high jet of water near areas of your bike where there bearings are located - an ingress of water can lead to premature bearing failure.The material of this bearing is 52100 Chrome steel, Not waterproof.

We provide a variety of pivots bearings, more information please contact us.

1. Why do the bearings I receive have shaking?

The clearance of the bearing is related to the play.The default is the standard C0 clearance, which is usually 3-18um.The corresponding principle is shown in the figure below.If you don't need to shake, please choose C2 small clearance bearing,If you have any questions, please contact us before purchasing.

2. What is the accuracy of ABEC-3?

ABEC is the American ANSI standard.The corresponding German DIN standard and international ISO standard are as follows:
