Wood Routers>>>Tools
Brand Name CRONOS
Origin CN(Origin)
Certification CE
Condition New
Model Number 1M
CNC or Not CNC
Ships From
China
SPAIN
Russian Federation
Color
30W
15W
40W
Added chain, no need to worry about cable when engraving.
The maximum engraving an area to achieve 100* 100CM
Aluminum material, acrylic produced
It can adjust laser power by software

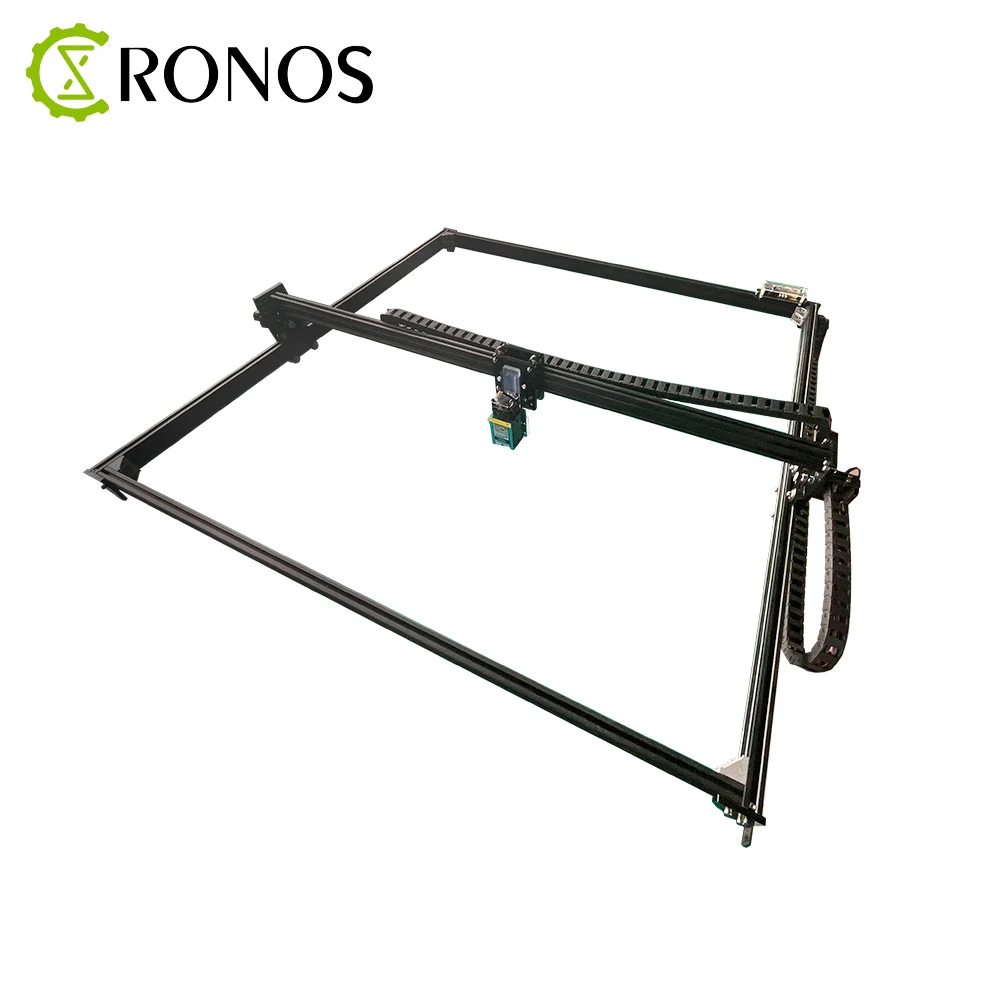

100*100 ultra large engraving area,gantry shape design,no engraving height limitation.
Three stepper motor drive providing faster moving speed.
Engraving power and long-term available.
Can print any pictures easily.
The software can directly import pictures, enter text,support simple dxf file.
Support low light software, software adjust laser power.
Buyers reading:
This machine is a full set of parts, required installed on their own, giving the purchaser to install software and tutorials.
Mode:100*100CM
Power Input：AC100-240V
Sysytem Support;Win XP/7/8/10
Engrave Mode:Photo, Word, Scan, outline, Pixel Laser Engraving
Supported Formats:jpg, bmp, svg, G-code
Material:Stainless Steel and Acrylic
Working Voltage:DC 12V
Working Current:DC 5A
Laser Power:15W/30W/40W(Fixed Focus)
Control Software System :CNC software
Engraving Area:100x100cm / 39.37 x 39.37inch (maximum)

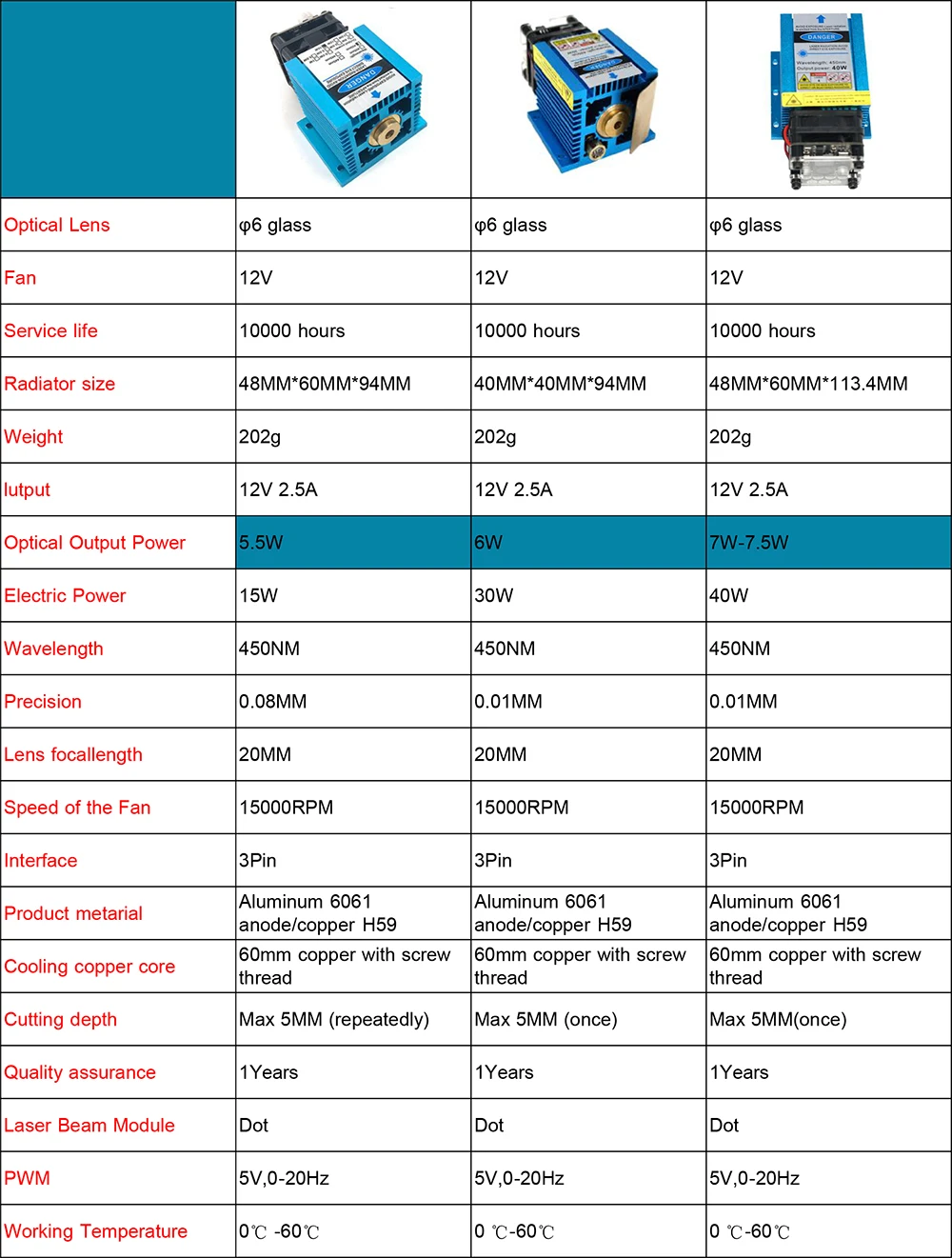

15W Fixed Laser :
Optical Lens:φ6 glass
Fan:12V
Service life:10000 hours
Radiator size:48MM*60MM*94MM
Weight:202g
lutput:12V 2.5A
Optical Output Power:5W
Electric Power:15W
Wavelength:450NM
Precision:0.01MM
Lens focallength:20MM
Speed of the Fan:15000RPM
Interface:3Pin
Product metarial:Aluminum 6061 anode/copper H59
Cooling copper core:60mm copper with screw thread
Cutting depth:Max 5MM (repeatedly)
Quality assurance:1Years
Laser Beam Module:Dot
PWM:5V,0-20Hz
Working Temperature:0℃ -60℃
30W Fixed Laser :
Optical Lens:φ6 glass
Fan:12V
Service life:10000 hours
Radiator size:40MM*40MM*70MM
Weight:202g
lutput:12V 2.5A
Optical Output Power:6W
Electric Power:30W
Wavelength:445NM
Precision:0.01MM
Lens focallength:20MM
Speed of the Fan:15000RPM
Interface:3Pin
Product metarial:Aluminum 6061 anode/copper H59
Cooling copper core:60mm copper with screw thread
Cutting depth:Max 5MM (once)
Quality assurance:1Years
Laser Beam Module:Dot
PWM:5V,0-20Hz
Working Temperature:0 ℃-60℃
40W Fixed Laser :
Optical Lens:φ6 glass
Fan:12V
Service life:10000 hours
Radiator size:48MM*60MM*94MM
Weight:202g
lutput:12V 2.5A
Optical Output Power:7W-7.5W
Electric Power:40W
Wavelength:450NM
Precision:0.01MM
Lens focallength:20MM
Speed of the Fan:15000RPM
Interface:3Pin
Product metarial:Aluminum 6061 anode/copper H59
Cooling copper core:60mm copper with screw thread
Cutting depth:Max 5MM(once)
Quality assurance:1Years
Laser Beam Module:Dot
PWM:5V,0-20Hz
Working Temperature:0 ℃-60℃
Engraving distance 2cm

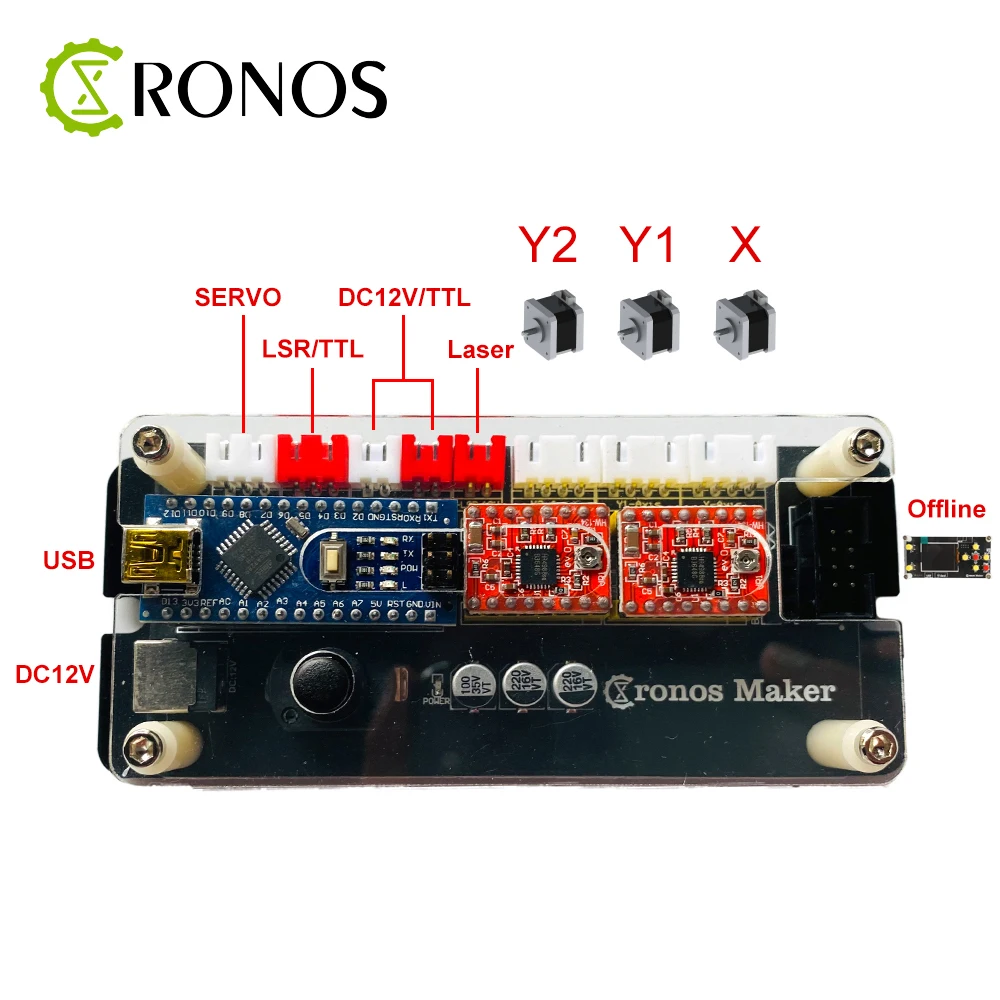

GRBL1.1 2 axis control board,Can connect 3pin or 2pin laser module,and offline
Free software:
