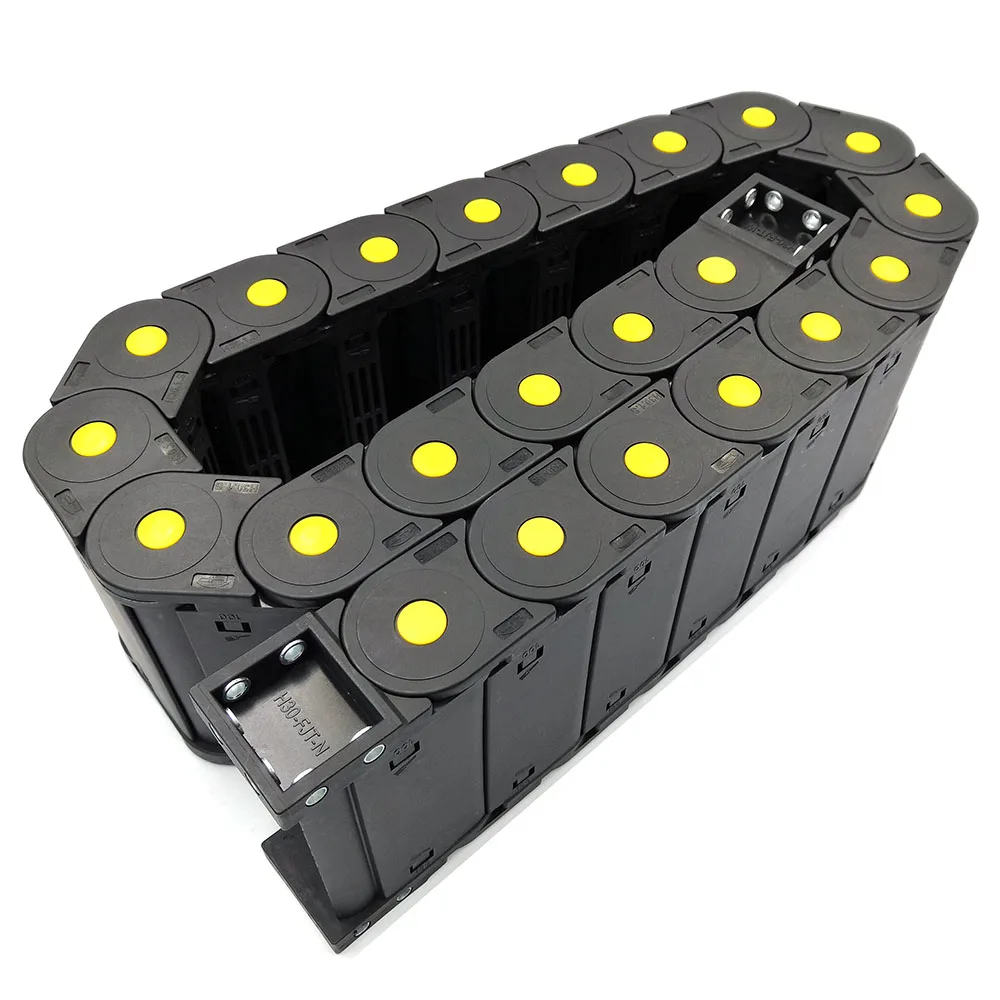

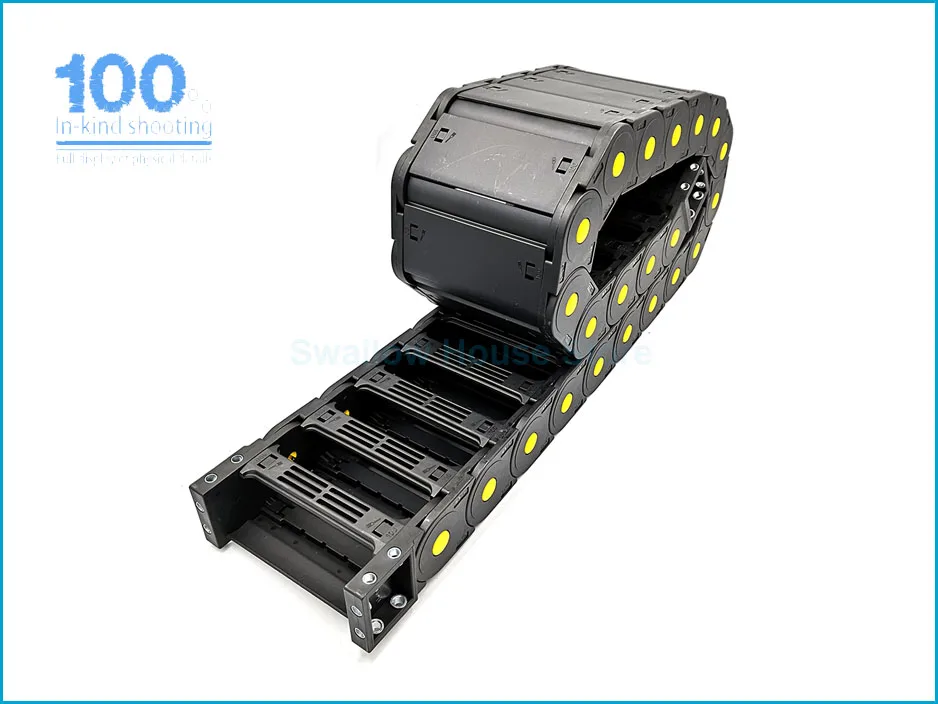

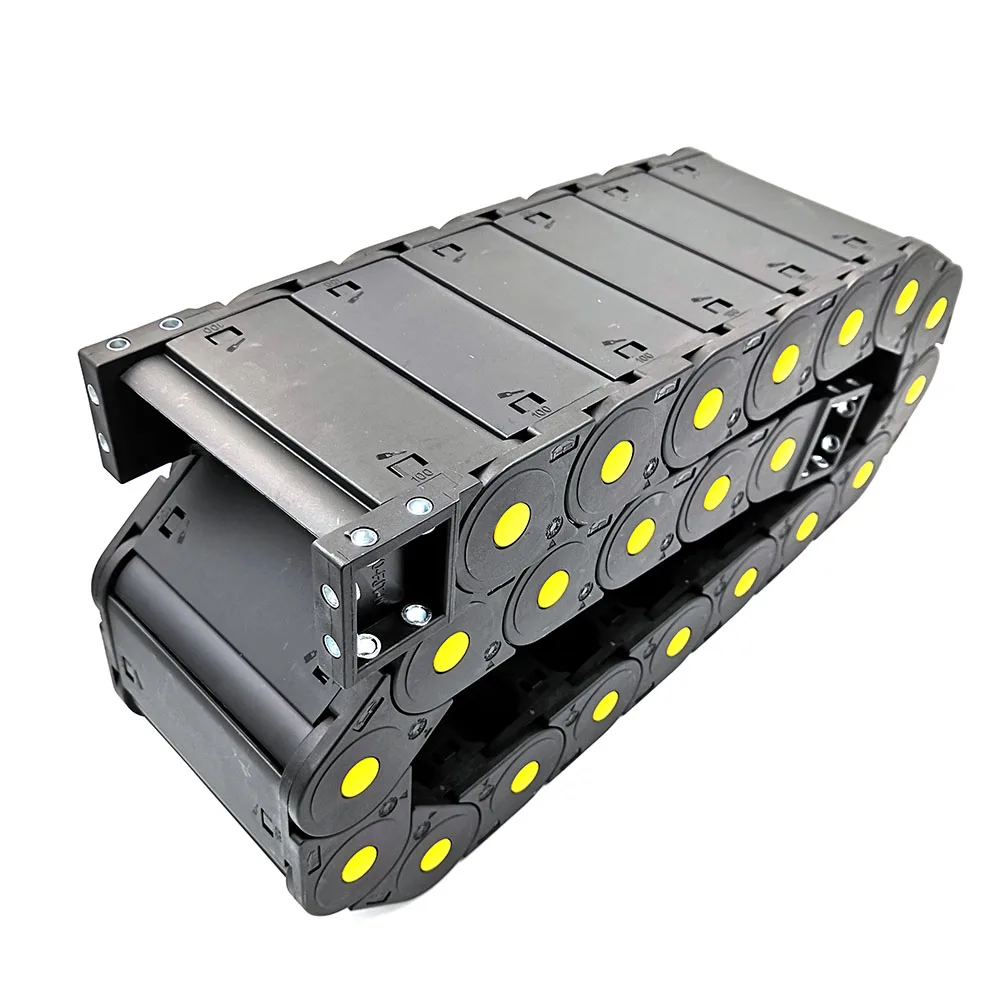

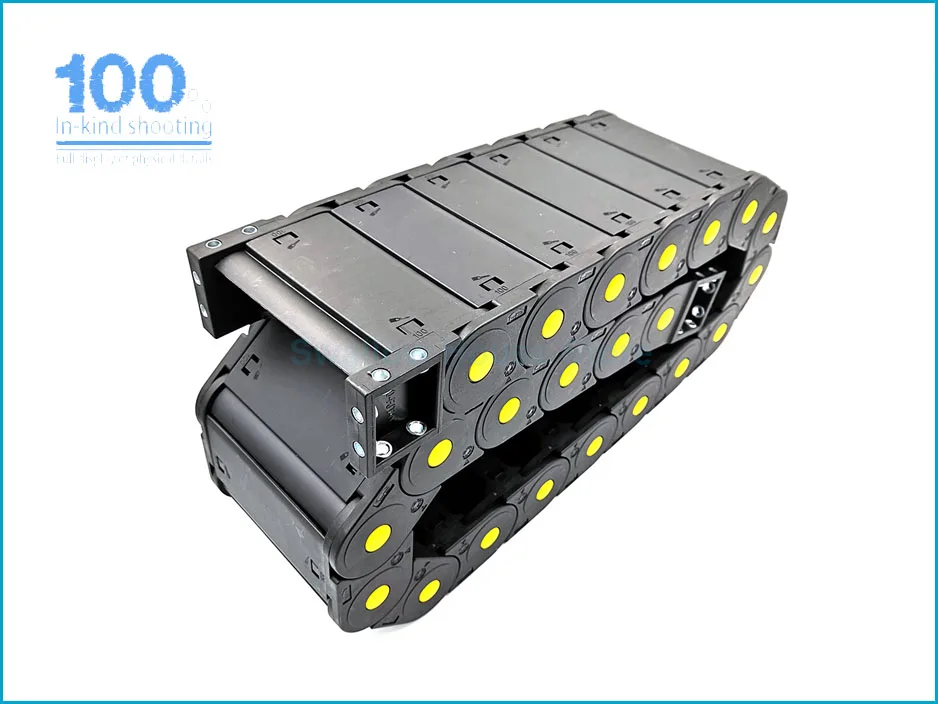

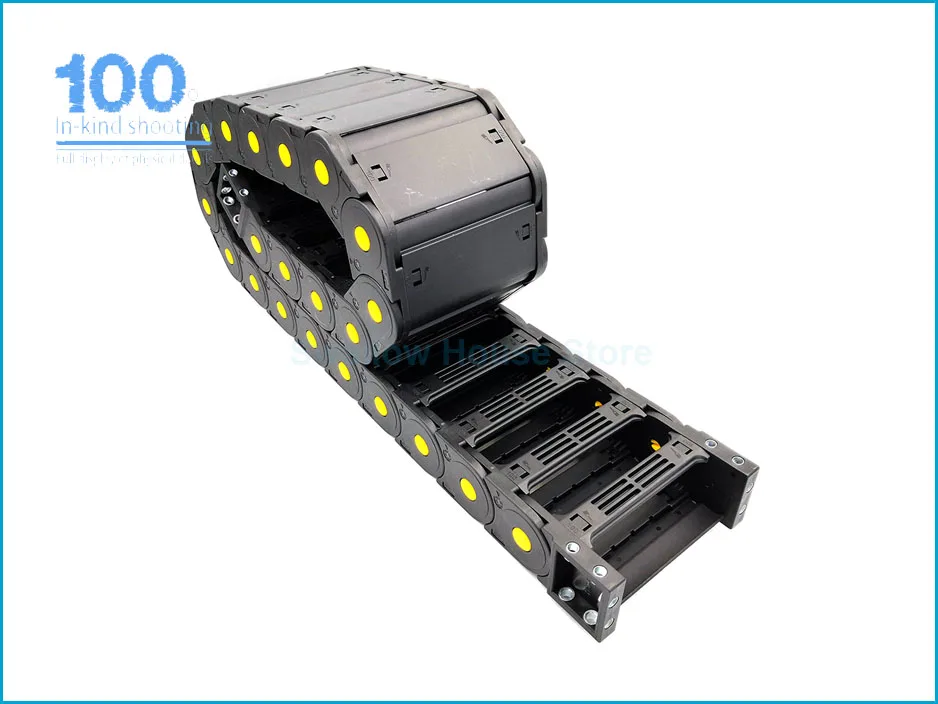

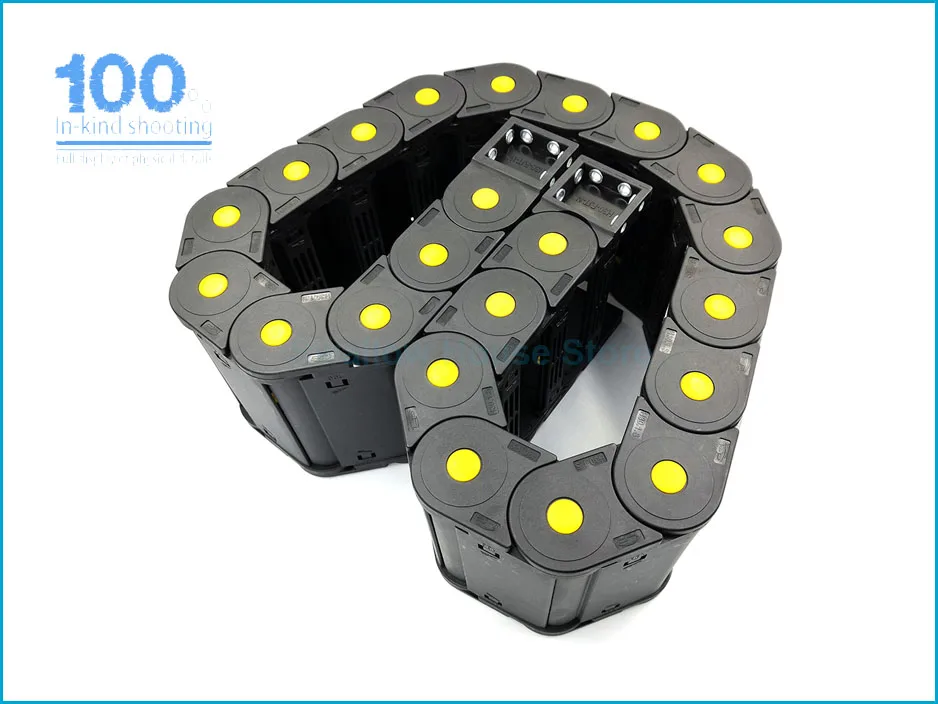

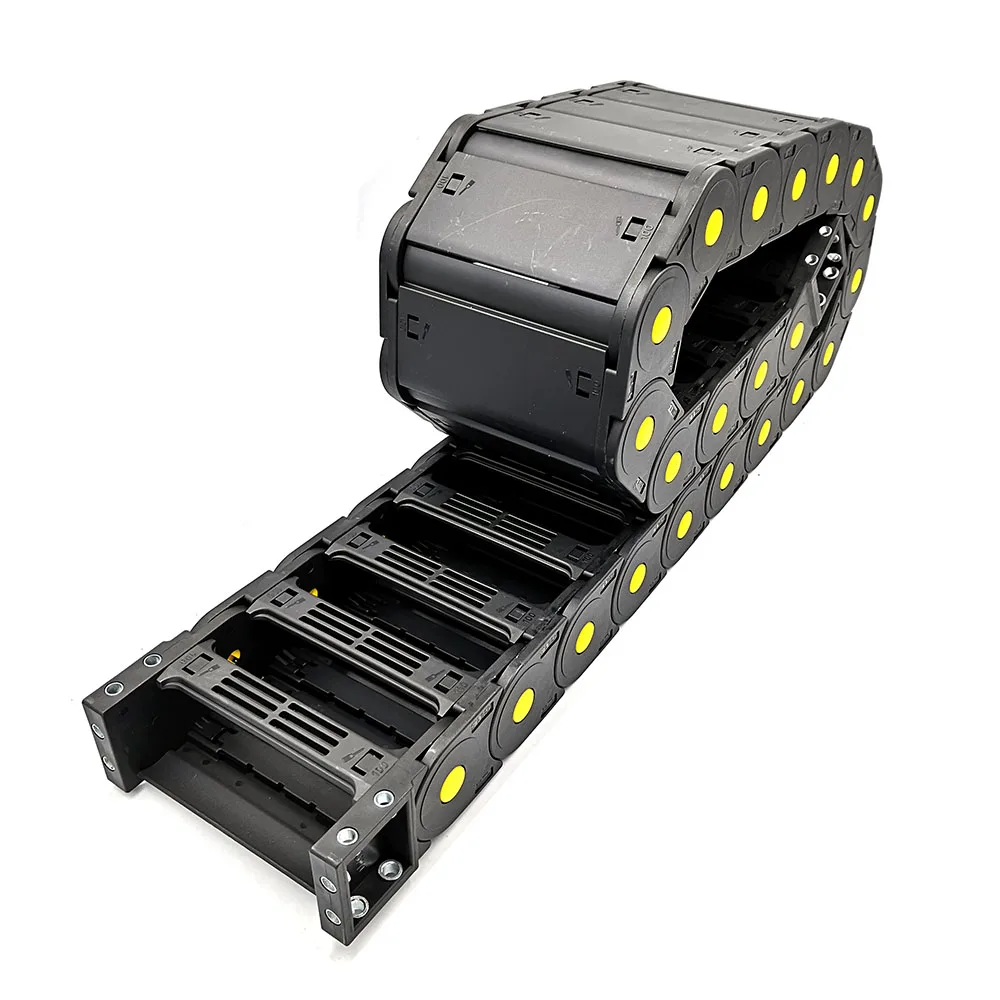

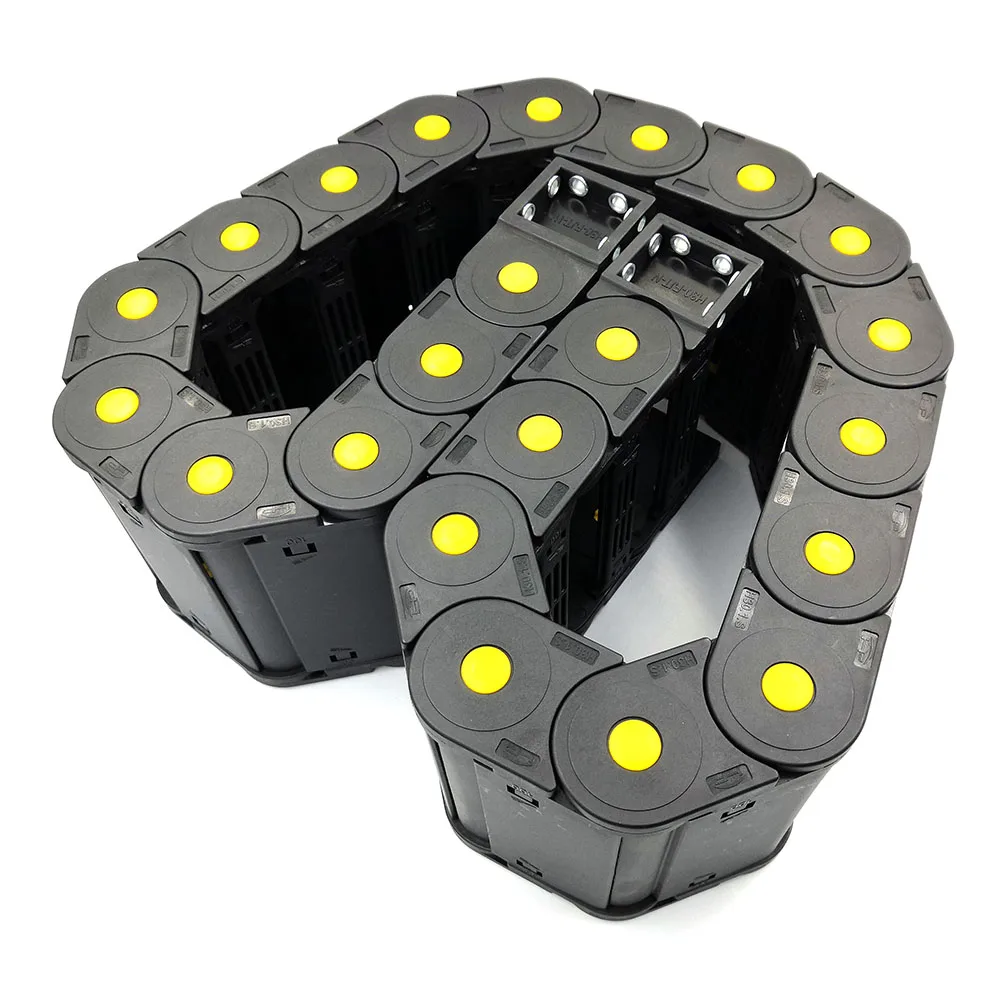

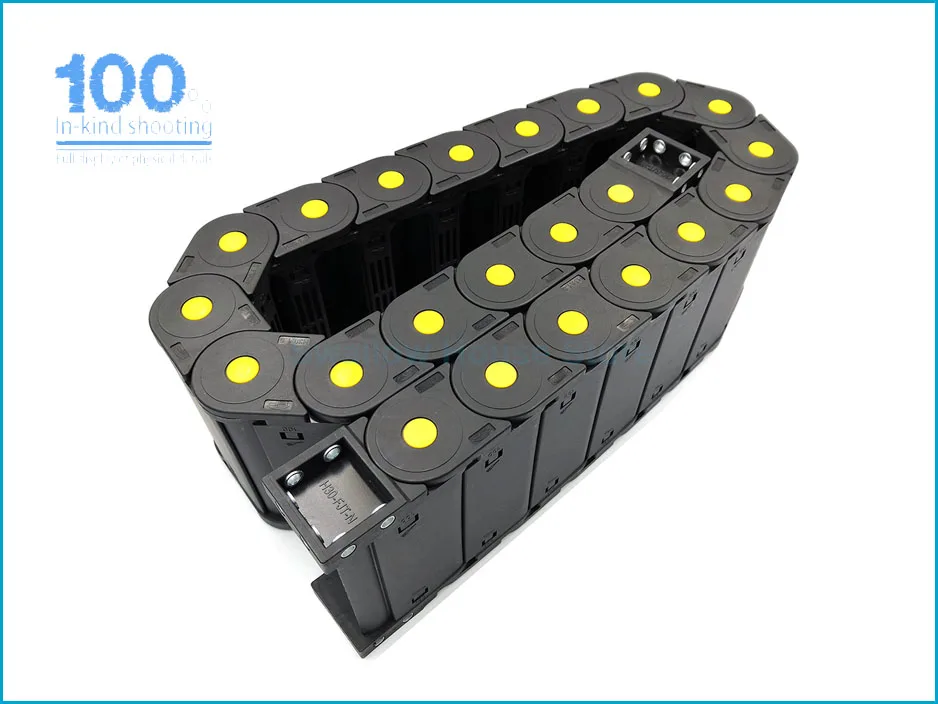

JFLO 30x100mm 1 Meter Towline Transmission Nylon Drag Chain Wire Carrier Cable Semi-enclosed Interior Opening Free Shipping

Power Transmission>>>Home Improvement

Certification RoHS

Origin CN(Origin)

Type Leaf Chain

Tensile Strength 1178kg/cm2

Material plastic

Model Number HP-30X100-BF

Standard or Nonstandard Standard

Inner high * inner width 30x100mm

Outer high * outer width 45*124mm

Pitch 46mm

Bending radius R55/R75/R100/R125/R150

Material PA66

Structure Semi-enclosed interior opening

Pore size 4.3mm

is_customized Yes

Products Status Stock

Inner Size

30x100 mm

Outer Size

45x124 mm

Bending Radius

R75

R100

R55

R125

R150

JFLO 30x100 Reinforced nylon drag chain Semi-enclosed type interior openingengineering nylon towline cable protection chain drag chain tank chain Free shipping

Package Included:Drag chain X1 Meter (Include the end connectors)

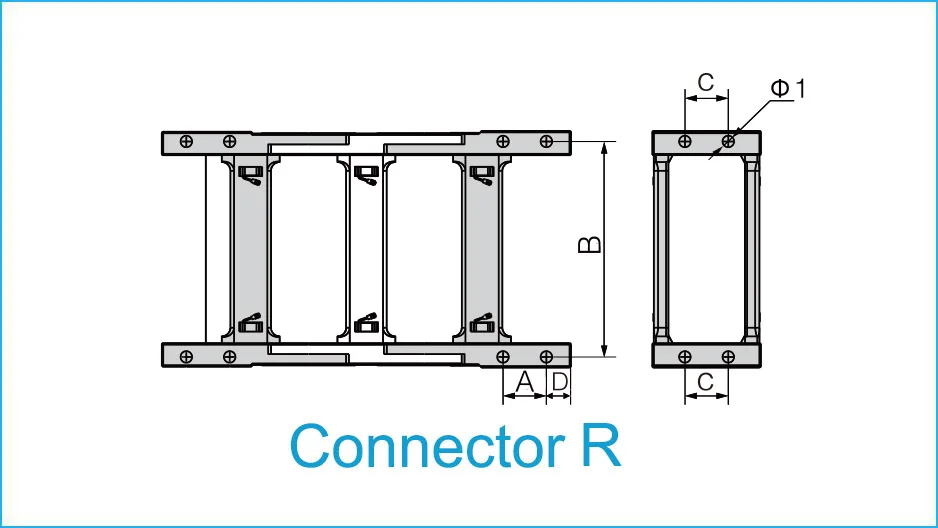

The length of the chain can be customized, and Large quantity enjoy more discounts. Welcome to contact us.Remark:If you need more matching connectors separately. Please click here to purchase. JFLO-H30x100-BFN-JT

 Uses and Features:

1) Suitable for use in a reciprocating motion of the occasion, can be built-in cable, tubing, pipe,plumbing, etc. play traction and protection.

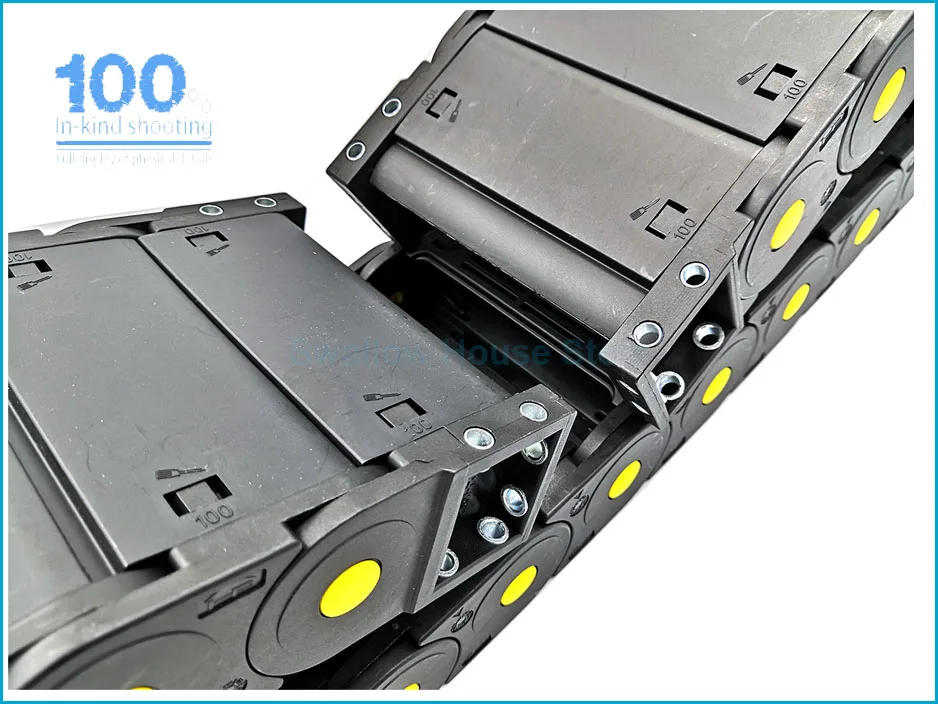

2) Each section towline can open, easy installation and maintenance. Exercise low noise, wear-resistant, high-speed movement.

3) The towline has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, doors and windows machinery, injection molding machines, robots, overweight transportation equipment, automated warehouses.

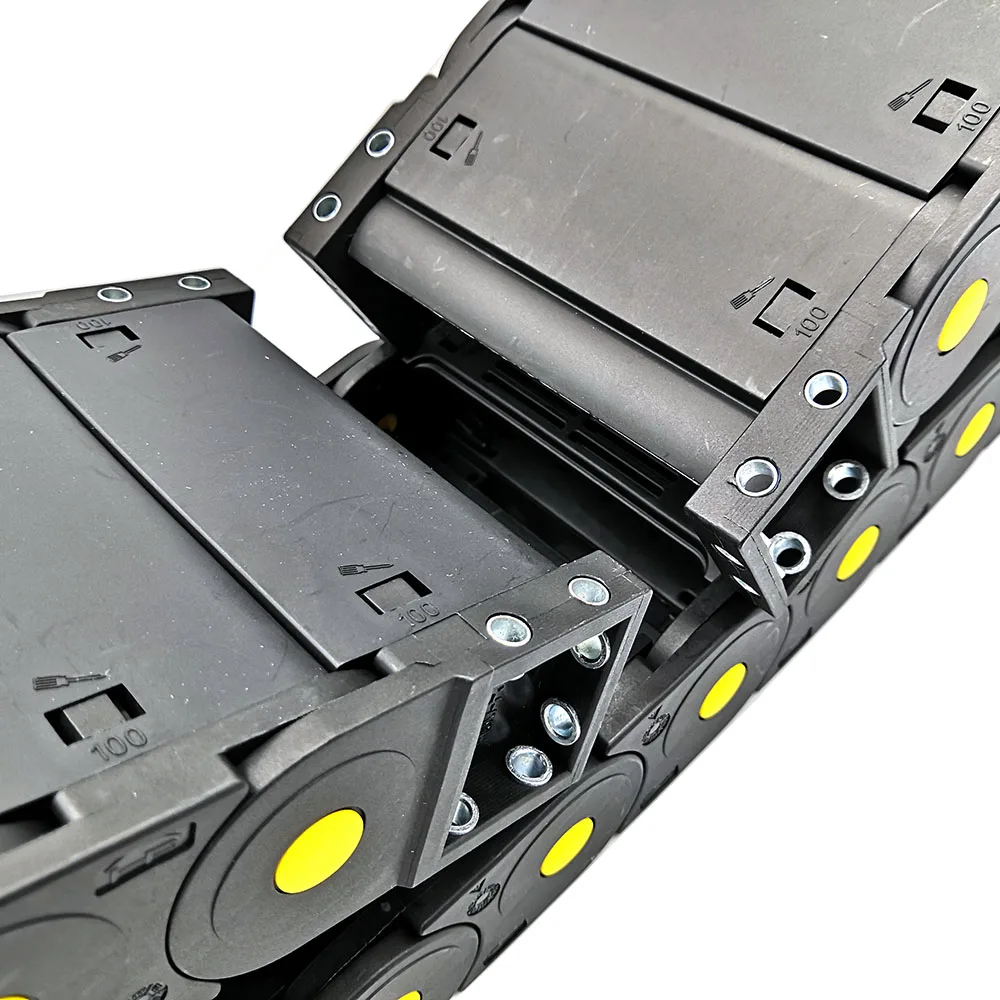

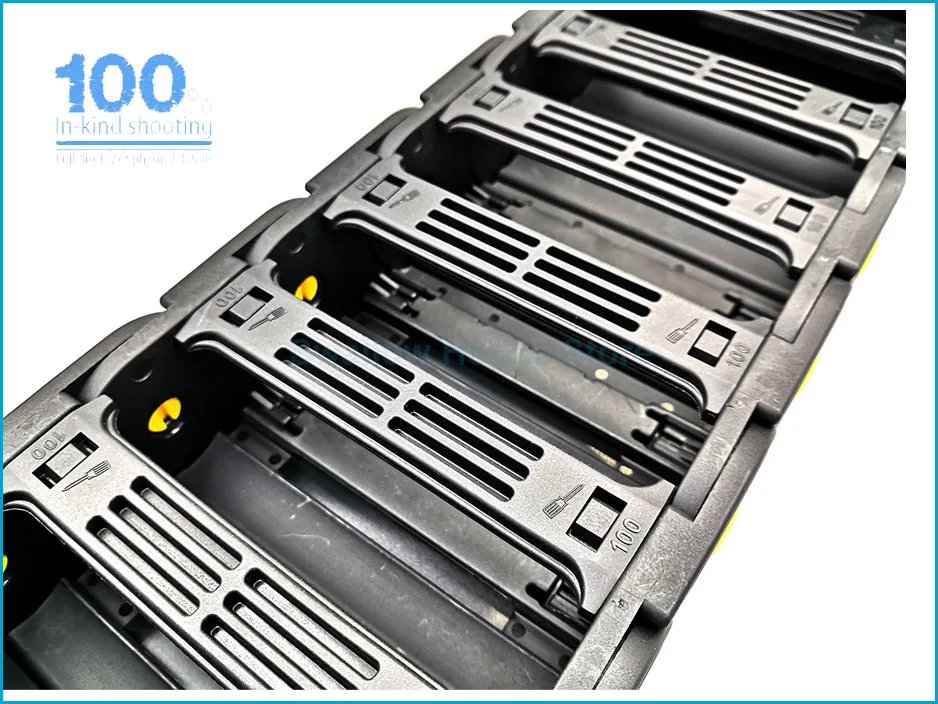

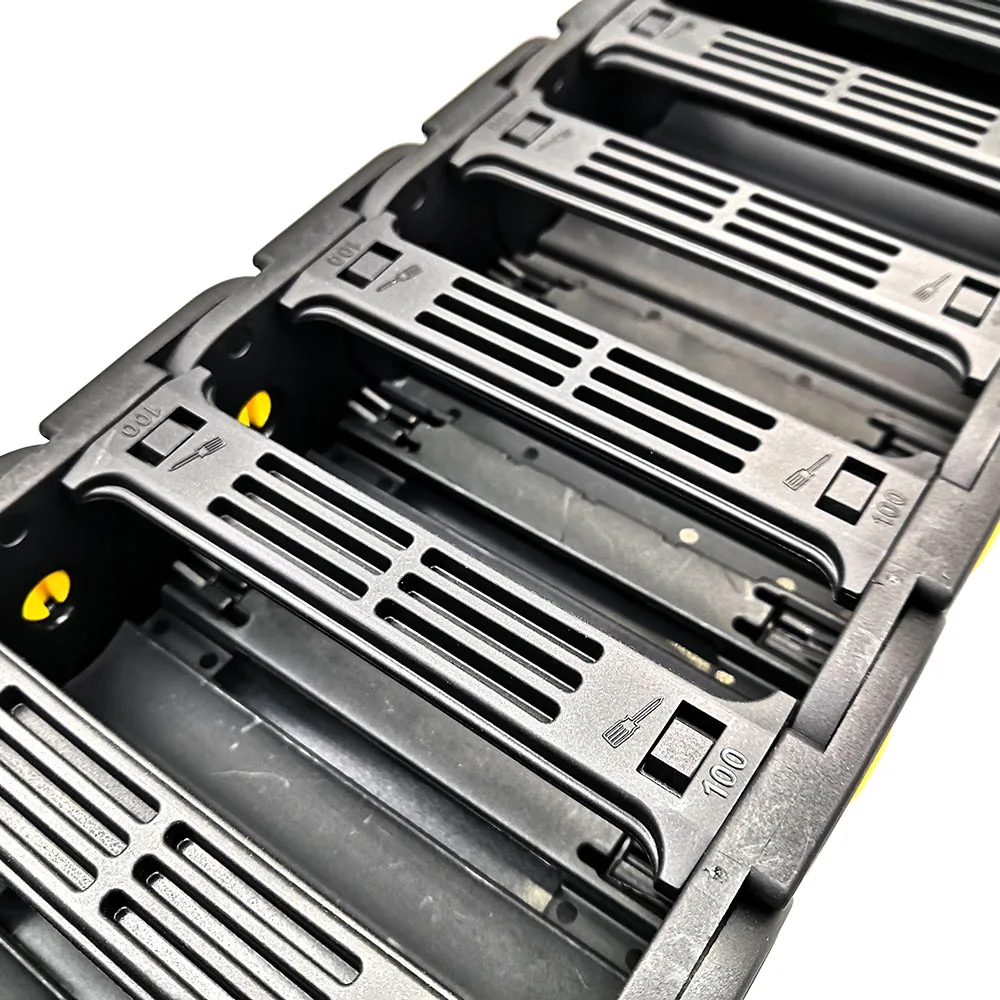

 Plastic towline structure:1) The towline shape like tanks chain, composed by a large number of unit links between the rotating freely link. 2) Within the same series of towline high, outside the high, the same pitch, towline in width, bend radius R may have a different choice.3) Unit chain around the chain plate and the upper and lower cover composition, towline can open each section, easy assembly and disassembly without threading, to the cable, tubing, pipe, pipe, etc. into the towline after opening the cover.4) Also available separators, the chain separated by space as needed. Towline selection of main parameters: Within high: Select built-in cable, tubing, pipe, pipe, etc. As one of the most coarse reference height,plus at least 10% of the height of the space within the towline as high. If the overlap by overlapping the actual height as the reference height. Wide: Choose thicker some cables, tubing, pipe, water pipes, with its outer diameter and as the towline wide reference, and stay at least 10% of the width of the space. Bending radius R: choose built-in cable, tubing, pipe, pipe, etc. The maximum bending radius as a reference value, and left more than 10 percent of the space. Use towline length = R + 0.5R + stroke / 2 After bending towline total height = 2R + external highTowline place principles:Should leave 15% of the remaining space for built-in cable, tubing, etc., may move freely in the radial direction of the towline does not produce tension. Larger diameter difference between the wire should be laid separately, weight distribution, if necessary, be separated by the dividing sheet.In the high-speed or high-frequency operation, to try to make the wires apart from each other on a level, do not make it mutually stacked more time in the cable, pipe, tubing, etc. is recommended to use separators.We accept the payment methods provided by AliExpress Escrow.All major credit cards are accepted through secure payment processor Escrow.
