Nema 23 Planetary Gearbox 57mm Motor Reducer Ratio 4 5 10 16 20~50:1 Motor Gear for Nema23 57mm Stepper Motor 4000rpm

Motors & Parts>>>Home Improvement

Brand Name YUN DUAN

Origin CN(Origin)

Certification CCC

Commutation Brush

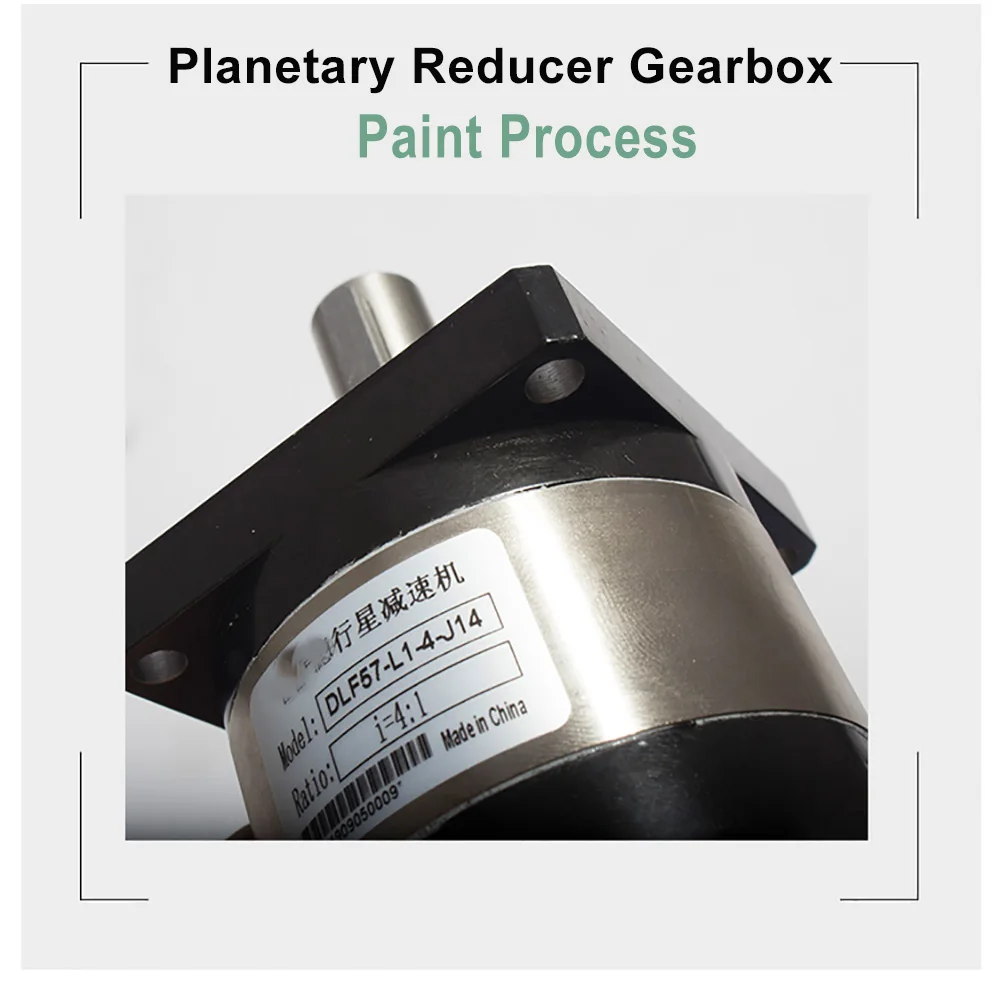

Model Number DLF57-L1/L2-6.35-38.1-47.14

Type Gear Motor

Protect Feature waterproof

Construction gearbox

Torque 16Nm

Efficiency IE 1

Input Shaft 6.35mm/8mm

Output Shaft 14mm

Max input speed 4000rpm

Rated input speed 3000rpm

Speed(RPM)

Ratio 4 to 1

Ratio 5 to 1

Ratio 10 to 1

Ratio 20 to 1

Ratio 25 to 1

Ratio 40 to 1

Ratio 50 to 1

Voltage(V)

6.35mm input

8mm input

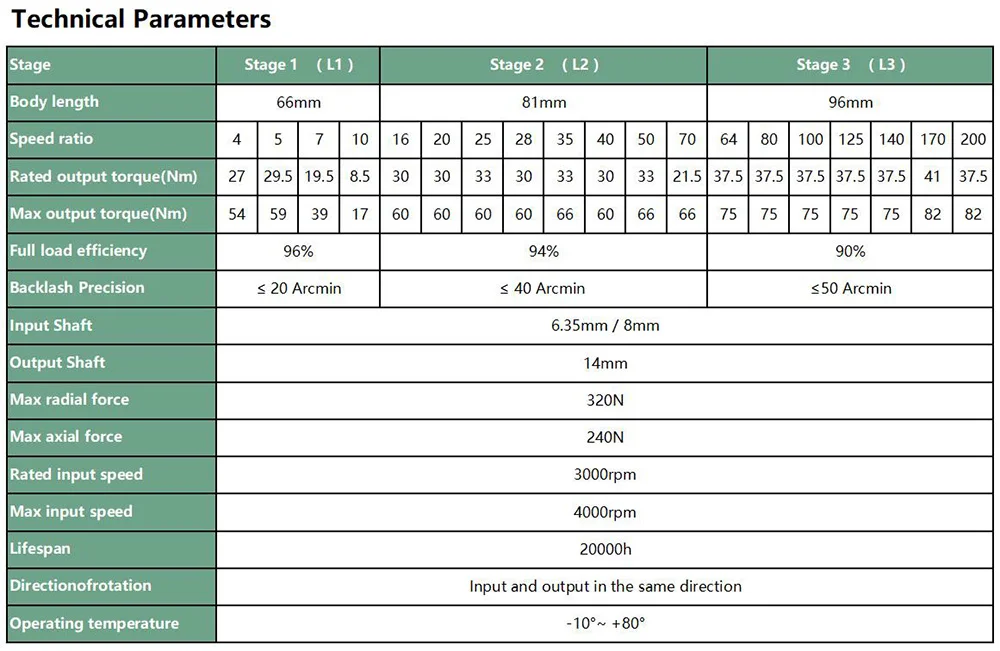

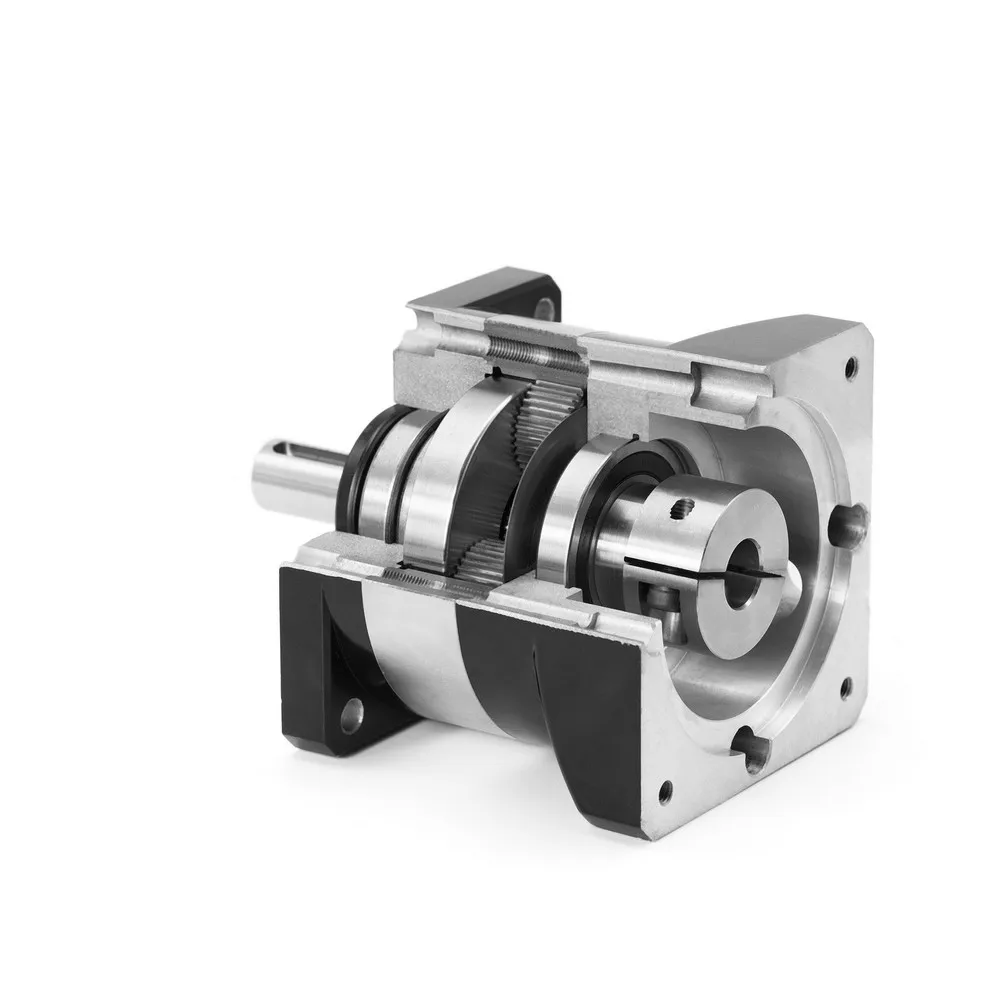

  Reducer parameters

Speed Ratio:

1Stage (L1):  4:1 / 5:1 / 7:1 / 10:1

2Stage (L2):  16:1 / 20:1 / 25:1 / 35:1 / 40:1 / 50:1 / 70:1

Input Shaft:  6.35mm(1/4 inch) / 8mm

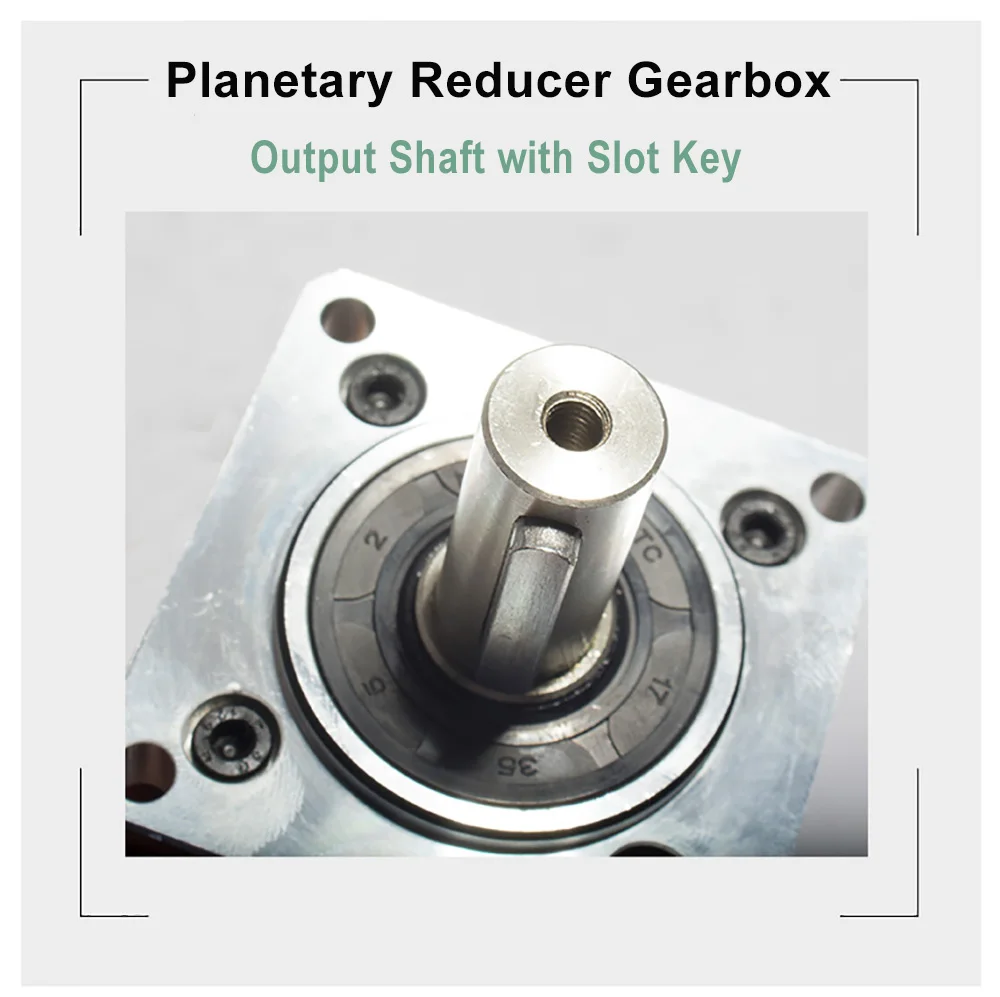

Output Shaft: 14mm

Rated output torque:

8Nm (10:1) ;

19Nm (7:1) ;

27Nm (4:1) ;

29Nm (5:1) ;

30Nm (16:1 / 20:1 / 40:1);

33Nm ( 25:1 / 35:1 / 50:1)

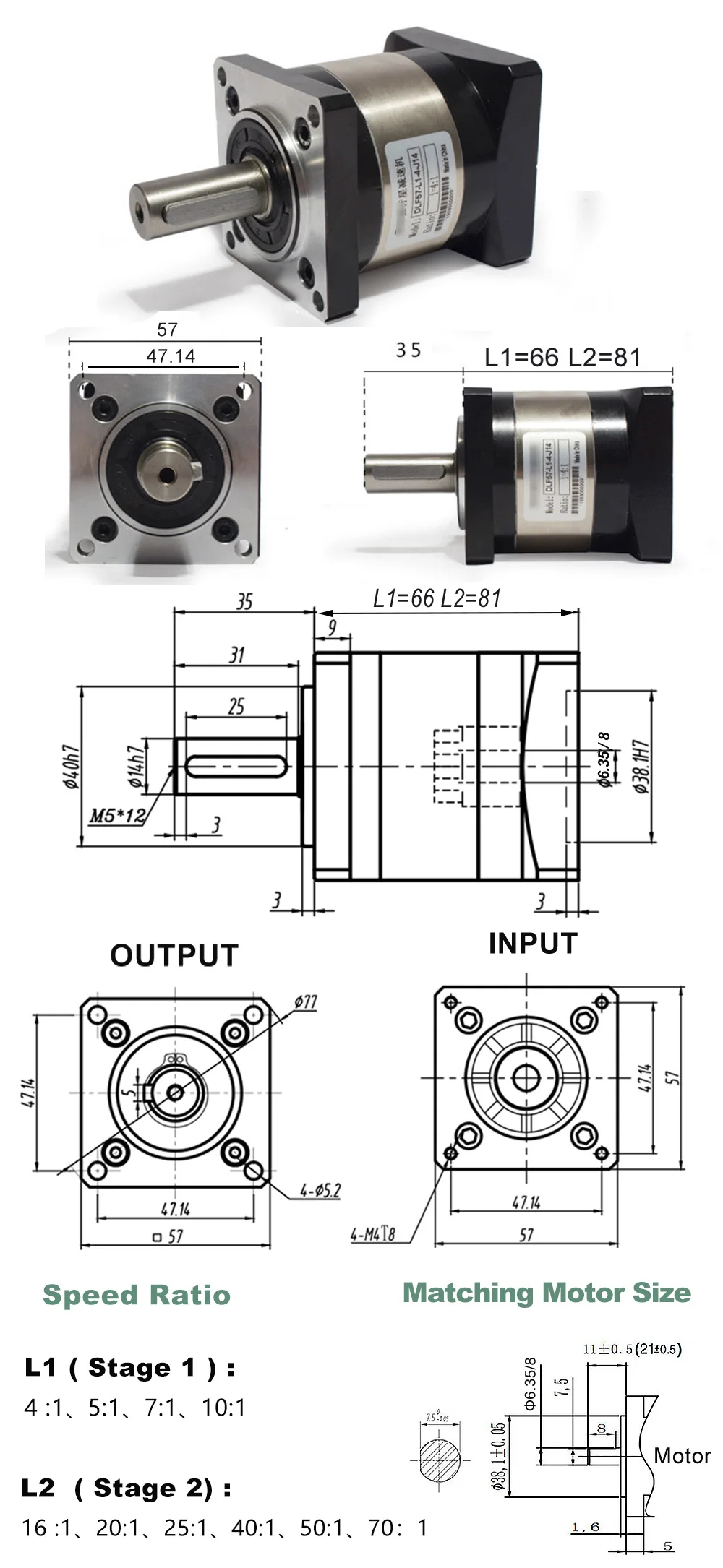

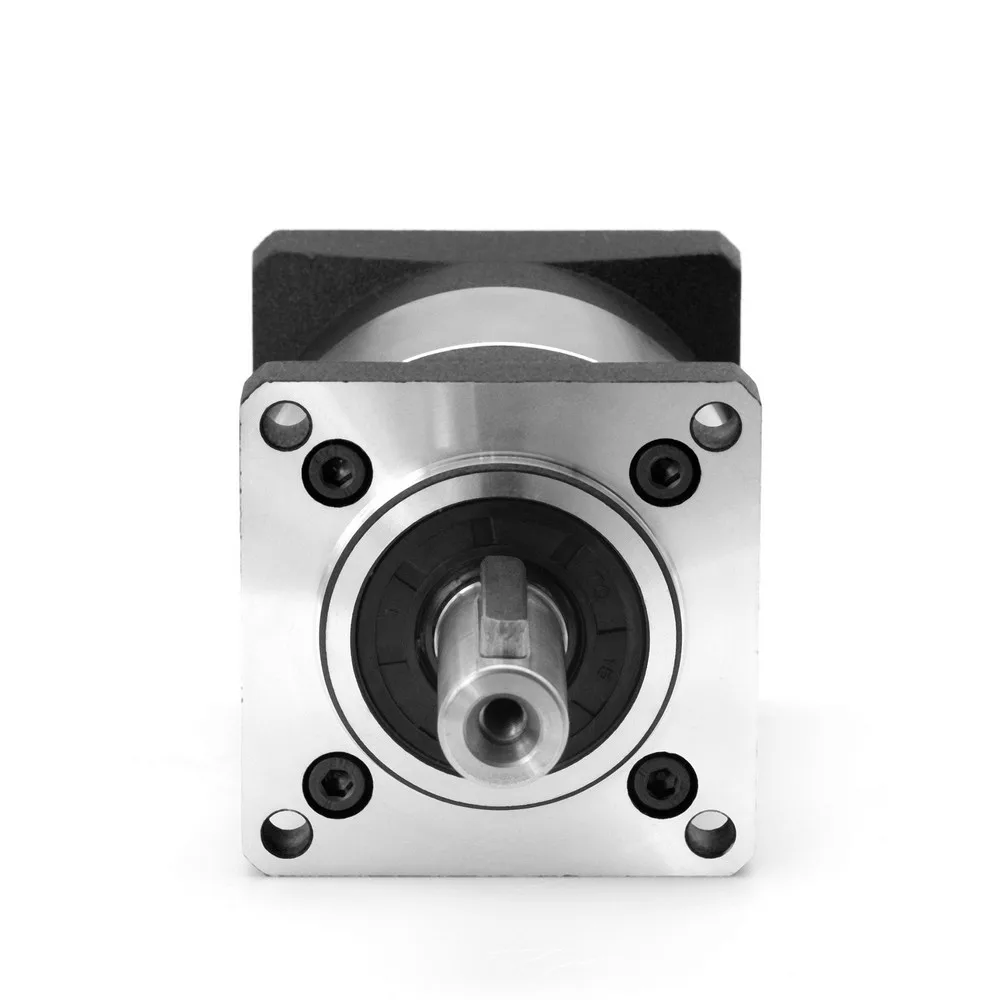

Body length: L1=66mm, L2=81mm

Full load efficiency: L1 ≥ 95%, L2 ≥ 90%

Max radial force: 320N

Max axial force : 240N

  Max input speed: 4000rpm

  Rated input speed: 3000rpm

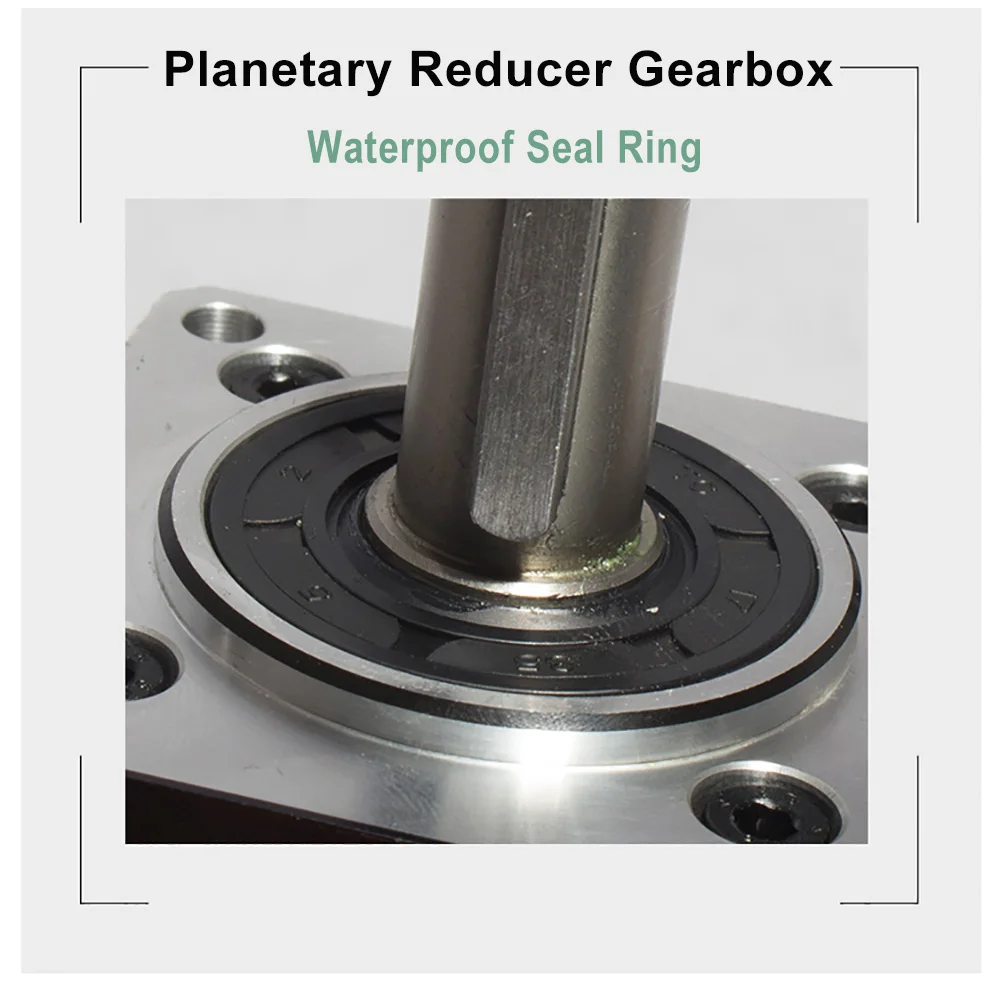

Protection class: IP65

Lifespan: 20000h Backlash Precision: L1 ≤ 20 Arcmin ,  L2 ≤ 40 Arcmin

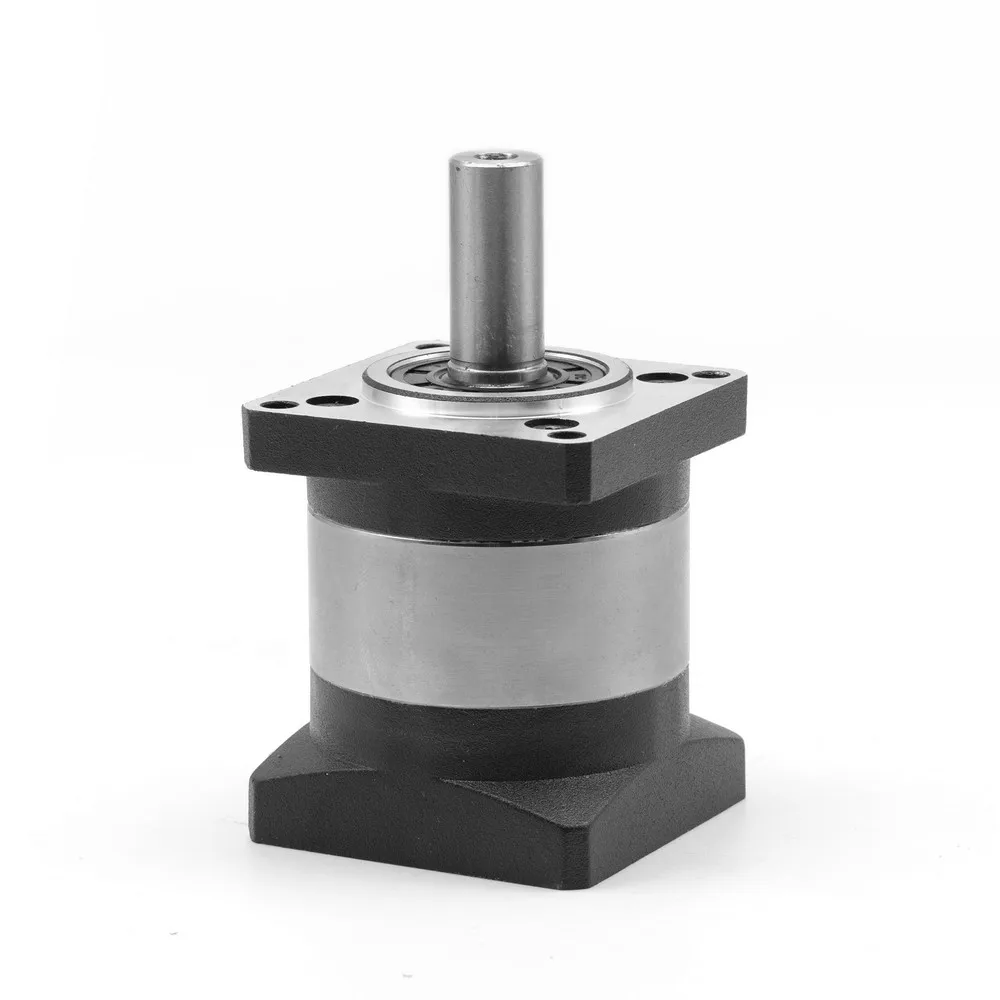

1x Planetary Gearbox

1x Key

4x Install screw

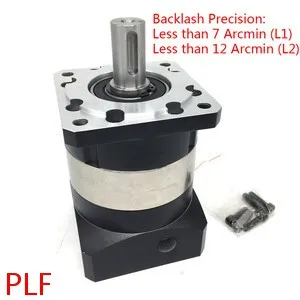

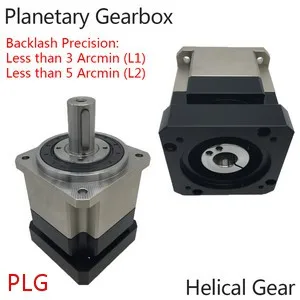

  If you need a higher precision reducer, please click the picture below:
