RF module 433Mhz superheterodyne receiver and transmitter with antenna For Arduino uno Diy kits 433 mhz Remote control 2CH

Remote Controls>>>Consumer Electronics

Brand Name Diese

Use Universal

Use Lighting

Use Electric Door

Use Automated curtains

Use Switch

Wireless Communication RF

Support APP No

Channel 2

Package Yes

Frequency 433 MHz

Model Number Transmitter module WL102-341, Receiver module WL101

Transmitter Working voltage DC 2-3.6V

Quiescent Current 1uA

transfer rate 20KHz

Working temperature -30~+80 degrees

Transmit deviation +/- 7. 5KHZ / narrow-band emission

Transmit Sensitivity larger than 11dBm

Transmitter Size 16* 12 * 6(mm)

RF Operating mode ASK /OOK superheterodyne wireless reception

Receiver Working voltage DC 3.3~5V

Max current 5mA

Frequency band +/- 150KHz

Receiving Sensitivity -108dB

Receiver Size 30.25*8.5*6 (mm)

RF module 433Mhz superheterodyne receiver and transmitter with antenna For Arduino uno Diy kits 433 mhz Remote control



 Product Features

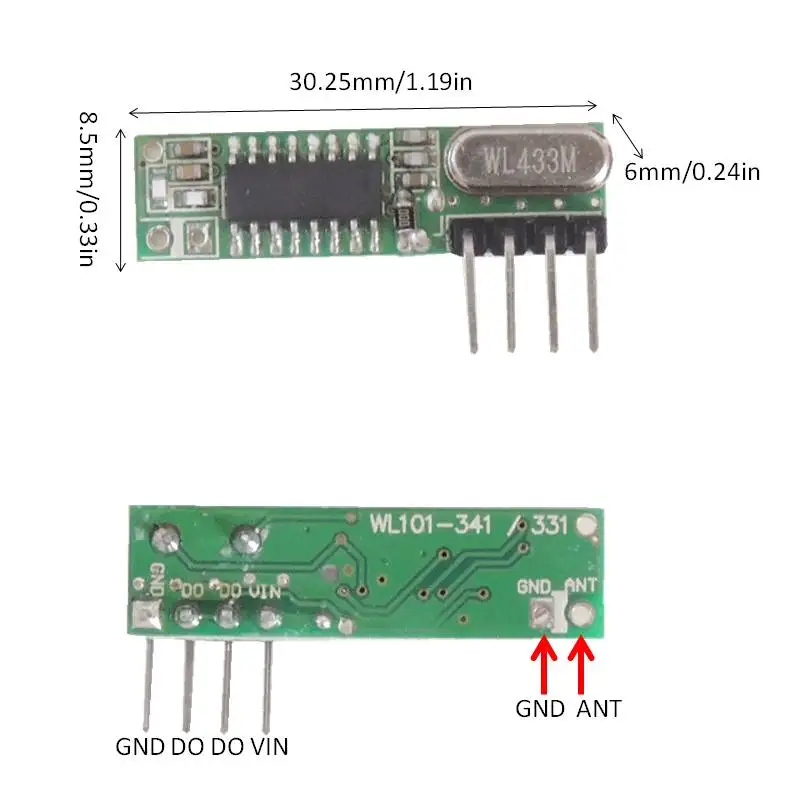

  receiver module

Working voltage  :  DC 3~5V Quiescent Current   : 1uA Max current  :  5mA RF frequency  :  433.92 MHz Frequency band  :  +/- 150KHz transmission rates  :  2KHz to 10KHz Working temperature  :  -30~+80 degrees Receiving Sensitivity  :  -110dBm Size  :  30.25*8.5*6 (mm)  RF Operating mode  :  ASK /OOK superheterodyne wireless reception

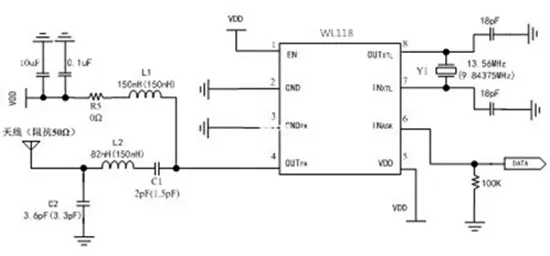

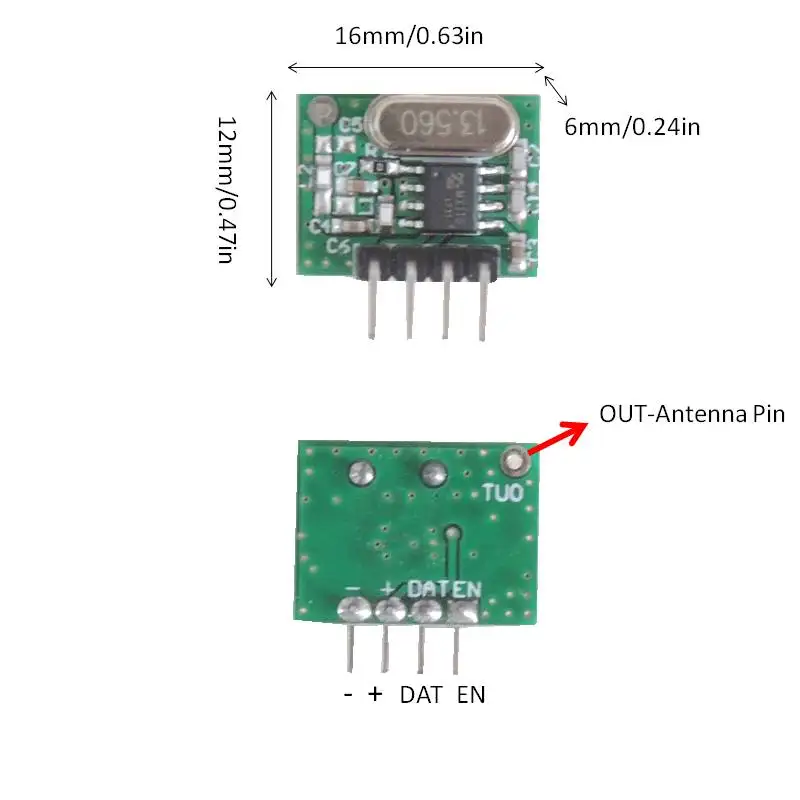

Pins Instruction GND : ground or negative pole D0: Data output D0: Data output VIN: Power input ANT:  Antenna Features 1.Low power consumption; 2.good selectivity and spurious radiation suppression, and easy to pass CE / Fcc international certification; 3.Good local oscillator radiation suppression, multiple receiver module to work with (ie, more than single income) and will not interfere with each other, used together without affecting the receiving distance; 4.External antenna: 32CM single core wire, wound into a spiral Application example Transmitter module Working voltage  :  DC 2-3.6V Quiescent Current  :  1uA transfer rate  :   20KHz RF frequency  :  433.92 MHz Working temperature  : -30~+80 degrees Receiving Sensitivity  :   larger than 11dBm Size  :  16* 12 * 6(mm) RF Operating mode  :  ASK /OOK superheterodyne wireless reception Pins Instruction

DAT - Wave signal input

OUT - Antenna pin . RF signal output, can directly connect to the antenna.

EN - Enable Pin .But this product EN pin is connected to the power supply, no function

- - Power- ground Pin . The ground wire connects power supply.

+ - Power supply pin . Power Input

Application example Product Usage   Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3. Applications 1.wireless power switch, socket, remote control switch, receiver module, 2. access control, electric cars, motorcycles, automobile anti-theft products, remote door openers, closers control system 3. security, surveillance systems, home security products, electric doors, alarm host, alarm 4. rooms controls, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote rolling gates, sliding door 5. smart home products, remote control curtains, remote MP3, audio



  Package include

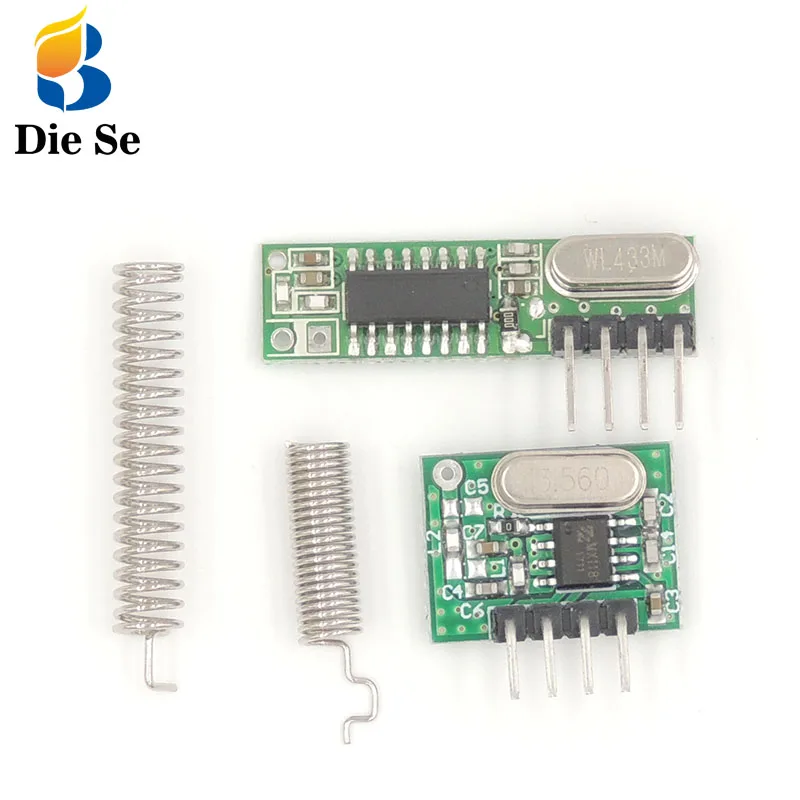

Transmitter module (WL102-341)   Receiver module (WL101)   With Antenna

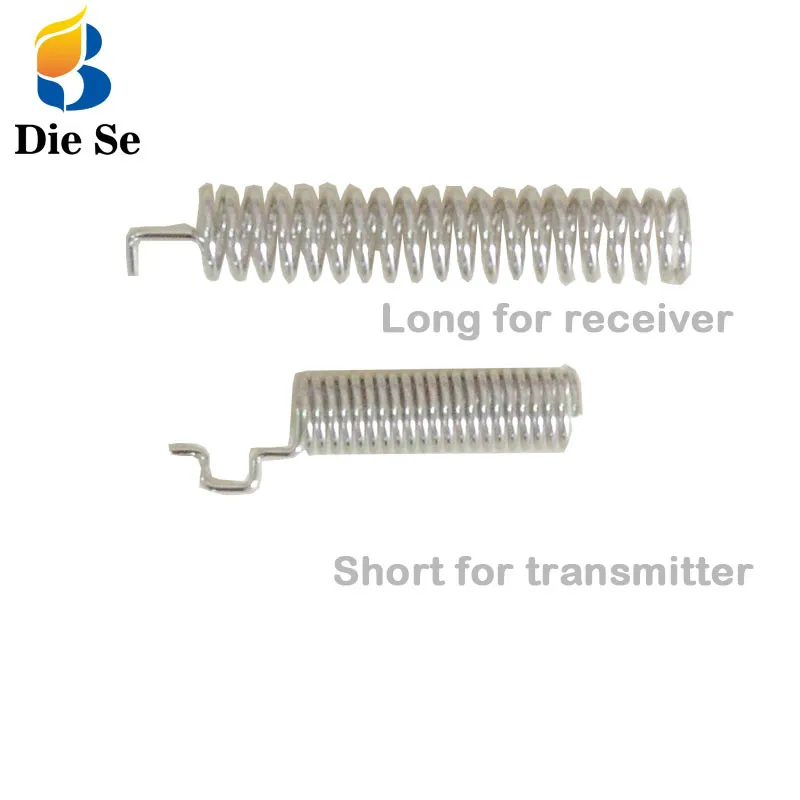

Antenna selection Description   General application mode For general application mode ,the antenna can directly adopt the general specifications from the market; The specific information as follows: The antennarsquos core of conductor diameter(including the Antenna skin): 1.0mm,(except the Antenna skin): 0.5mm ; The wire length of weld end: 17.5mm, the wire length of antenna terminal: 9.5mm; The diameter of antenna winding (including the Antenna skin):5mm; The turn number of winding: 15 turns The diagrammatic drawing: The special enhancement mode   The general application mode cannot satisfy if you need farther communication distance, so the special enhancement mode can receive farther communication distance, and the specific information as follows:   433Mhz Antenna   The antennarsquos core of conductor diameter (including the Antenna skin): 1.0mm; (except the Antenna skin): 0.35mm The wire length of weld end: 12mm The diameter of antenna winding (except the Antenna skin):3.0mm; The turn number of winding: 26 turns; The length of the winding: 36mm The diagrammatic drawing:   *If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
