SDI To HDMI To SDI With USB Power 3G HD SD-SDI Video Mini Converter Adapter With Audio For Camera Auto Format

>>>

Brand Name wiistar

Certification None

Origin CN(Origin)

Connector A SDI

External Power Source Yes

Connector B SDI

Connector B HDMI

Gender Female-Female

Amplifier No

Model Number sdI TO HDMI SDI CONVERTER

Type Video Converter

Package Yes

Color

SDI to HDMI Converter Adapter Mini 3G HD Sdi Hdmi Adapter for SD-SDI, HD-SDI and 3G-SDI Signals With dc cable Support 480p

Introduction:

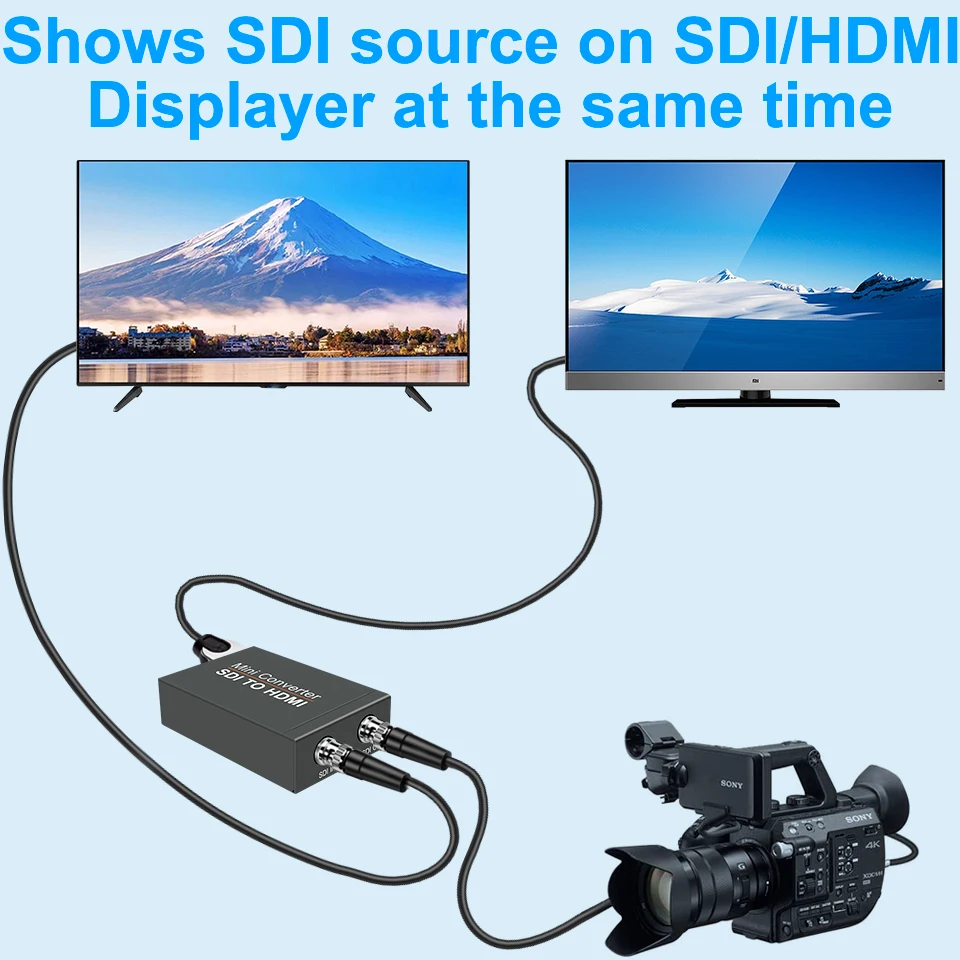

SDI to HDMI Converter Designed for SDI to HDMI Converter allows you easily display your work on common HDMI displays. The loop-through design also allows you to view the original SDI content on an SDI monitor simultaneous with the HDMI display. This converter supports bit rates up to 2.970 Gbps and supports SD-SDI, HD-SDI, and 3G-SDI video signals

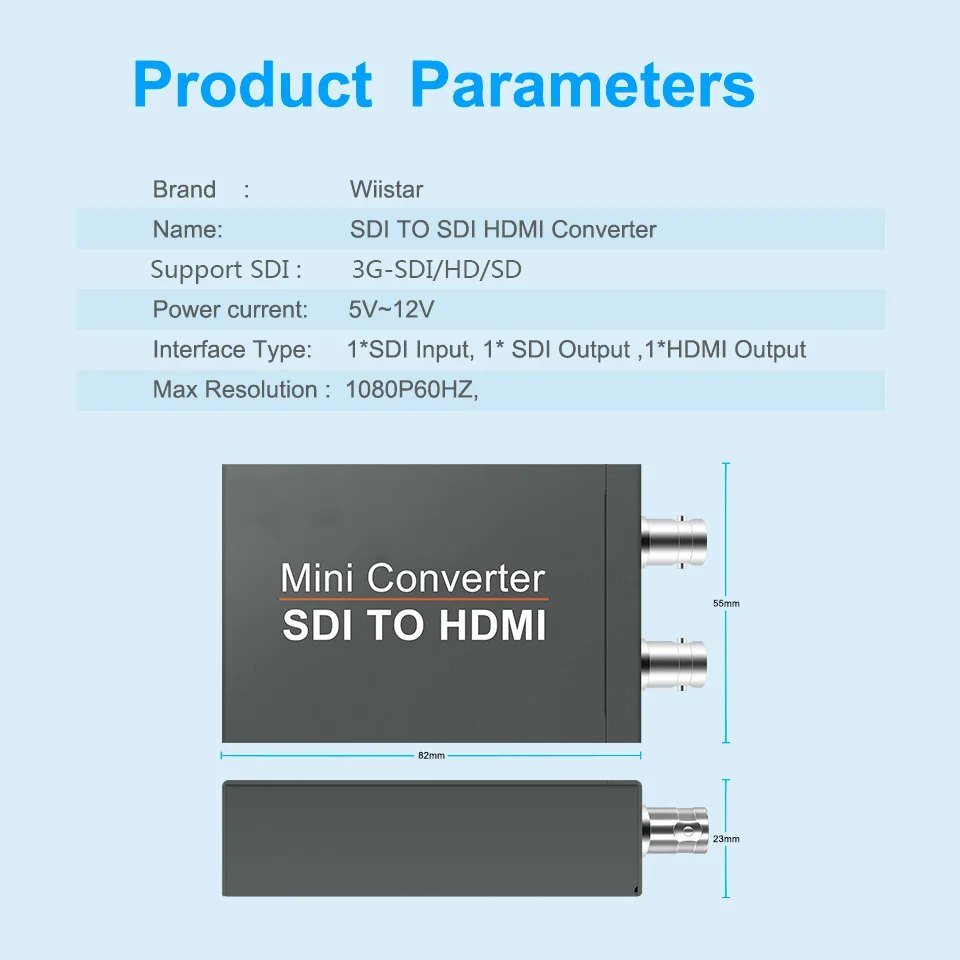

Specifications:

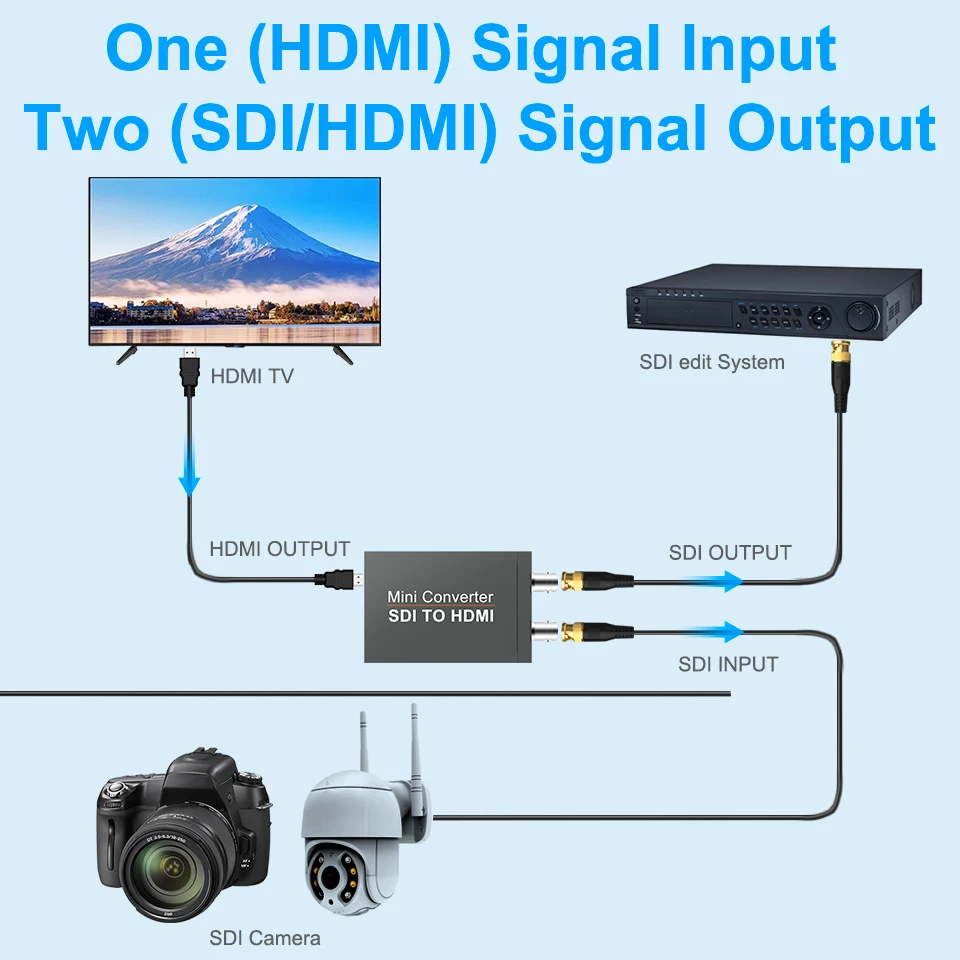

Input port: 1 x BNC (SD-SDI/HD-SDI/3G-SDI)

Output port: HDMI Port, 1 x SDI Output (BNC)

Output HDMI Format: 480i/p,576i/p,720P@60Hz,1080i@50/60Hz,1080p@24/25/30/50/60Hz

Input SDI Format: 480i/p,576i/p,720P@60Hz,1080i@50/60Hz,1080p@24/25/30/50/60Hz, SD-SDI/HD-SDI/3G-SDI

Input video formats: 3G, HD, and SD-SDI(auto-selected); SMPTE-259 / 274 / 292 / 296 / 372 / 424 / 425;2 * BNC

Output audio formats: HDMI v1.3a, 30/36 bits per pixel, RGB or YUV,SD,HD,720p50/60,1080i 50/60,1080p 24 / 25 / 30 / 50 / 60. HDMI Standard type a connector

Input audio formats: SDI embedded audio, HDMI embedded audio,24 bit/48KHz,8 channels max

Note:

1. Only Support SDI signal, not support RF, CVBS, AHD, TVI, CVI Camera. not support Antenna Set Top Box, not support F-Type Male Connector

2. Only Support FHD 1080p,not support UHD 4K

3. Only Support BNC Male Connector

4. Its a SDI to HDMI Converter, cant be used reversed

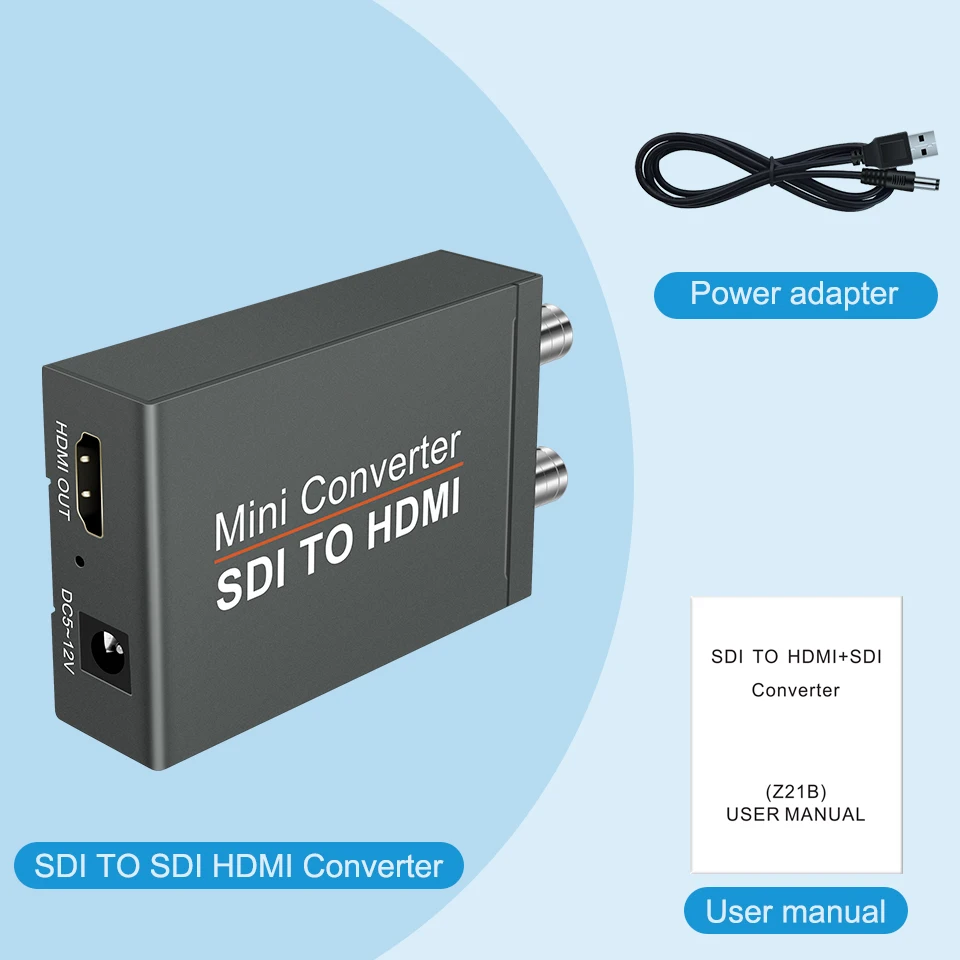

Package Included:

1x SDI TO HDMI SDI converter

1x DC CABLE

1x User Manual
