Switches>>>Lights & Lighting
Brand Name Rubrum
Origin CN(Origin)
Certification CCC
Certification ROHS
Certification CE
Current 10A
Features AC 110V 220V 1CH 10A Wireless Remote Control Switch Receiver Diy Kits
Material Plastic
Item Type Switches
Warranty 1 Year Warranty RF Remote Control Touch Panel Sensor Wall Light Switch
Is Smart Device No
Model Number 433 Mhz 86 Wall Panel Transmitter For Hall Bedroom Ceiling LED Lights
Switch Type Push Button Switch
Working Current 10mA
Vibration Resistance 330K
Modulation Mode ASK
Encoding Type Intelligent Learning Code
RF Working Mode Superheterodyne Reception
Remote Distance 20 meters indoor, 80 meters in open space
Wired Connection Way Fixed Wiring Pillar
Application Work With 433Mhz RF Receiver 1527 2262 learning code
Application Example Led Light Lamp Switch,Home Security Alarm System
Size 86mm x 86mm
Color
Ships From
China
Note :
This remote control only support the learning code (1527) of the receiver Compatible with remote control using these chips: PT1527,EV1527, SCT527, HS1527, SCL1527, FP1527,EV1527
Do not use this remote control to clone other remote controls,you will lose the built-in 1527 encoding.

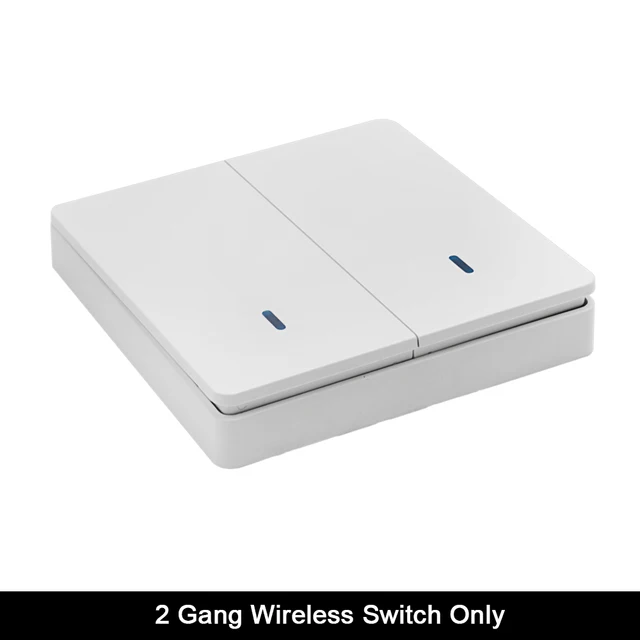

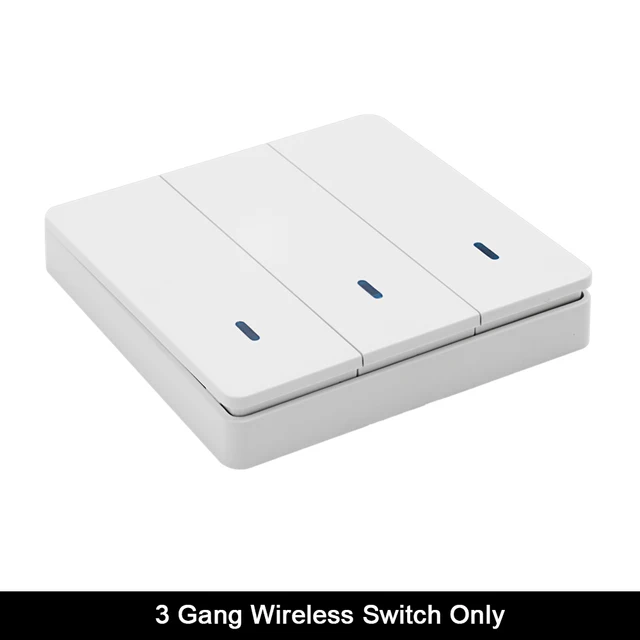

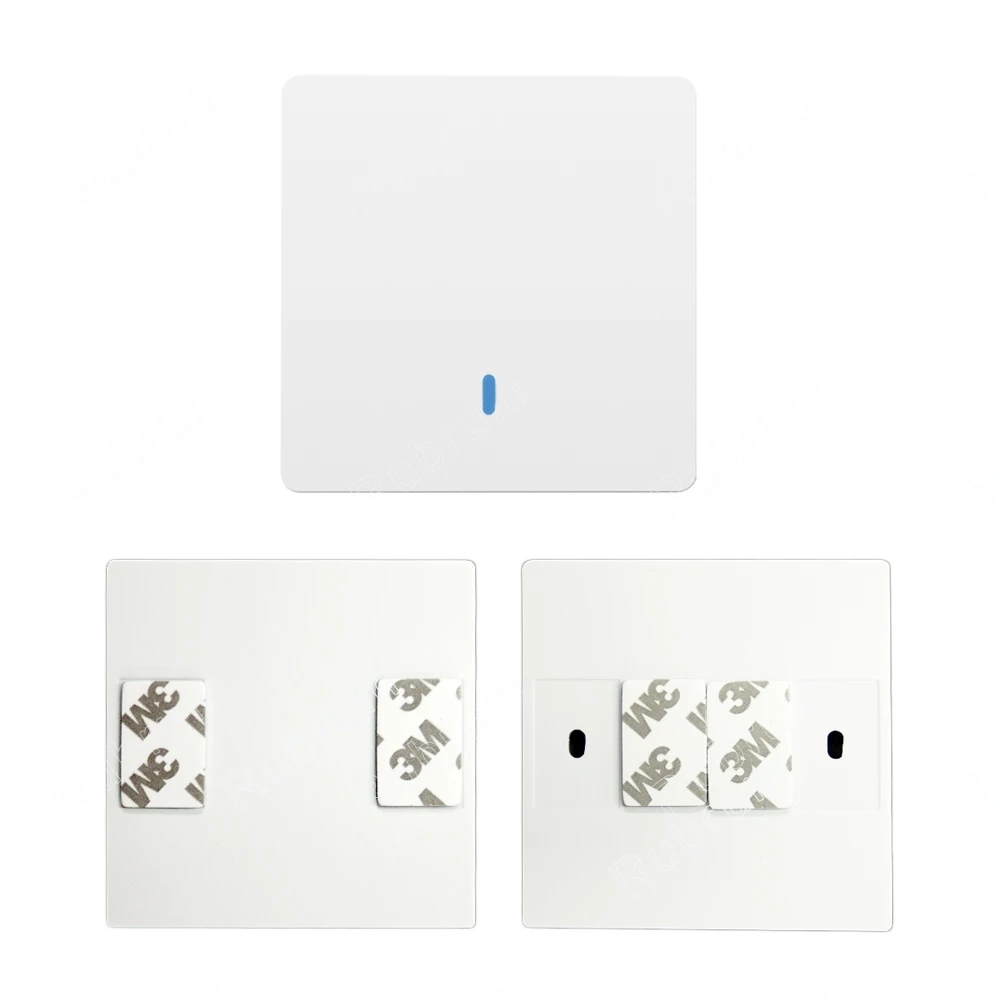

It is a panel 86 wall transmitter that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver, it can work with any kind learning code receiver in our store. So that the trouble brought by routing is avoided successfully.

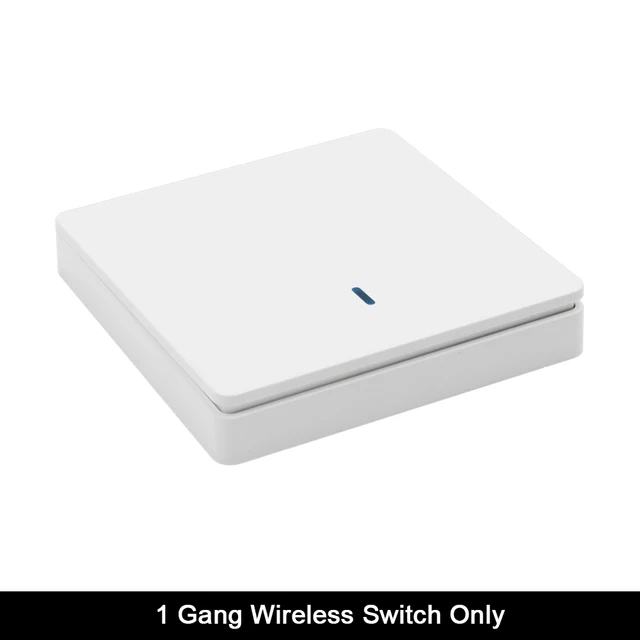

Specifications Of The Wall Panel Transmitter:
Operating Frequency: 433MHz.

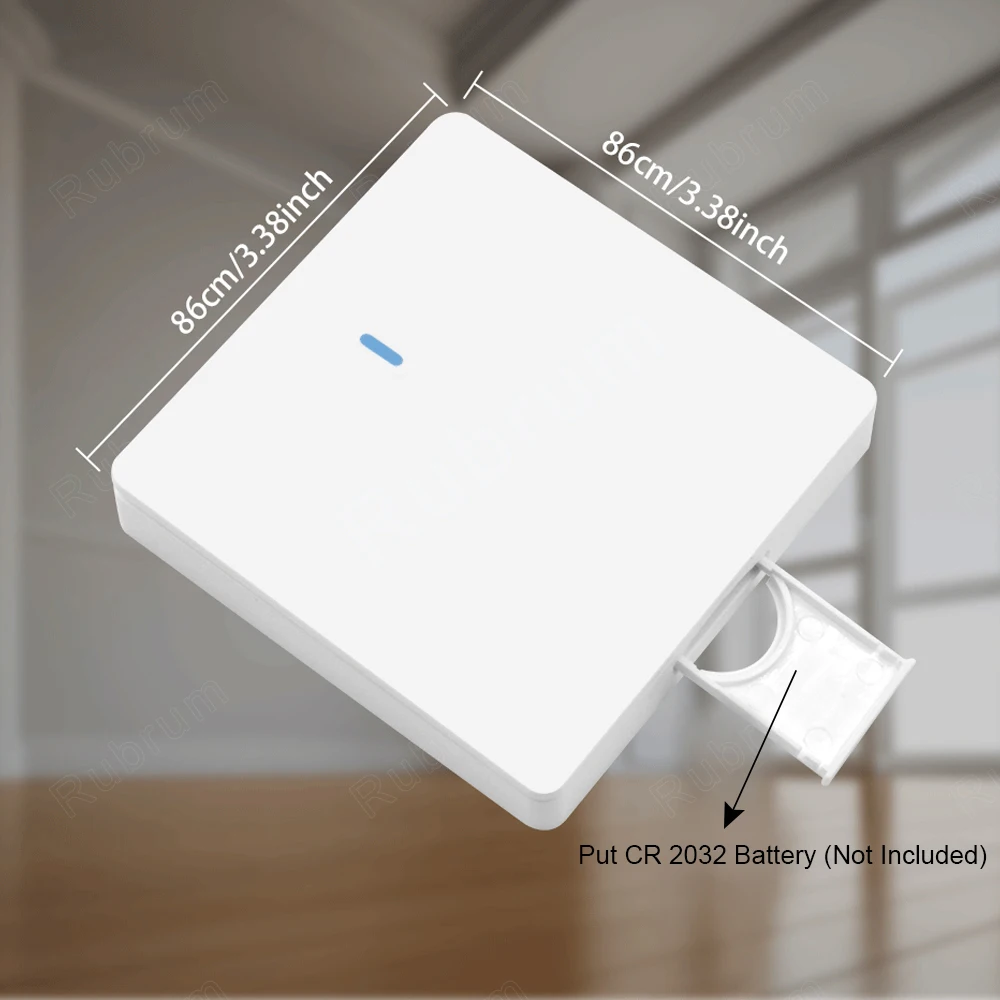

Battery Model: CR2032 Alkaline Battery (Package Not Included Battery).
Material: HDPE(Type2) Plastic.
Coding Specification: 1527.
Distance: Indoor (20 Meters/65 Feets) , Outdoor (80 Meters/262 Feets).
Color: White. Size(L/W/H): 86mm x 86mm x 13mm.
Weight: 60g/2.110z.

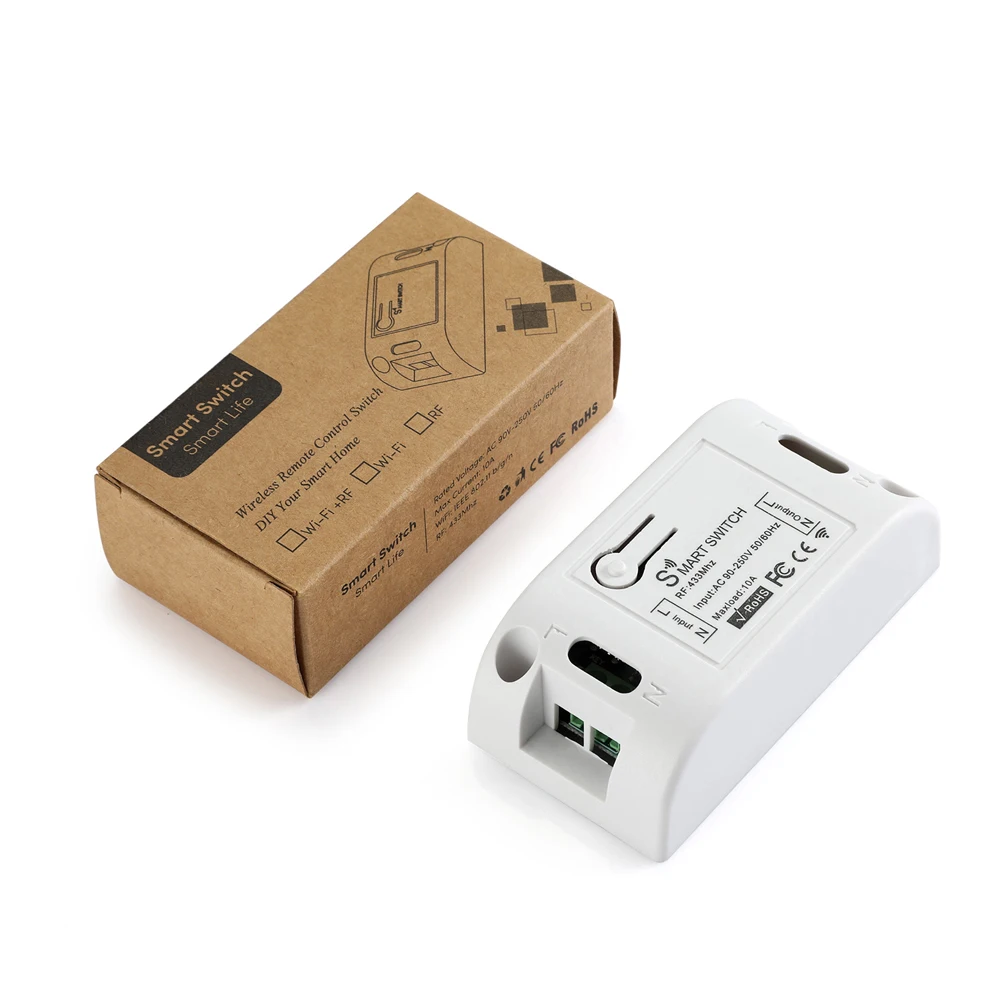

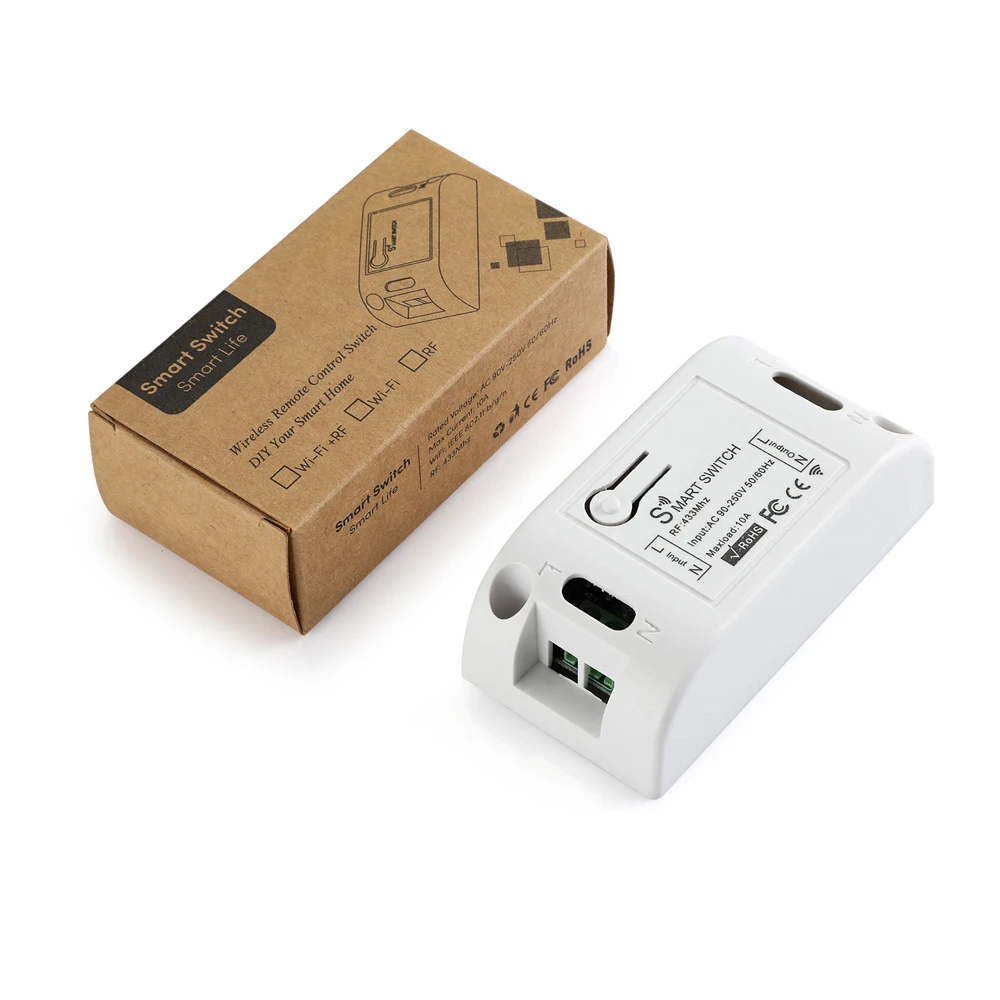

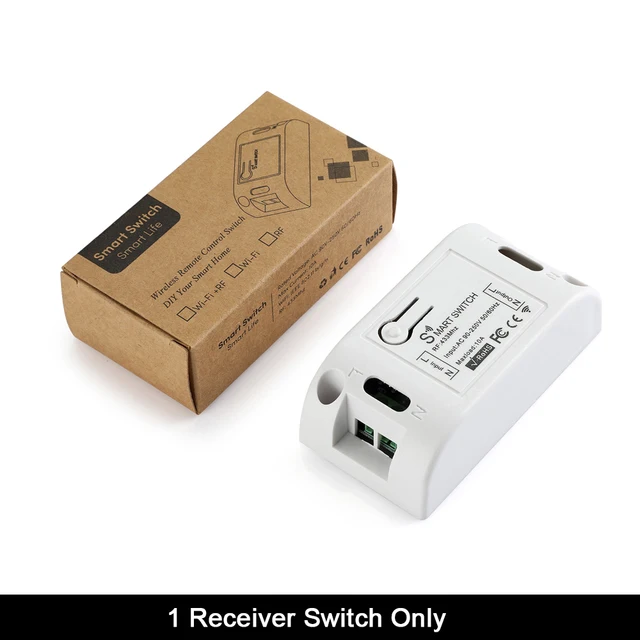

Specifications Of The Receiver:
RF Frequency: 433Mhz.

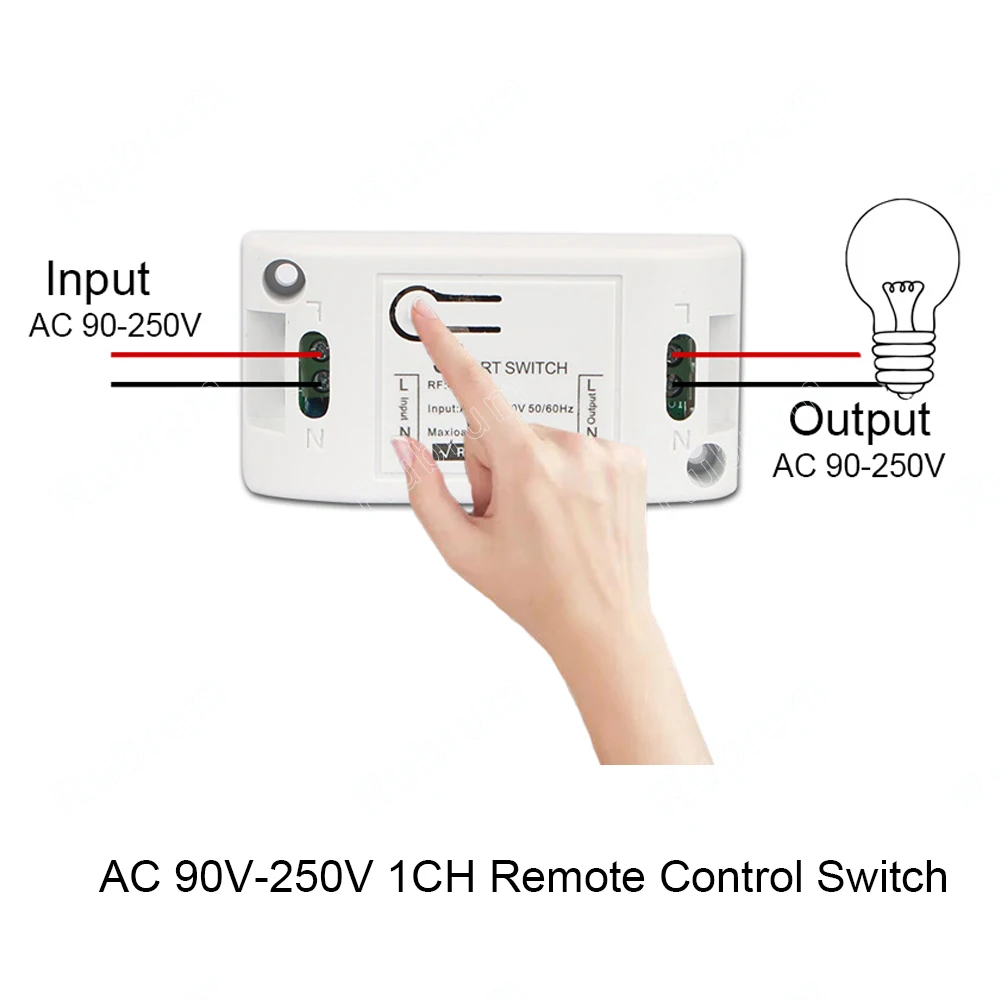

Input Voltage: AC 90V-250V.
Modulation Mode: ASK.
Receiver Sensitivity: -107 dbm.
RF Working Mode: Superheterodyne Reception.
Remote Control Range: 50 Meters (Open Space).
Support Storing The Quantity Of Remote Control: 15 PCS.
Support The Type Of Remote Control: Learning Code(1527), Fixed Code(2262).
Working Mode: Momentary, Toggle and Latching.

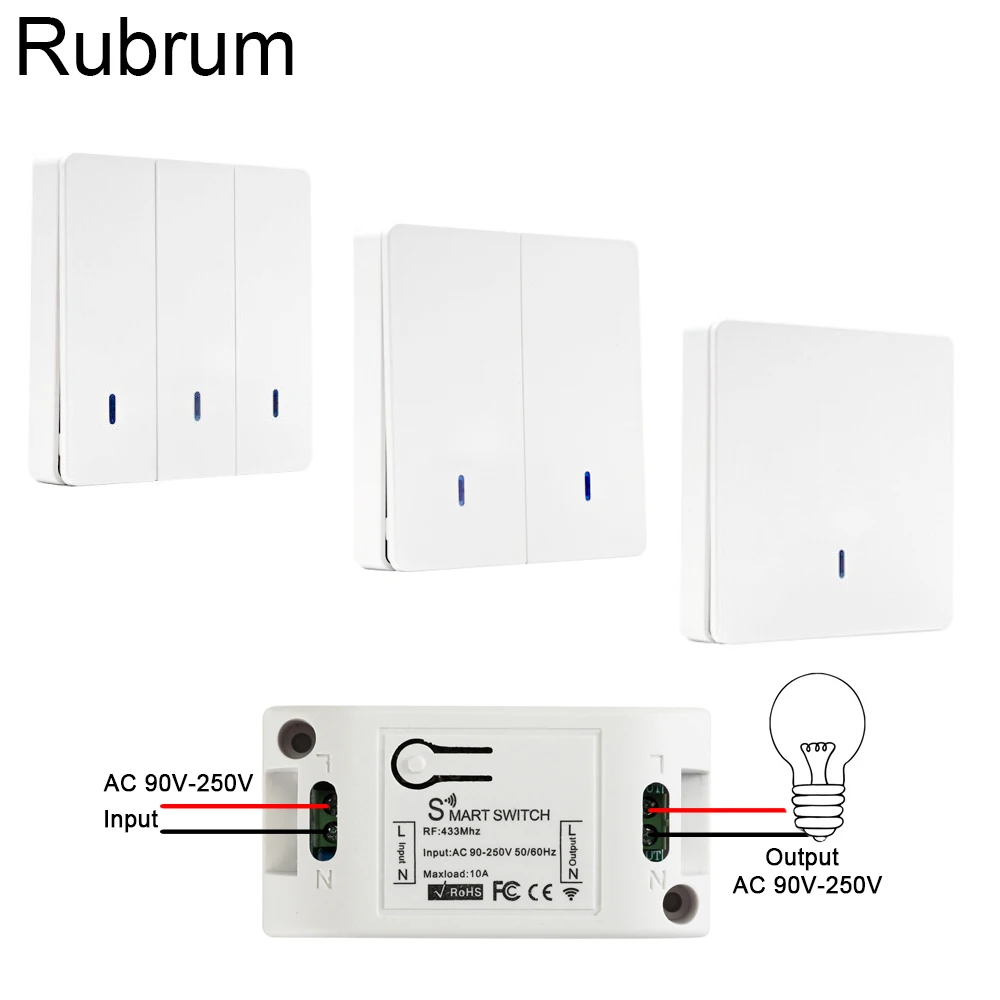

Wiring Connection Way: Fixed Wiring Pillar.
Package Weight: 53g/1.86oz.
Notice:

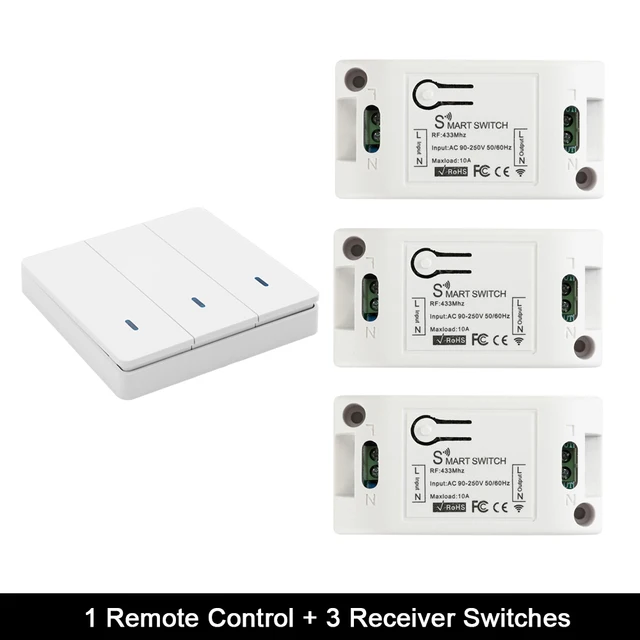

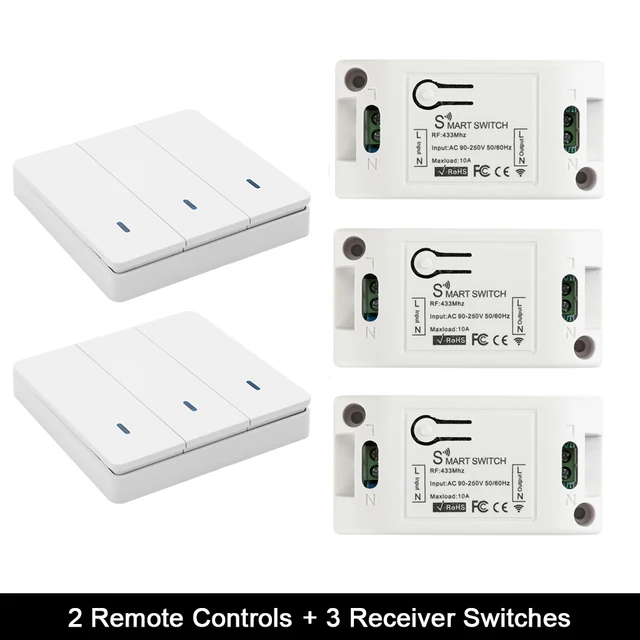

Different Options Include Different Packages.
Clear Code:
Press the learning button on the module 8 times continuously, and the light flashes seven times and then goes out.
About Working mode:
Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.
Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.
Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.
Learning the Code:(Momentary)
Press the learning key on the receiver once time, it comes into momentary setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Push the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code: (Toggle)
Press the learning key on the receiver twice time, it comes into toggle setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Press the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code:( Latching)
Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.
For example: Button A = ON, Button B = OFF
Press the learning key on the receiver triple time, it comes into latching mode .
Wait for a moment, the LED indicator on the receiver board will flash then come off.
Press the remote button A. LED flash for 5 times.
Press the remote button B. LED flash for 5 times
After 3 seconds, the LED indicator will be on again, learning successfully.
A = ON, B = OFF.
NOTE:
1.The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
2. When you receive our products, it may set in one remote mode randomly, that because each product was tested before it can be arranged to shipment. So, please delete the existing data to first use.
3. After deleted the data, all the remote controls cannot work any more.
*If you do not understand clearly.Please send us a message to let us know.We will do our best to serve each of our customers.Enjoy your shopping!*
*We have our own factory.Please let us know if you have OEM projects.We are willing to negotiate with you.*
