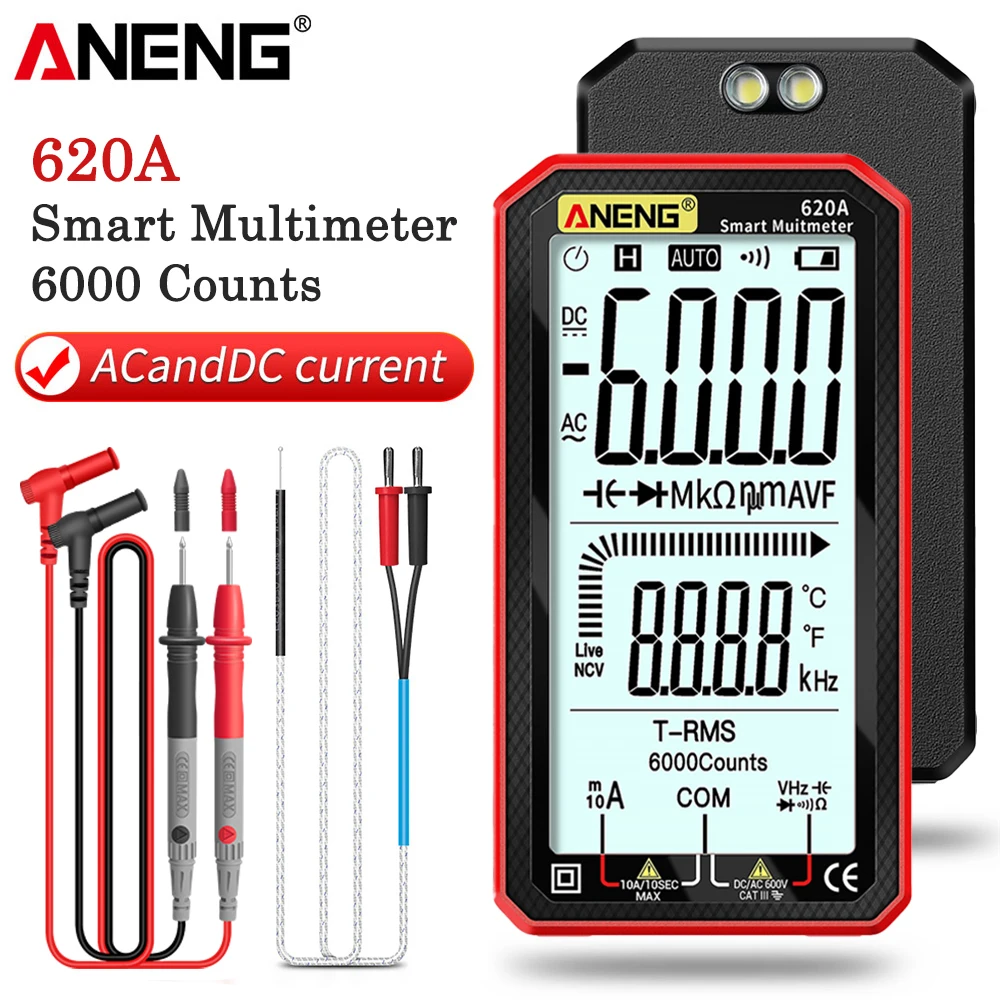

ANENG 620A Digital Smart Multimeter Transistor Testers 6000 Counts True RMS Auto Electrical Capacitance Meter Temp Resistance

Electrical Instruments>>>Tools

Brand Name ANENG

DIY Supplies ELECTRICAL

Certification CE

Certification NONE

Origin CN(Origin)

Model Number 620A Multimeter

AC Current 6000mA/10A

AC Voltage 6V/60V/600V

Measuring Resistance Range 600/6k/60k/600k/6M/60M

Operating Mode automatic

Measuring Inductance Range 100Hz/1000Hz

Display Type Digital Display

DC Current 6000mA/10A

DC Voltage 6V/60V/600V

Measuring Capacitance Range 6nF/60nF/6uF/60uF/600uF/6mF/60mF

Dimensions --

Operating Temperature 0 - 40 ℃

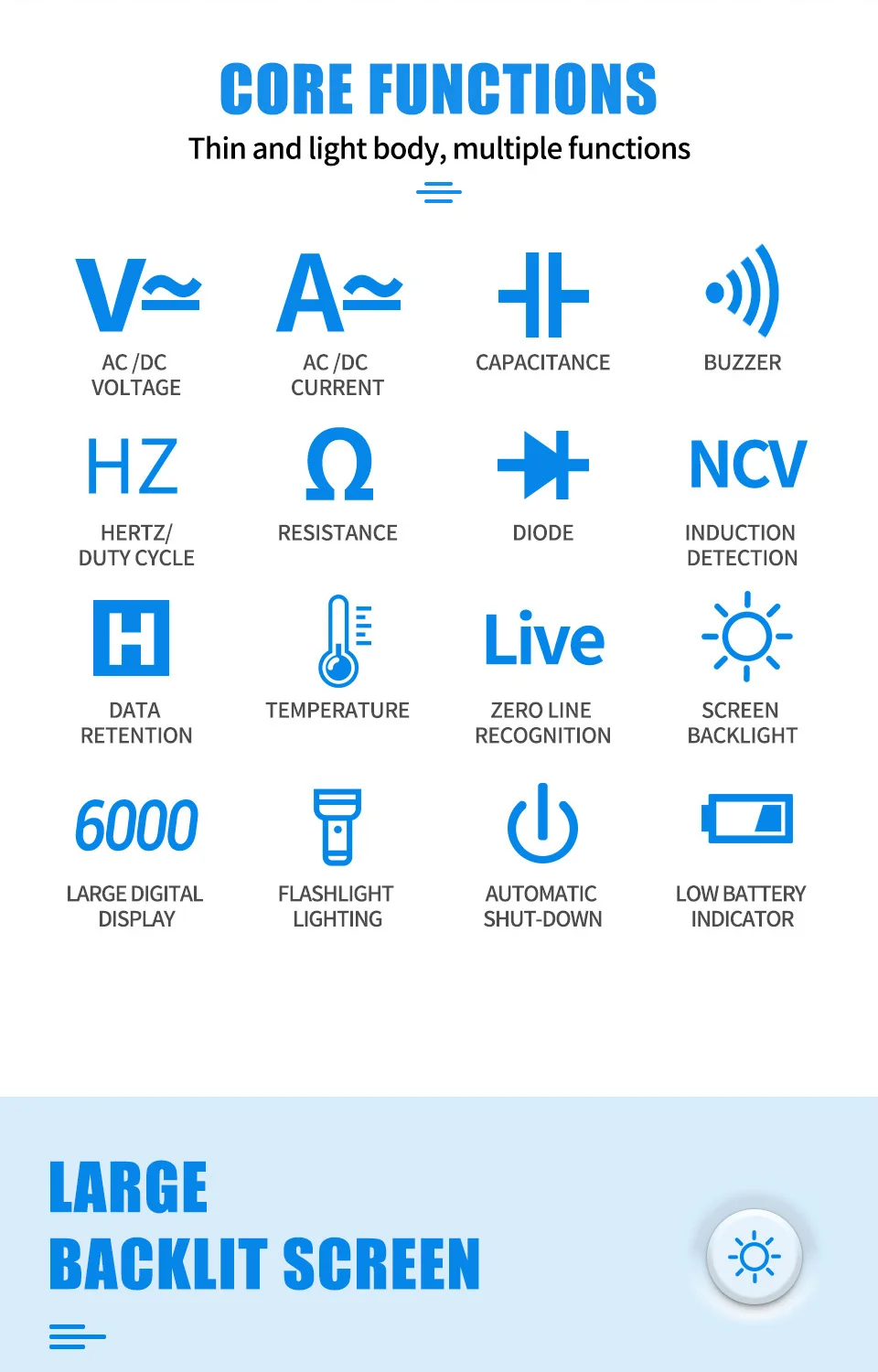

NCV Yes

AC/DC Voltage Yes

AC/DC Current Yes

Resistance Yes

diode Yes

Temperature Yes

Hz Yes

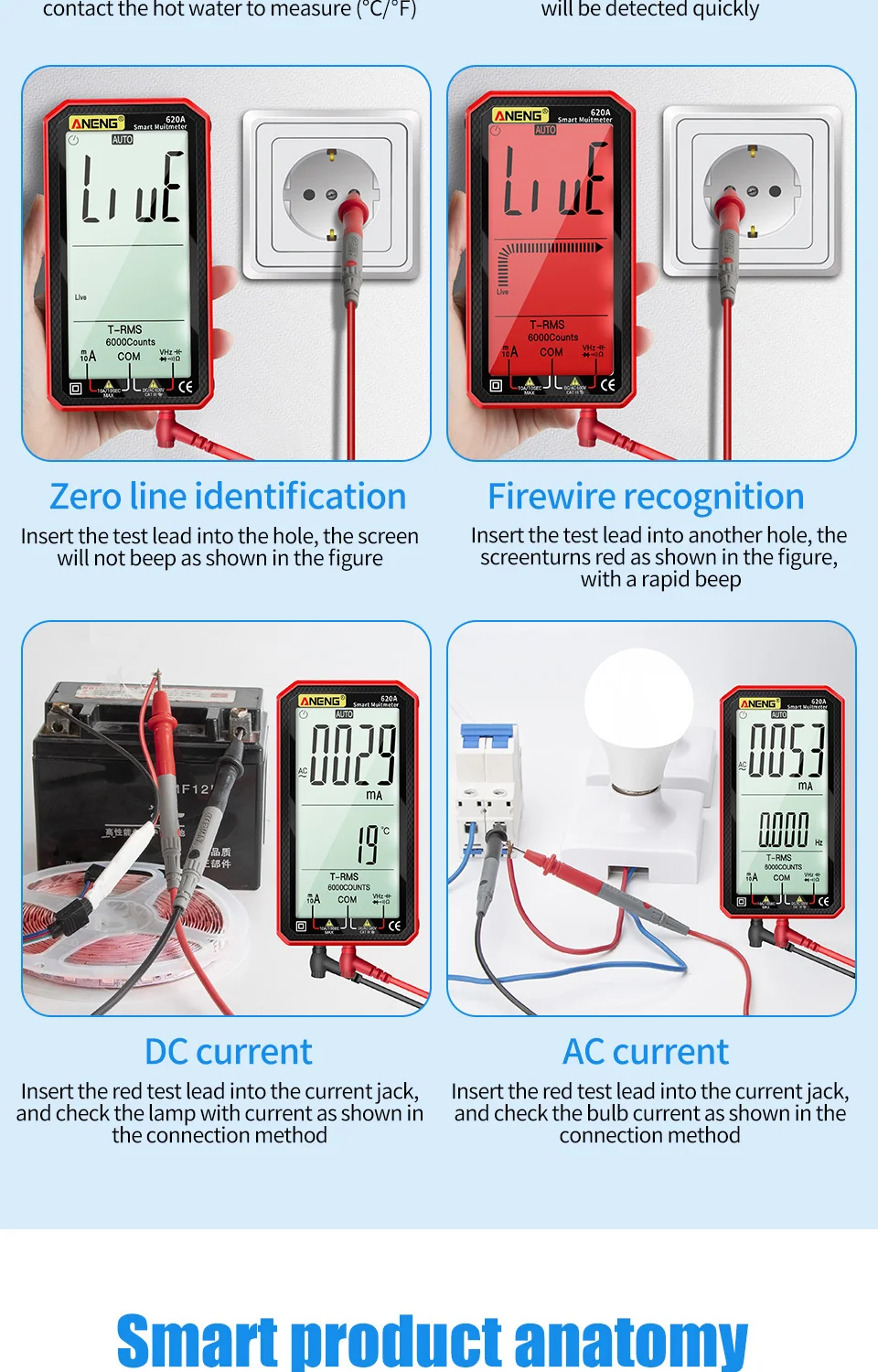

Zero fire line Yes

data retention Yes

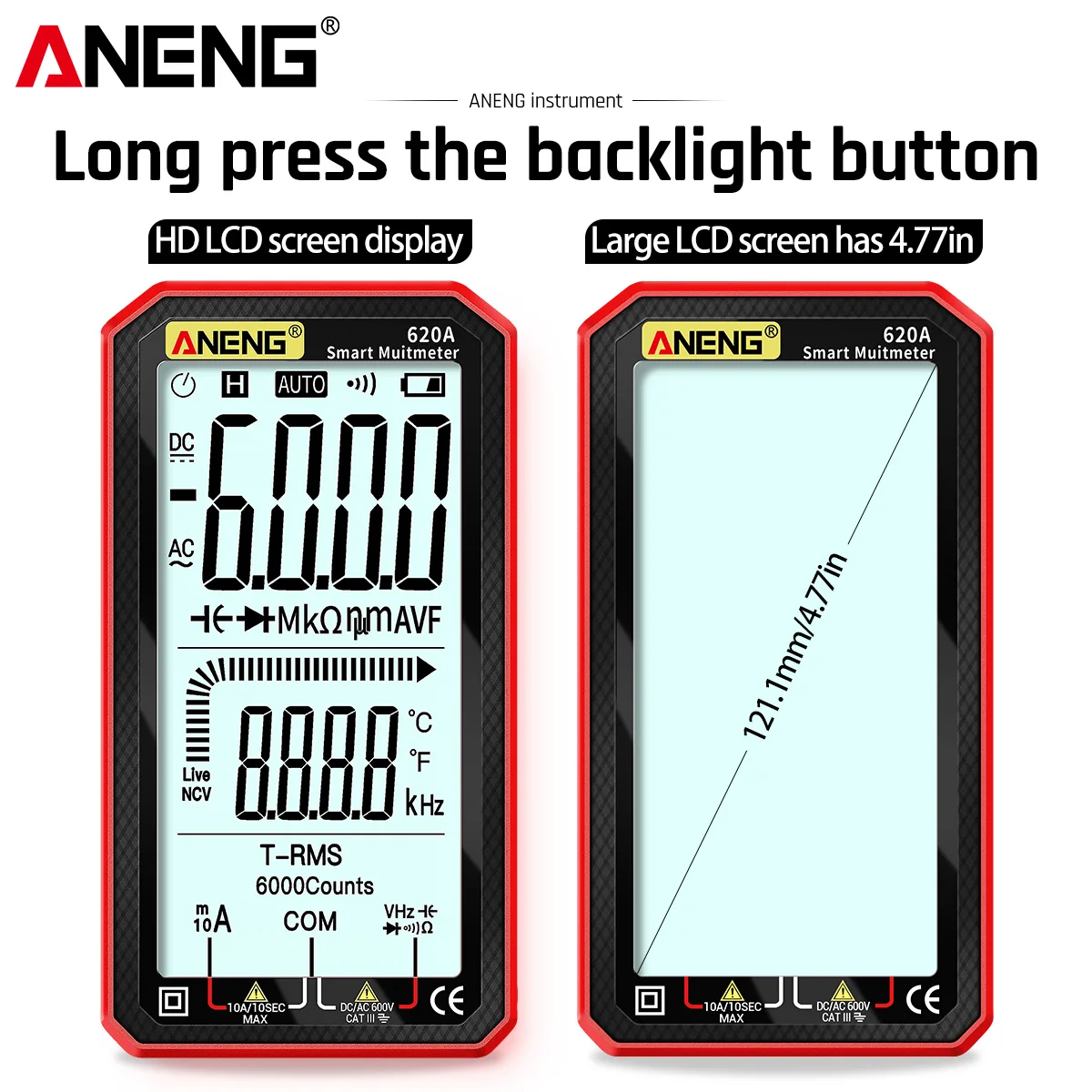

Display(LCD) 6000 Counts

Ships From

China

Russian Federation

Color

 Upgrade ANENG 620A True RMS digital professional multimeter 6000 Counts Smart AC/DC Current Voltage Tester Analog Bar Auto Range Tools

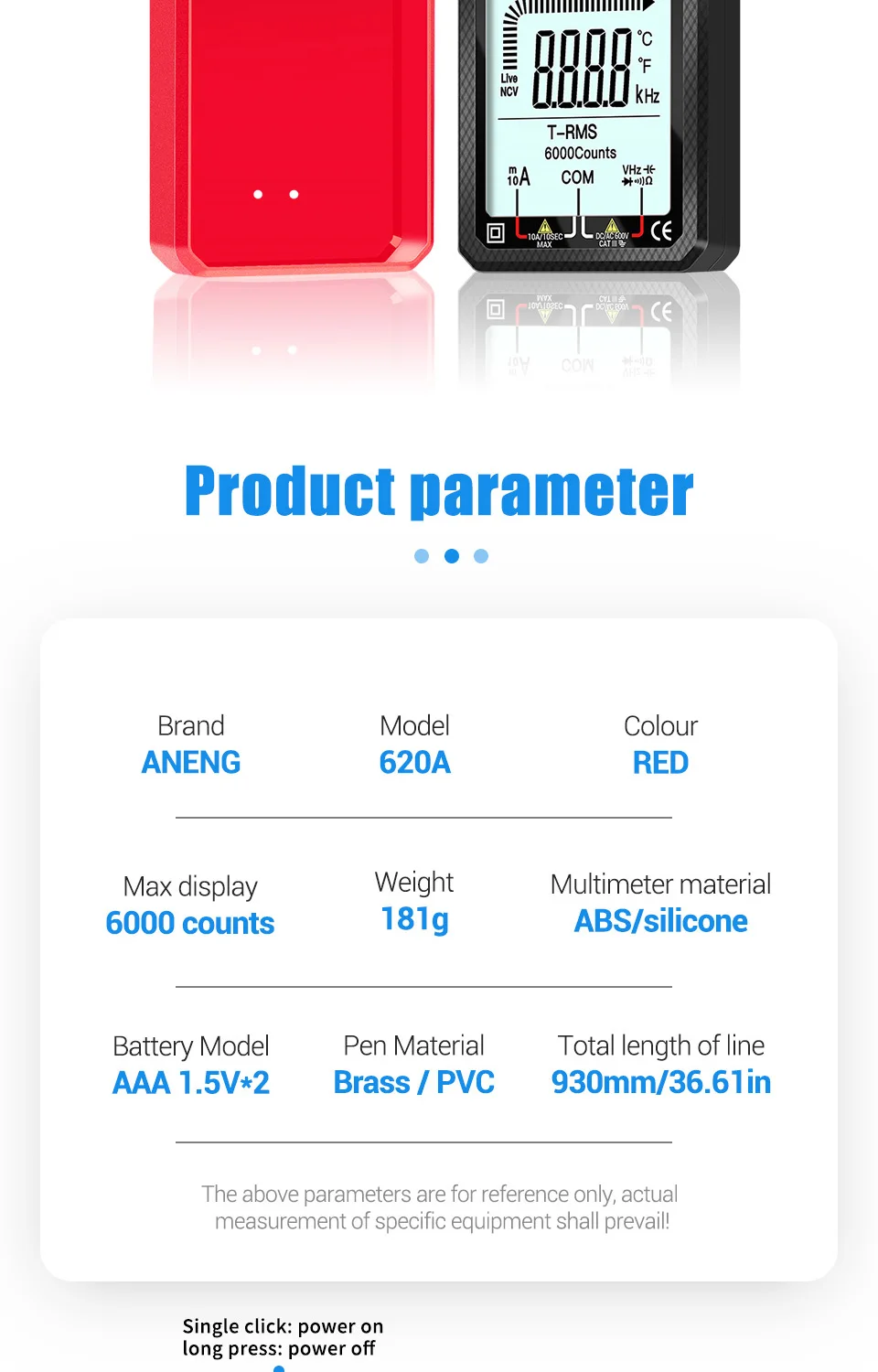

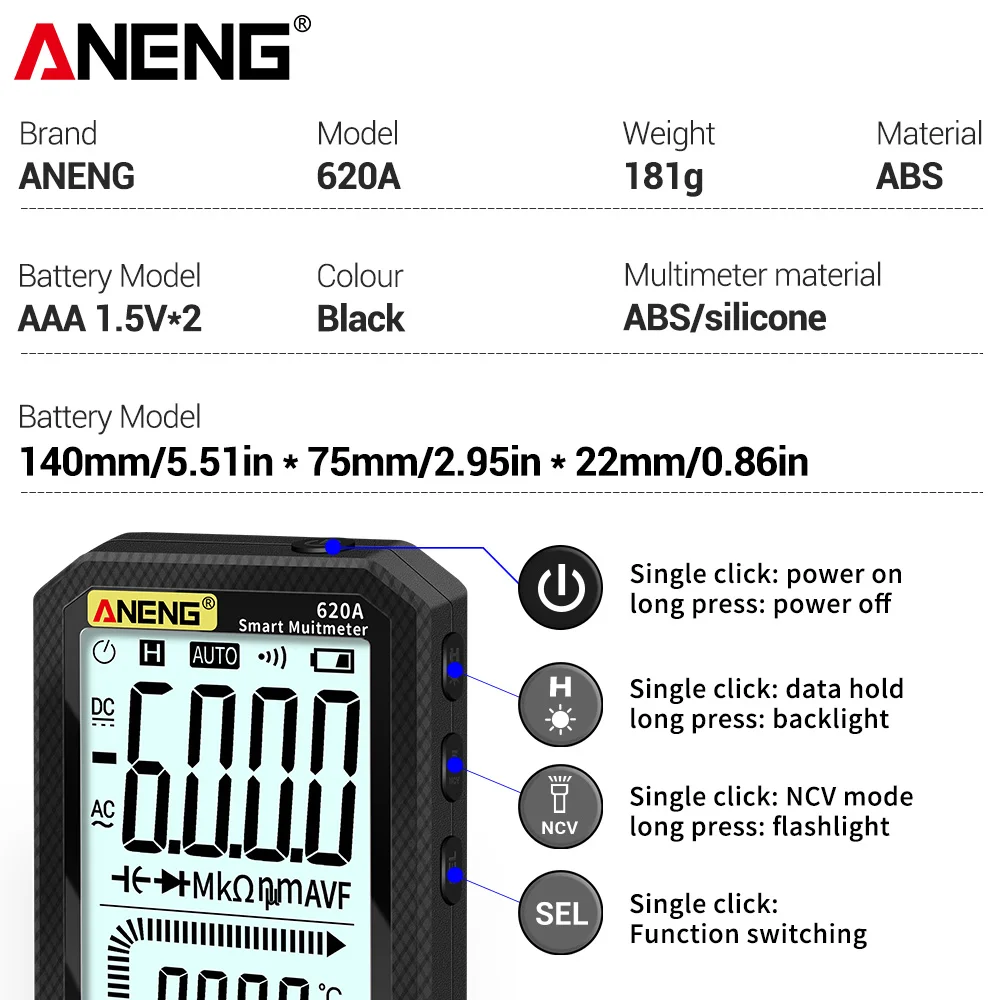

A.Overview:Dispaly: LCDMax. display value:6000 digitAutomatic shut down time:15 minutespower supply:2*1.5V AAA Battery (Without)The instrument specifies one year as a cycle,and shall be re-calibrated under 18℃~28℃,with relative humidity less than 75%.B.Specification:

Function

Range

Accuracy

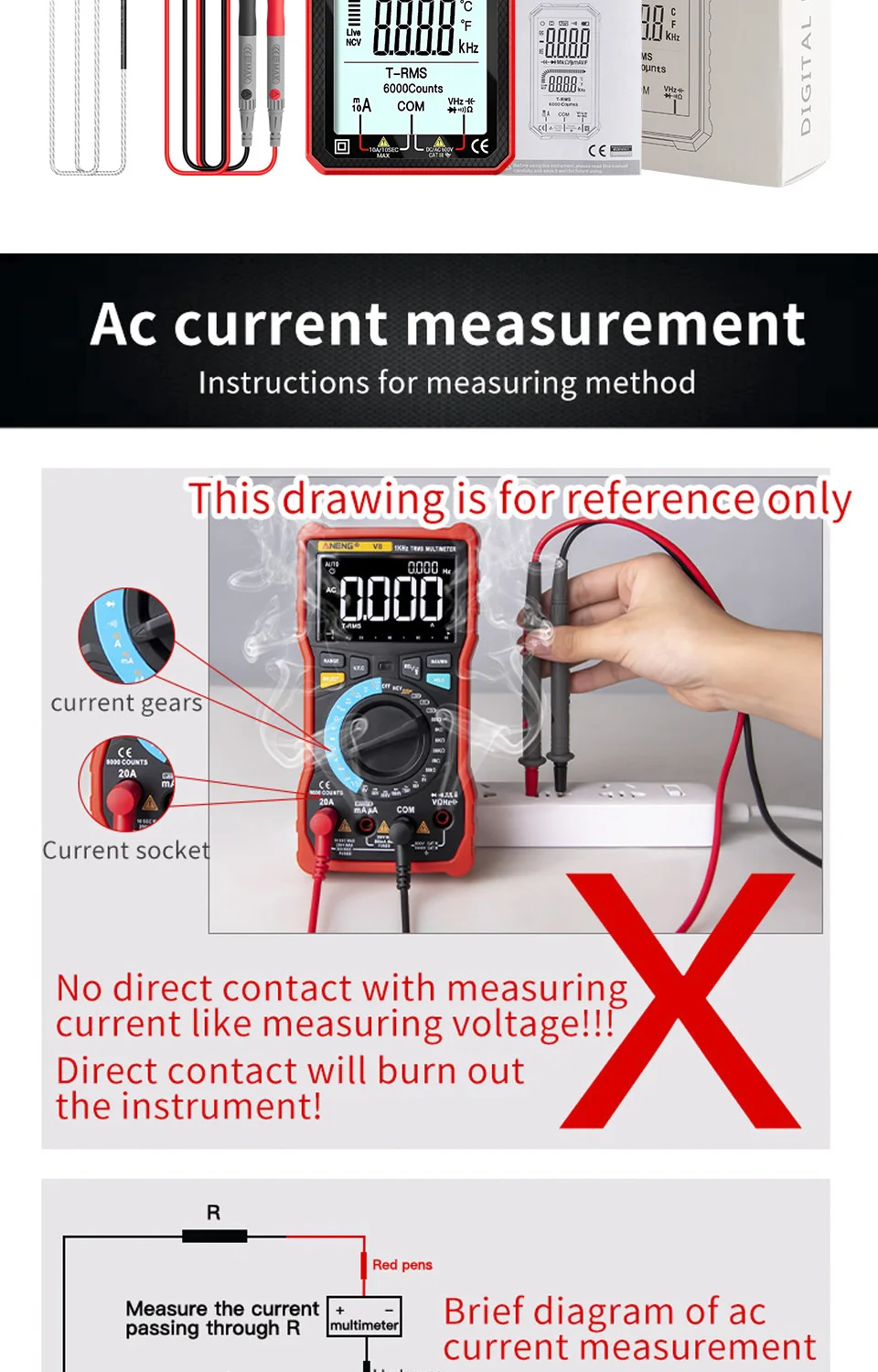

AC Current

6000mA/10A

+-(1.0%reading+8 digits)

DC Current

6000mA/10A

+-(1.0%reading+5 digits)

DC Voltage

6V/60V/600V

+-(0.5%reading+3 digits)

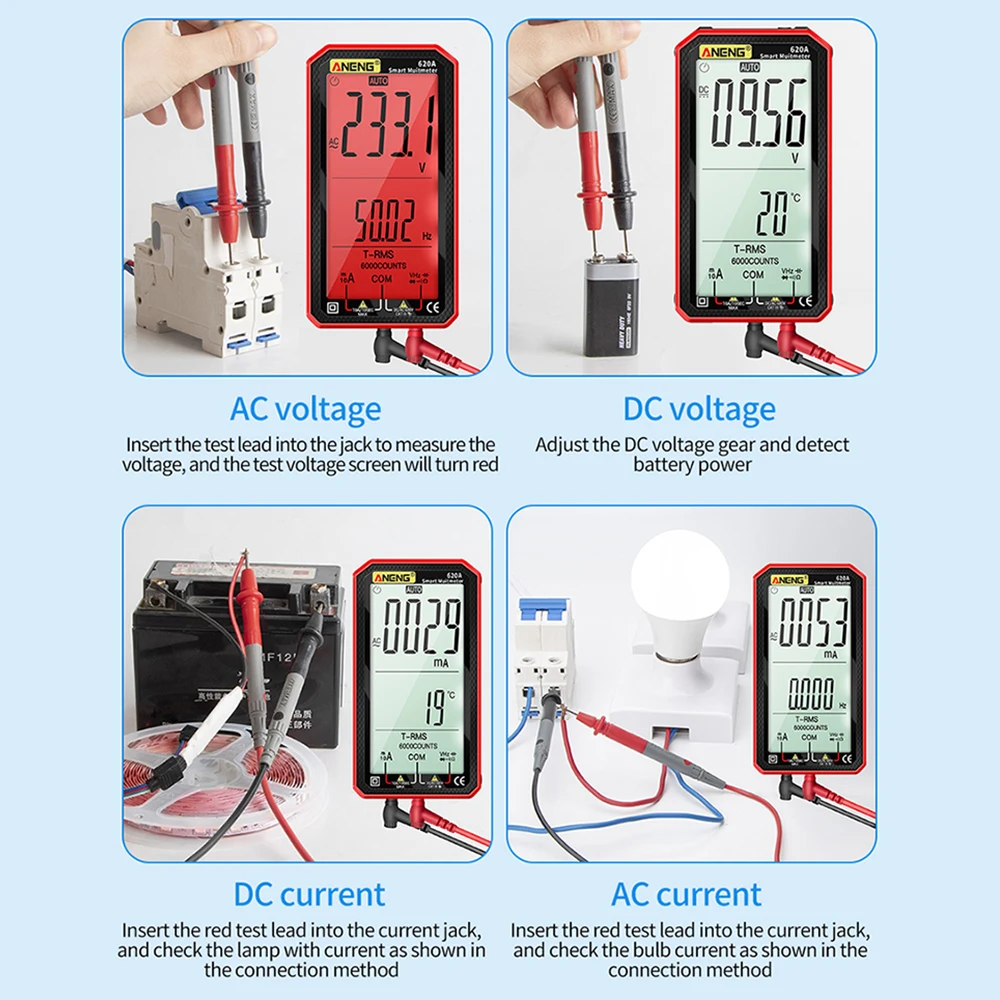

AC Voltage

6V/60V/600V

+-(0.8%reading+5 digits)

Line on-off Test

--

1Ω

Resistance

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

+-(0.8%reading+3 digits)

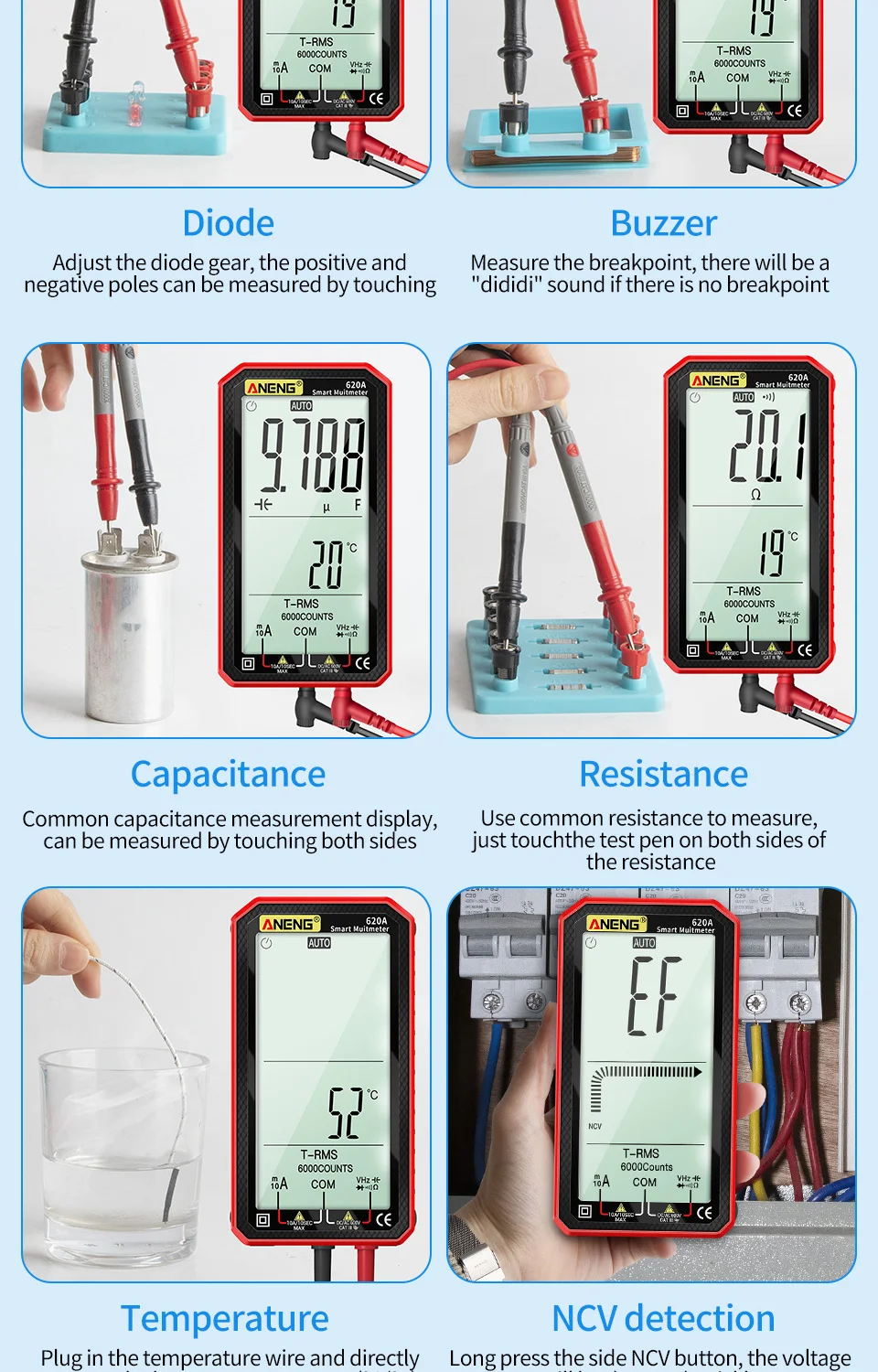

Diode Test

--

1V

Capacitor

6nF

+-(10%reading+40 digits)



60nF/6uF/60uF/600uF/6mF/60mF

+-(2.5%reading+20 digits)

Temperature

-40~1000℃

+-(1%reading+3℃)



-40~1832℉

+-(1%reading+3℉)

Frequency

100Hz/1000Hz

+-(1.0%reading+5 digits)



100Hz/1000Hz

+-(1.0%reading+5 digits)

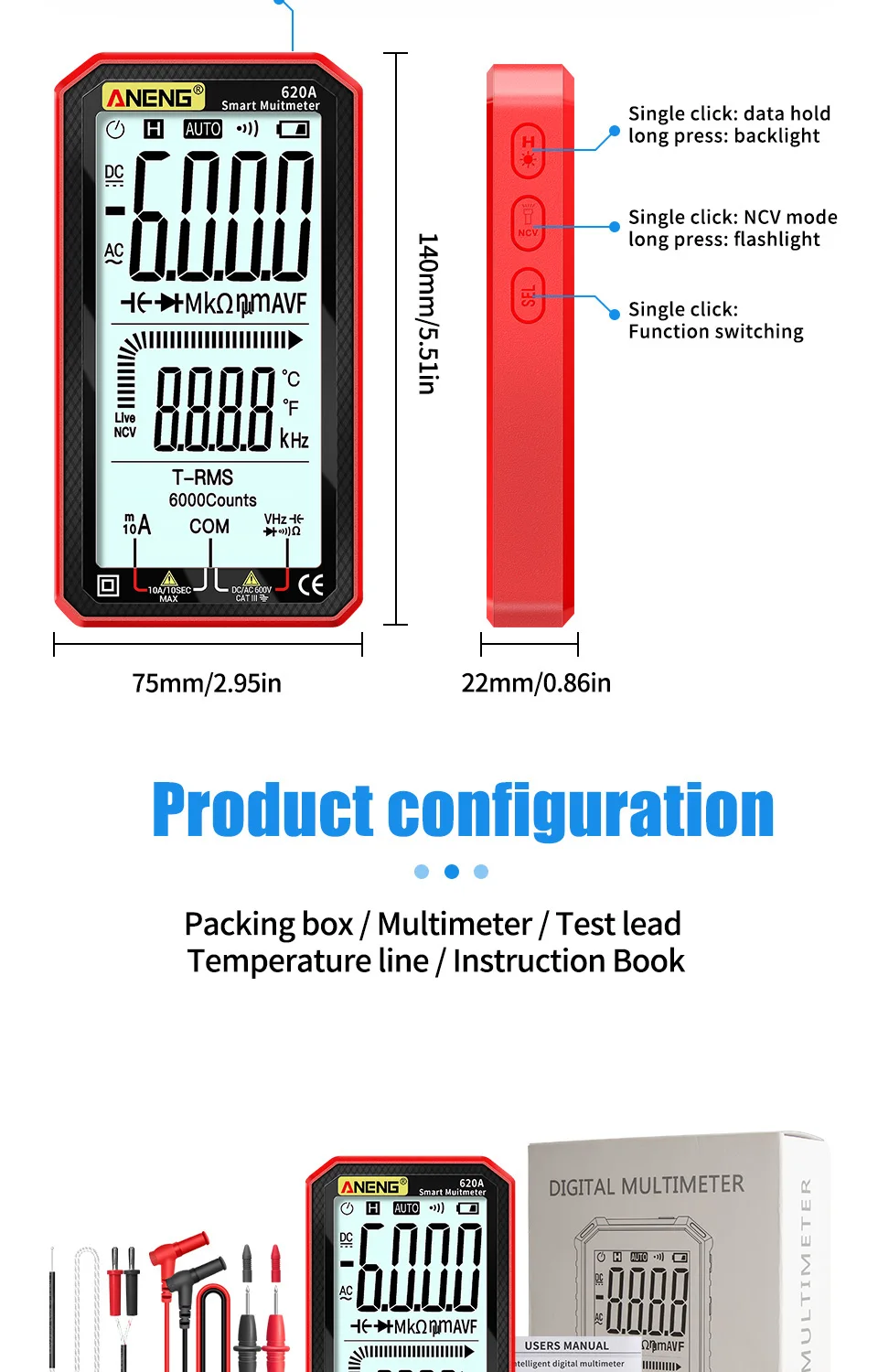

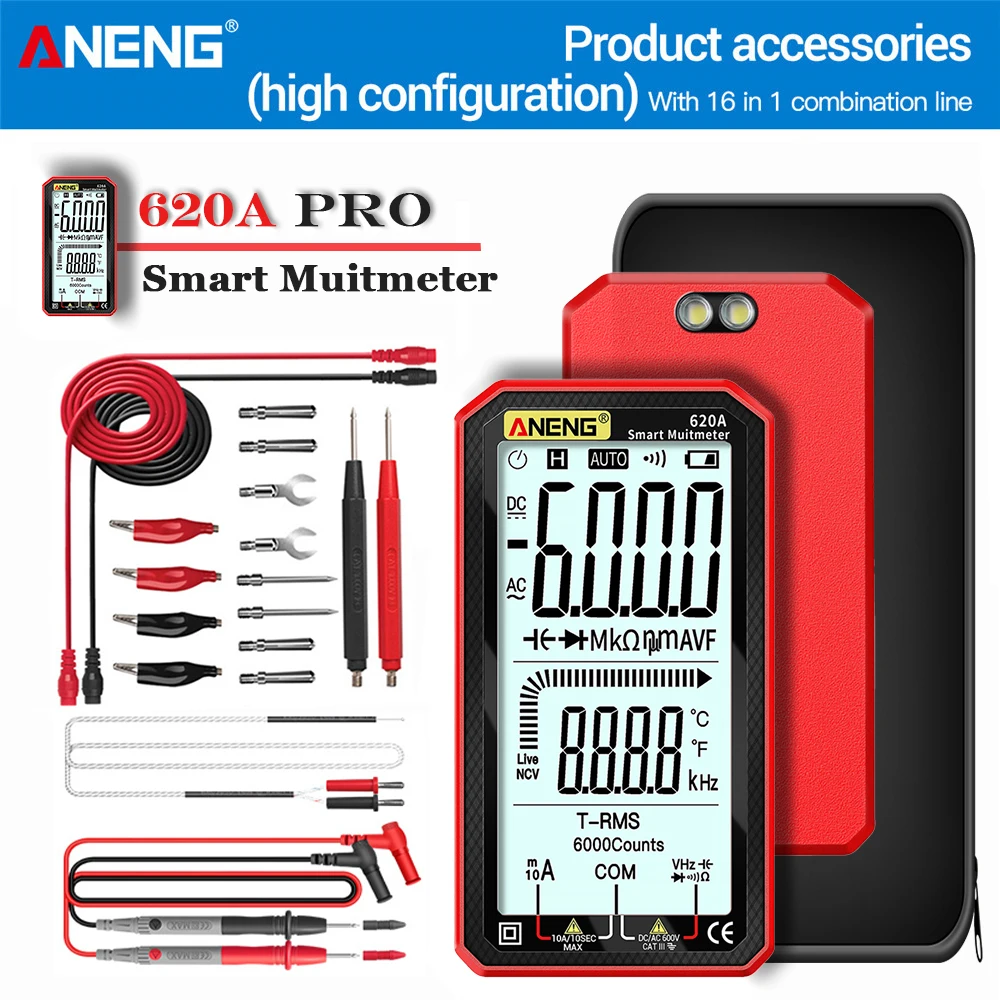

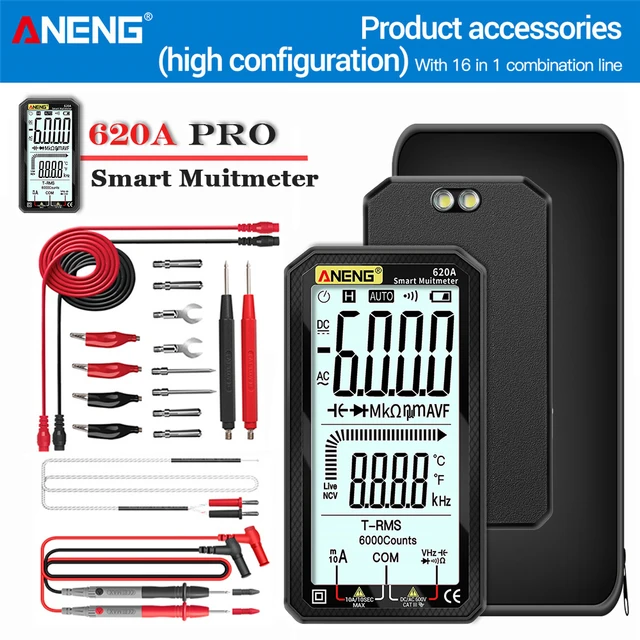

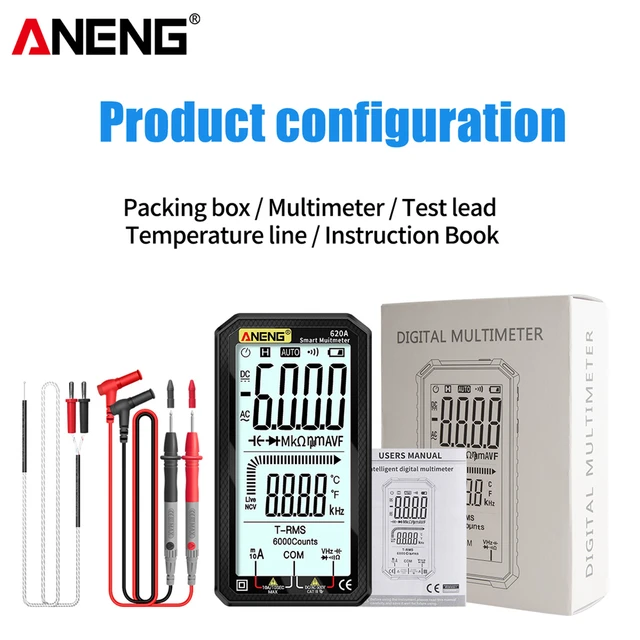

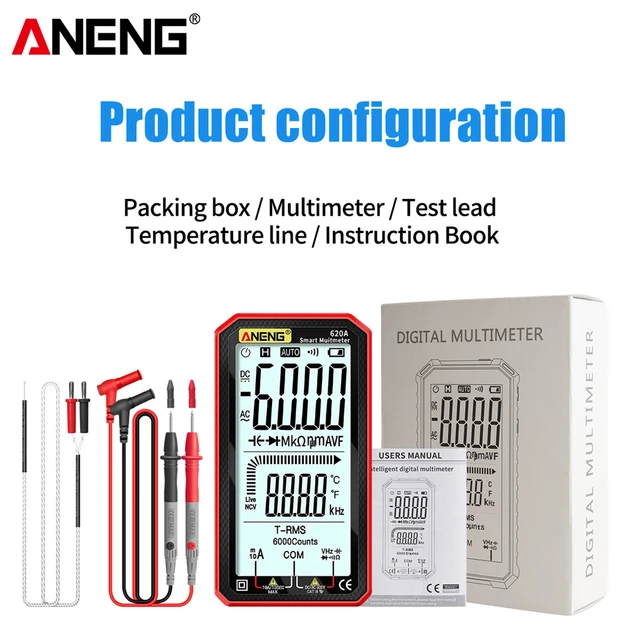

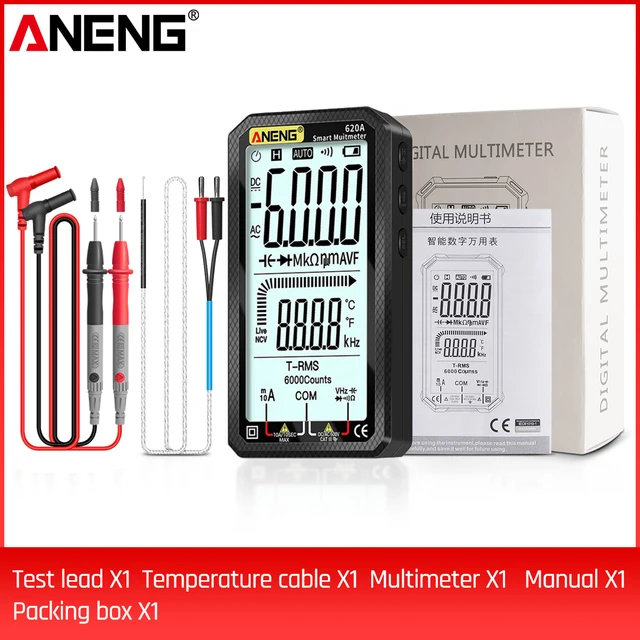

C.Package Include:According to your choice
