ANENG ST181 Digital Clamp Meter DC/AC Current 4000 Counts Multimeter Ammeter Voltage Tester Car Amp Hz Capacitance NCV Ohm Test

Electrical Instruments>>>Tools

Brand Name ANENG

Certification CE

DIY Supplies ELECTRICAL

Origin CN(Origin)

Measuring Capacitance Range 4nF/40nF/400nF/4uF/400uF/4mF

Model Number ST181 Digital clamp meter

Dimensions Multimeter clamp meter

Measuring Voltage Range 400mV/4V/40V/400V/600V

Operating Temperature 0-40 temperature

Measuring Resistance Range 400/4k/40k/400k/4M/40M

Measuring Inductance Range ST181 clamp meter

Weight Multimeter clamp meter

Measuring Current Range 40A/400A

Display Type Analog and Digital

Ships From

China

Russian Federation

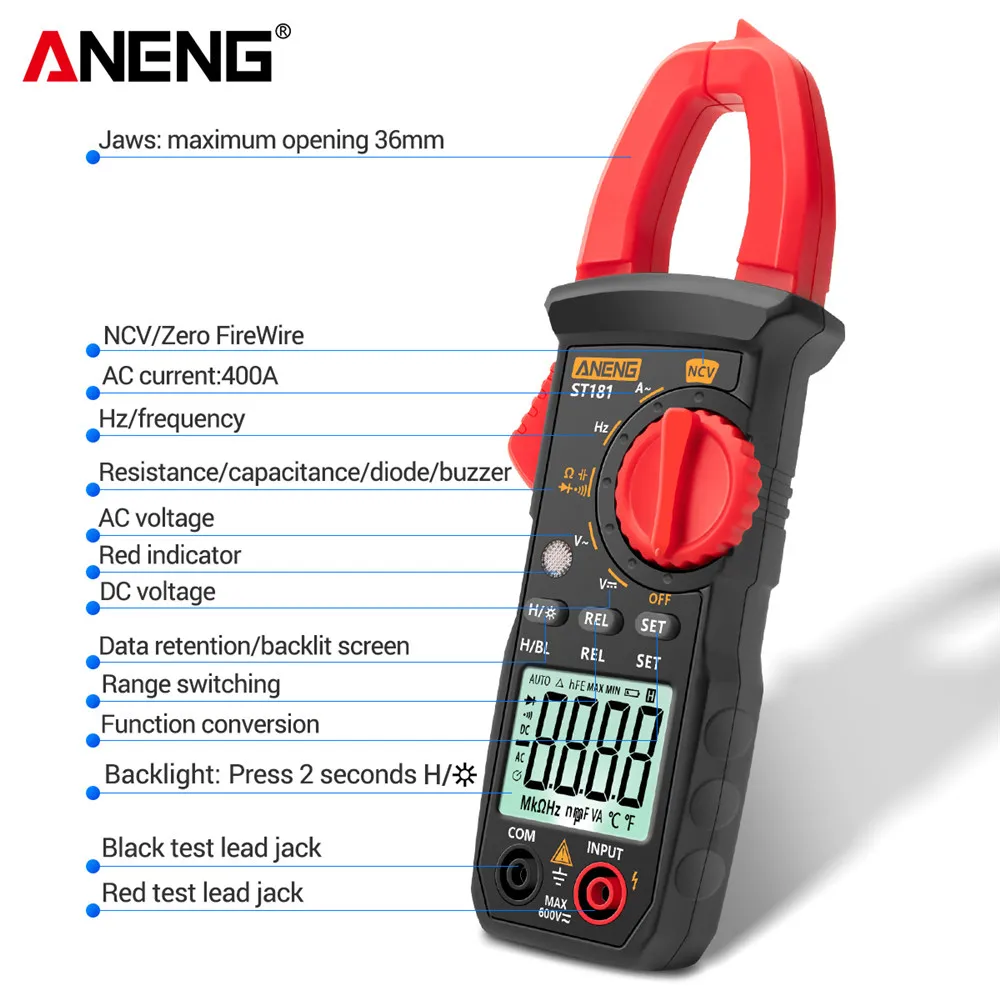

  ANENG ST181 Digital Clamp Meter DC/AC Current 4000 Counts Multimeter Ammeter Voltage Tester Car Amp Hz Capacitance NCV Ohm TestFeatures:Can measure AC/DC voltage, AC current, resistance and test continuity.Manual select measurement function and range.Overload protection for the whole measurement range.LCD display with backlight, convenient to operate and read.Data hold function, low battery indication, auto power off.Suitable for electrical equipment testing and maintenance.Specifications:

Model

ST181

Display

4000 counts



Range

Accuracy

AC voltage

4V/40V/400V/600V

±(1.5%+3)

DC voltage

400mV/4V/40V/400V/600V

±(1.0%+3)

Resistance

400/4k/40k/400k/4M  omh

±(1.2%+3)



40M  omh

±(1.5%+5)

AC current

40A/400A

±(2.5%+3)

Frequency

10Hz~400kHz

±(1.0%+5)



400kHz~4MHz

±(2.0%+5)

Capacitance

1nF~4uF

±(2.5%+10)



4uF~400uF

±(4.0%+20)



4mF

±(5.0%+30)

Working temperature

18°C〜28°C



Package List:1 * ANENG ST181 Clamp Meter1 * Black Packing Bag2 * Test Probes1 * User Manual
