Brand Name MAMICAM
Origin CN(Origin)
High Definition 1080P(Full-HD)
Supported Operating Systems No
Lens (mm) 4mm
Style Bullet Camera
Connectivity 4g
Installation Embedded
Minimum Illumination(Lux) 0.01
Scene Indoor and Outdoor
Color Night Vision Yes
Megapixels 5MP
Storage 128G
Video Compression Format H.264
IR Distance(m) 30M
Certification CE
Dimensions (L x W x D)(mm) SMALL
Color white
Alarm Action FTP Photo
Alarm Action Email Photo
Alarm Action Local Alarm
Movement Range(Tilt) Other
is_customized Yes
Model Number NH-02-G
Supported Mobile Systems Android
Supported Mobile Systems iOS
Smart home platform Other
AI Functions Motion Detection
IP Rating IP67
Special Features Waterproof / Weatherproof
App name Other
TF Card None
Digital Zoom 4X
Power Supply(V) 12V
Audio Output 1CH BNC
Power Consumption(W) W
Sensor CMOS
Sensor Brand SmartSens
Operating Temperature -10°-60°
Shell Material Metal
Power Supply Normal
Viewing Angle 110°
Optical Zoom NONE
Movement Range(Pan) Other
Name 4G LTE Camera
4G SIM CARD Camera Feature Works with SIM Card
GSM Camera Feature 2 No need WIFI and internet
Function you can use this 4g camera in any place without internet and wifi
Feature 4 There is SD card slot and sim card slot in the camera
Camera APP Camhi or Camhi pro
Sensor Size
1080P 4G Add 128G
5MP 4G Add 128G
1080P WIFI Camera
5MP 4G Version
1080P 4G Version
5MP 4G Add 32G SD
1080P 4G With32G SD
5MP 4G Add 64G SD
1080P 4G Add 64G SD
Ships From
Poland
China
Russian Federation
SPAIN
France
Plug Type
EU plug
US plug
AU Plug
UK plug
If you want8MPWIFI / 4G Camera, you can choose this one following:
Attention:
Hi, if you need a long extend power plug cable , you can click on the picture below to by this extension cable. There is 3M/5M/10M/15M/20M Optional.（If the installation place is not near to the power supply, maybe you need this extension cable.）
5MP Wifi IP Camera Outdoor 3G 4G SIM Card Video Surveillance Waterproof CCTV Security IR Night Vision P2P SD Card Two Way AudioPlease Attention:
There are many options following:
1080P WIFI Version= 1080P WIFI Camera
1080P 4G Version= 1080P 4G Camera
1080P 4G With32G Card= 1080P 4G Camera With A 32G SD Card
1080P 4G With64G Card= 1080P 4G Camera With A 64G SD Card
5MP 4G Version= 5MP 4G Camera
5MP 4G With32G Card= 5MP 4G Camera With 32G SD Card
5MP 4G With64G Card= 5MP 4G Camera With 64G SD Card
4G LTE Camera, 1920*1080 HD resolution ,Waterproof, IR Night Vision with clear image even in dark. Supports 2.4G router WiFi ,easy for you to go through wall when installation. Remote access to the camera on Smartphone via your mobile 4G network or WiFi. 4G LTE CameraFeatures:1．High sensitivity and high SNR Micro Megapixel CMOS sensor2．HI3518E(1.3 megapixels) or HI3516C(2.0 megapixels) main chipset3．Support 960P(1280*960) or 1080P(1920*1080) real-time output4．Support UPNP port forwarding automatically5．H.264 Compression, support double stream (1.3 megapixels) or three stream(2.0 megapixels)viewing at the same time; support mobile phone remote view, compatible with manysmartphone operating platform6．Support abundant network protocal: TCP/IP, HTTP, TCP, UDP, SMTP, FTP, DHCP, DNS,DDNS, NTP,UPNP, RTSP, and so on.7．Support ONVIF protocol8. Support manufacture's DDNS and third party DDNS9. Support alarm pictures to send E-mail10. Support alarm pictures uploaded to FTP server11. Support timer captured picture uploaded to Micro SD card and FTP server12. Support static IP, also support dynamic IP(DHCP)13. Support P2P Plug and Play14. Support IE, Google, Firefox browser15. Built-in webserver to facilitate the user to use the standard IE browser to achieve thefront end of the real-time browsing and setting management16. Support Max 6users (1.3 megapixels) or Max 9 users (2.0 megapixels) browsing at thesame time (each stream: 3 users )17. Support motion detection alarm(can set multiple regions and sensitivity) and sensor alarm18. Support 10M/100M network adaptive19. Built-in Micro SD card slot, Max 128G, timer capture20. Support Wi-Fi/802.11/b/g/3G/4G21. Support TWO-WAY Audio Please Note：There is 1 piece of antenna for WIFI Version and 2 pieces of antenna for 4G Version, you can choose the required version according to the use environment.
3G 4G SIM Card Connection This security surveillance camera Works with 3G/4G SIM-card, you can use this in the place without internet or wifi.
*Even there is no WI-FI, you still can monitor the surveillance area you want.*For example, High speed Road, Farm, Sea, warehouse.
NOTE:
There are 2 different versions of the surveillance camera:1. WI-FI Version: only work with WI-FI connect, Not support 4G2. 4G Version: only work with 3g/4G network via SIM Card NOT support WI-FI
You must check that whether your carrier is within the following frequency bands

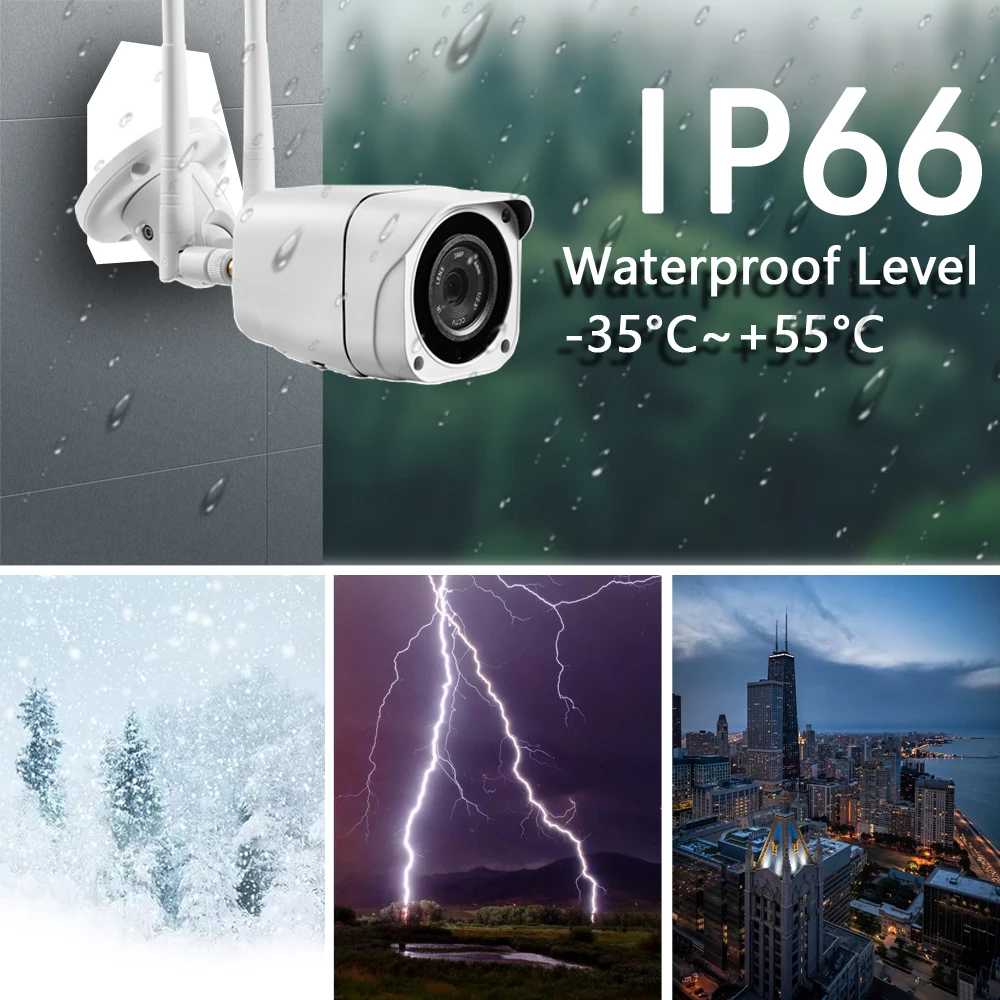

Owing to its high-quality engineering metal material and professional waterproof design IP66, your camera will work normally at a temperature of -4F~122F(-30°~55°) whether is in rainy or snowy day.
Having the function of motion detection , the camera can provide you with 24/7 protection. When motion is spotted, you will receive an instant alert to know that someone is approaching your home.
5MP Super HD
Having a high resolution of 2560x1920（5 million pixels）and real 1080p full HD to choose, security IP camera can capture cryctal clear videos, you can see more valuable details to identify people, vehicles and more objects all day.
4x Digital Zoom
*Easily Switch 1.0X to 4.0X Zoom Instantly in App.*MAMICAM wireless security camera with 4x Digital zoom technology supports area picture magnification to help you see clearer and farther.
Day Night Vision:
Infrared night vision is up to 80m, allowing you to see what you need. Whether it is someone sneaking in at midnight or a raccoon's break-in, all will be captured by the camera in close-up detail.
Package Contents:
1 * IP Camera1 * User Manual1 * Power Adapter1* Waterproof Cap1 * Screws
Loudly Two Way Talk Audio
Support Two Way voice, one-way video call function, No matter where you are, you can accompany your family.
Real-time videos are smoother and clearer. Built-in anti-noise microphone and speaker system support 2-way talk. You can chat with the person in front of camera anywhere, anytime.
Multi-user use
*support of remote monitoring with 10 users at the same time, you can share the scenes with your family and friends, Your families and friends can view the record video at same time.
*Support P2P Multiple devices & Remote Monitoring.*Support view from PC, Android, IOS, Windows
Work with Onvif NVR for 24/7 Reliable Recording
If you have multiple IP cameras, or want 24/7 recording, the cameras can perfectly and efficiently cooperate with a NVR for 24/7 surveillance and recording for your home and business security .If you want to learn more about NVR, please contact with us.
TF Card or Cloud Storage Recording
*Cloud Storage storage when alarm recording(the cloud need pay)*Local Storage TF Card Max 128G(Optional)
Security Camera All-metal Case can be used in rainy, Snow, thunderstorms,For Home,School,Store,Yard,Fish pond,Field You may place it anywhere!
Save all motions in SD card
The SD card will record when motion detection is triggered. support video playback on the App, when the SD card is full,it will automatically cover the old video.
Quickly Install the 4g camera by these steps:
1. Open App Camhipro/ Camhi
2. Choose " Add Camera"
3. Choose ' 4G Camera"
4. Choose " Scan QR Code"
5. Scan the QR Code of the device
6. You can see camera is online, and you can zoom in/out to see the image.
Model
1080P 4G Version
5MP 4G Version
Video
Sensor
2.0MP 1/2.8" SONY307
5.0MP 1/2.8" IMX335
Starlight CMOS
Starlight CMOS
Video resolution
Main stream:
Main stream:
1920x1080@20fps,
2560x1920@15fps,
1280x720@25fps
1920x1080@25fps
Sub stream:
Sub stream:
640x352@25fps,
640x352@25fps,
320x176@25fps
320x176@25fps
Video compression
H.264 Main Profile / H.265 Baseline
Lens
3.6mm Fixed lens
View angle
120°
Night vision
10pcs SMD array infrared LEDs, night vision distance 30m
Video frame rate
20fps(PAL 50HZ/NTSC 60HZ)
15fps(PAL 50HZ/NTSC 60HZ)
Audio
Audio compression
G.726/G.711
Audio code rate
8Kbps, 16bit
Audio input/output
Built-in MIC and speakers, support two way audio
Alarm
Motion detecting alarm
Can set 4 independent detection region (1-100 sensitivity can be set)
Alarm linkage
Alarm send pictures to the mailbox,
Alarm upload pictures and videos to the FTP server,
Alarm record pictures and videos to Micro SD card,
Alarm mobile phone message push,
Alarm trigger sound alarm
Alarm recording
Support Micro SD card and PC client linkage alarm recording
3G/4G
3G standard
WCDMA
3G frequency range
B1(2100MHz), B8(900MHz)
4G standard
FDD-LTE/TDD-LTE
4G frequency range
B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz),
B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz)
Interface type
3G 4G SIM card, Plug and play, no need to set
Storage
Micro SD card
Support up to 128G TF Card Storage
Recording mode
Alarm record, timing record,
Video playback
Support APP, IE browser, remote client play and download the video
General
Power
DC12V 2A
specification
Operating environment
Environment -20℃~+60℃(-4℉~+140℉),
Humidity 10%~90%, non-condensing
Shell material
All Metal Shell
Waterproof level
IP66
Product size
175mm×62mm×66mm(L×W×H)
Product weight
0.35kg
Package size
218mmx158mmx106mm(L×W×H)
Package weight
0.6kg
Reset button
Support
