Car Blade Holder Fuse Box 12/10/8/6 Ways Modified Terminal Block Fuse with LED Warning Light for Car Boat Marine Trike 12V 24V

Fuses>>>Automobiles & Motorcycles

Origin CN(Origin)

feature mini blade fuses

Feature 1 6 way fuse box independent positive and negative

Feature 2 8 way fuse box screw terminal type

Feature 3 10 way fuse box screw terminal type

Feature 4 12 way fuse box screw terminal type

Ships From

China

Russian Federation

Color

12/10/8/6 Ways Car Blade Holder Fuse Box Modified Terminal Block Fuse with LED Warning Light for Car Boat Marine Trike 12V 24V

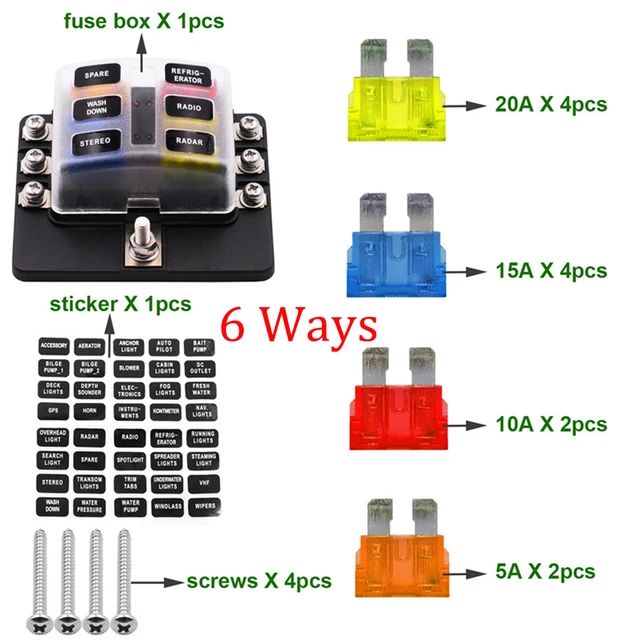

6 Ways

(1)Product name : 1 input and 6 output fuse box with LED indicator screw terminal section (2) Product number : CS-579A1Product net weight 106gProduct size 7X8.5X3.5cmProduct material PBT body, PC waterproof dust cover, nickel- platedcopper connection terminal, PPX40 stickerInput rated voltage 32VInput rated current 100AInput wire specifications #4-6 AWGOutput maximum current 30A per circuitOutput Wire Specifications #12-16 AWGIndicator color red When the red LED is lit, it means the fuse has been disconnected. You need to replace the fuse in time to continue running. Product installation range can be installed on cars, Yueshu, RV, bus, yacht, boat, etc. The scope of use of the product can be directly connected to the line of any electric appliance on the vehicle/ship, such as roof lights, car headlights, and wide-width lights.Fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs, etc.

8 Ways

[product name] : 1 in 8 out fuse box with LED indicator light [screw terminal type]

[product net weight] : 129g [product size] : 8.5x8.5x3.5cm

[product material] : PBT ,PC nickel-plated copper connector Input rated voltage: 32V

[input rated current] : 100A [output maximum current] : each circuit is 30A

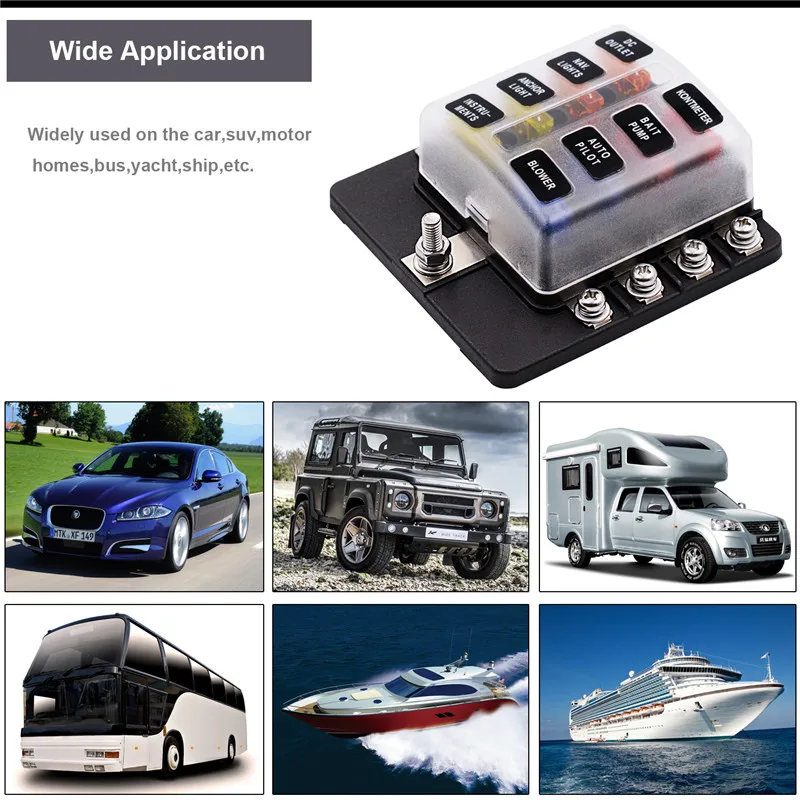

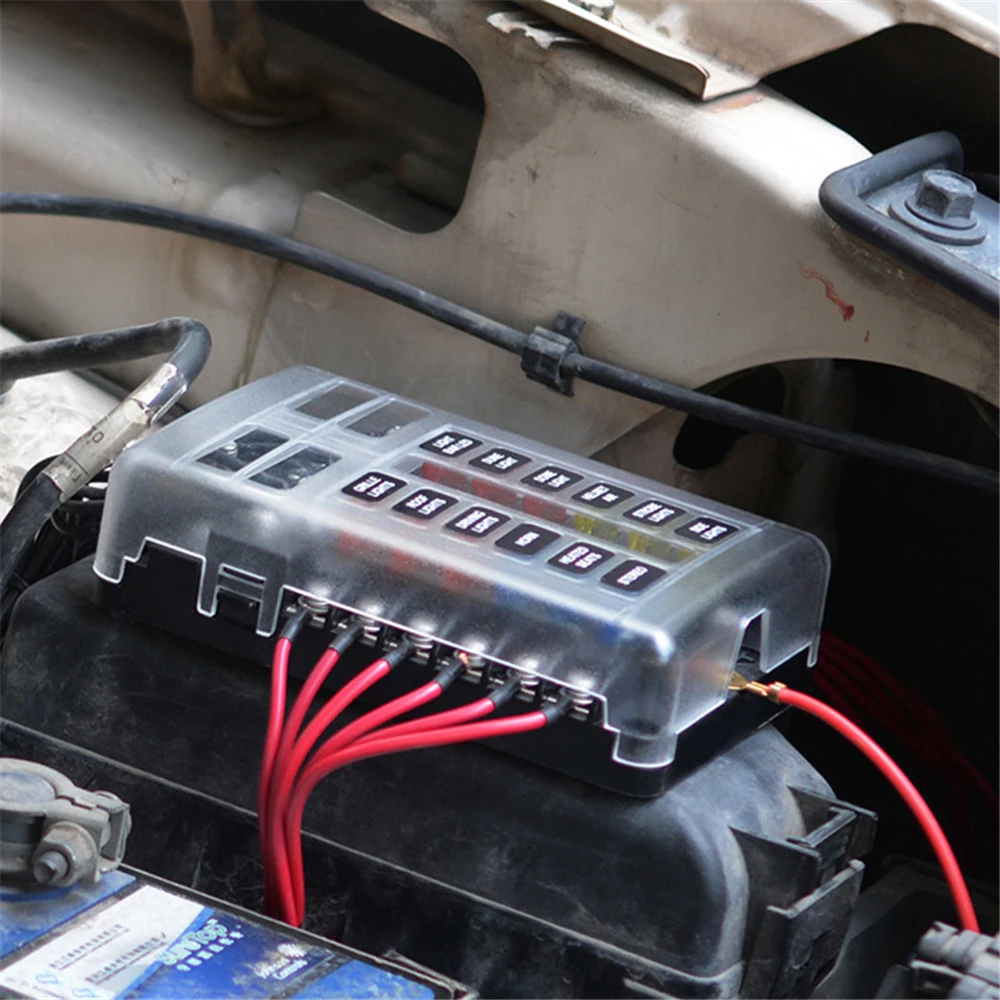

[scope of product installation] : it can be used on cars, houses, RVS, buses, yachts, boats, etc

[scope of use] : it can be directly connected to any electric circuit of the car/ship.

Fog lamps, warning lights, car refrigerator, car charger, car fan, car TV, etc.

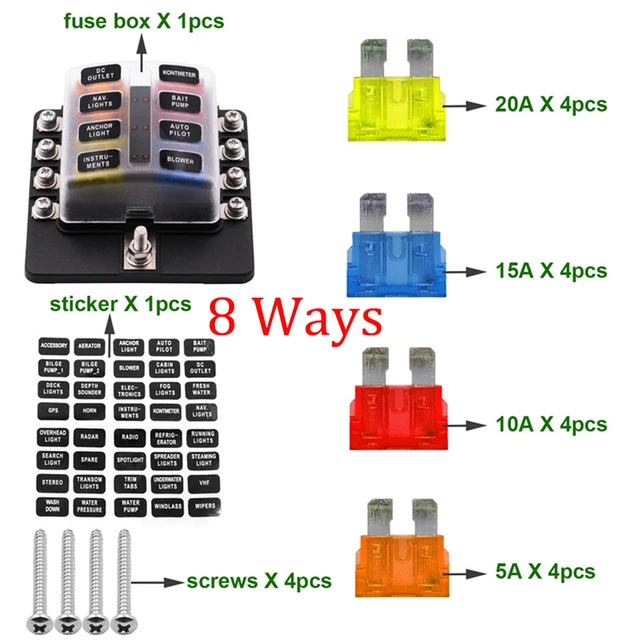

[product accessories] : sticker X1; Self-tapping screw X4; 20A fuse X4; 15A fuse X4; 10A fuse X4; 5A fuse X4

Product advantages:

[1] the product adopts PBT anti-fire, fire retardant, material.

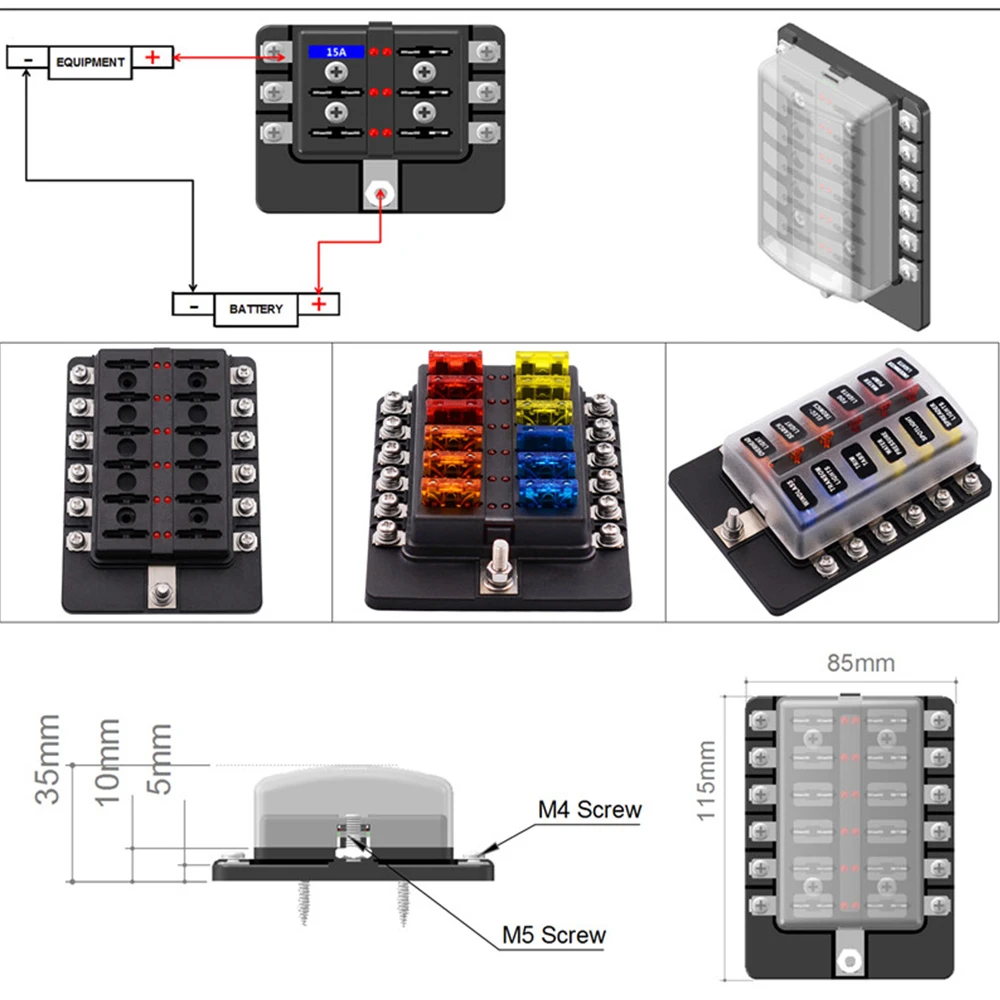

[2] the design of product 1 in 8 can directly connect one wire to the positive electrode of the battery and one wire to the fuse box.

By the fuse box, the 8-bit terminals are separately connected with the positive poles of different electrical appliances, which is very simple and convenient

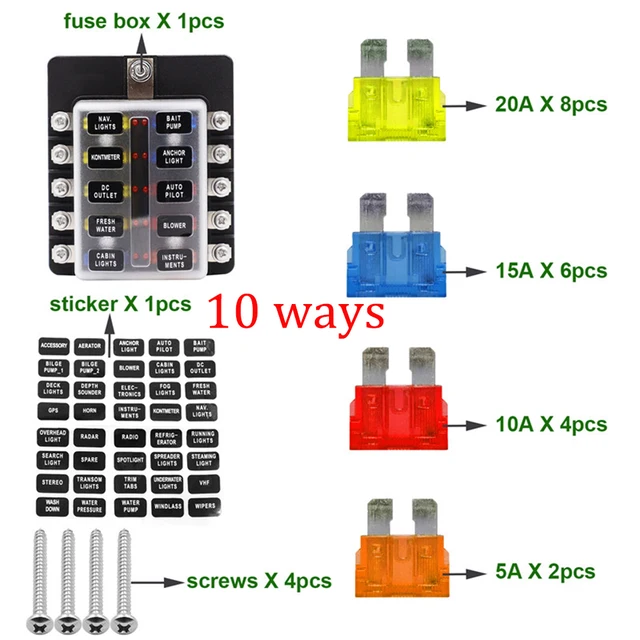

10 Ways

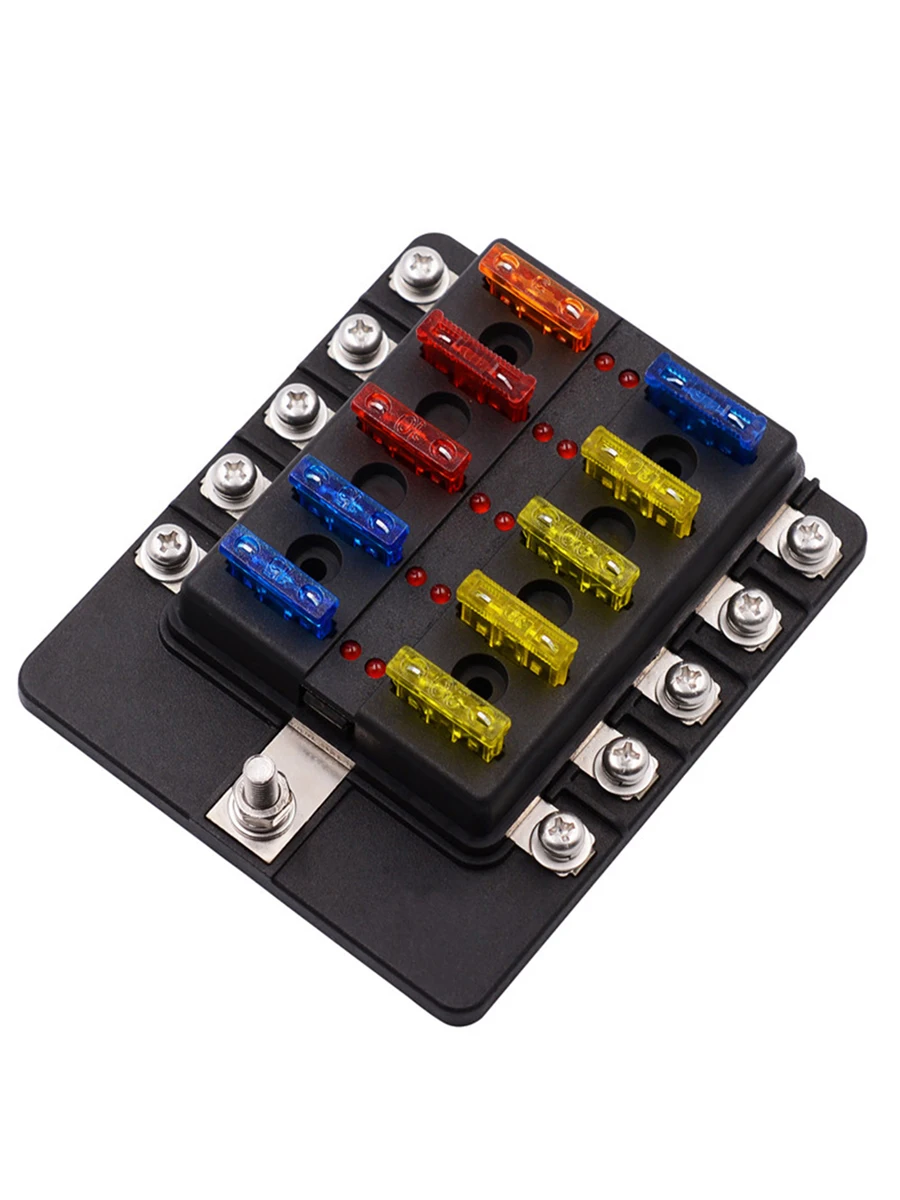

Product name 1 input and 10 output fuse box with LED indicator screw terminal section

Product weight 155g Product size 10 8.5 3.5 cm product material PBT body PC waterproof dust cover nickel-plated copper connection terminal PPX40 sticker Input rated voltage 32V Input rated current 100A Input wire specifications #4-6 AWG Output maximum current 30A per circuit Output wire specifications #12-16 AWG Product installation range Can be installed on cars, Yueshu, RV, bus, yacht, boat, etc.

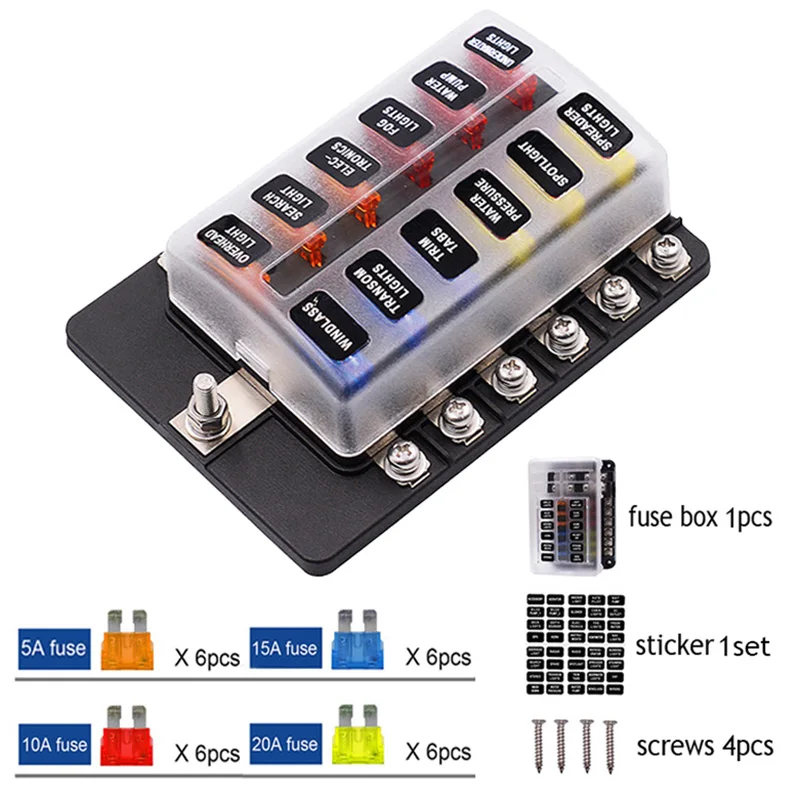

12 Ways

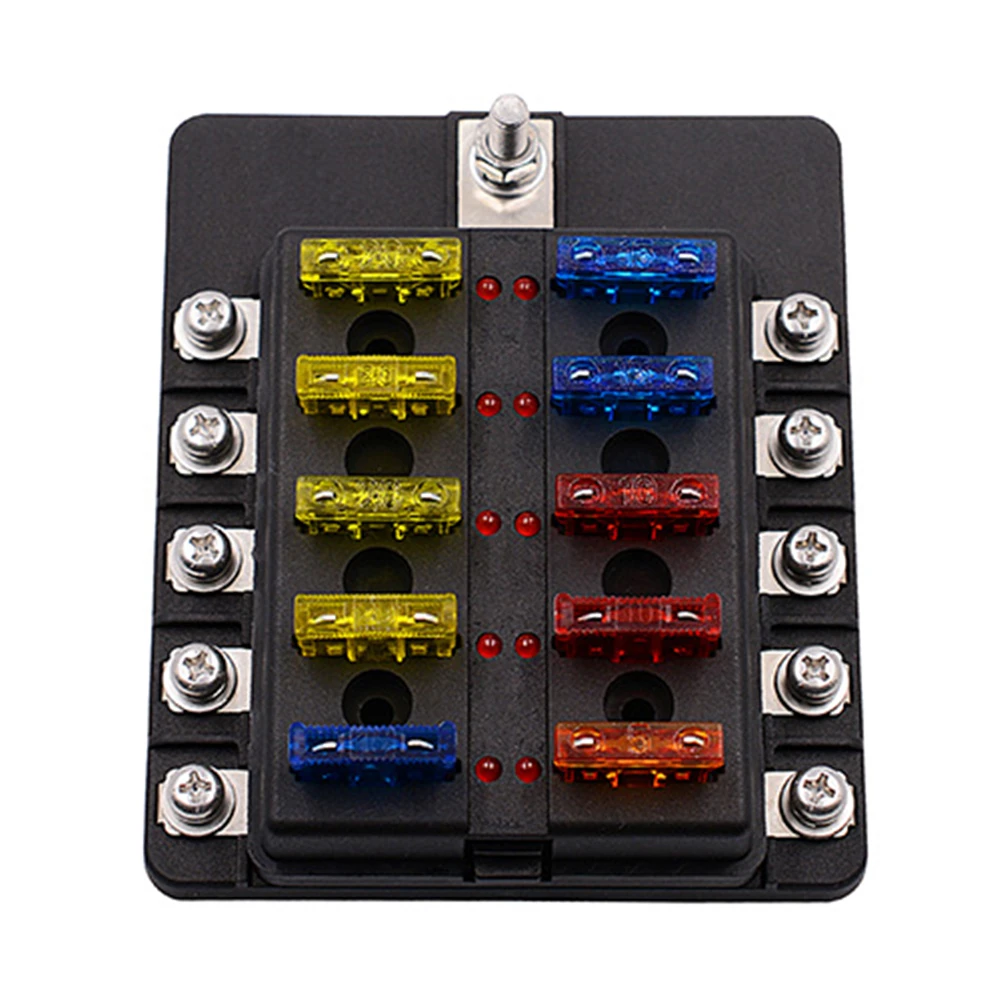

Product name 1 in 12 out fuse box with LED indicator light ,screw terminal type

product weight 177g product size 11.5X8.5X3.5cm product material PBT body, PC waterproof and dustproof cover, nickel-plated copper connector, PPX40 sticker Input rated voltage 32V Input rated current 100A output maximum current each circuit is 30A scope of product installation it can be used on cars, houses, RVS, buses, yachts, boats, etc
