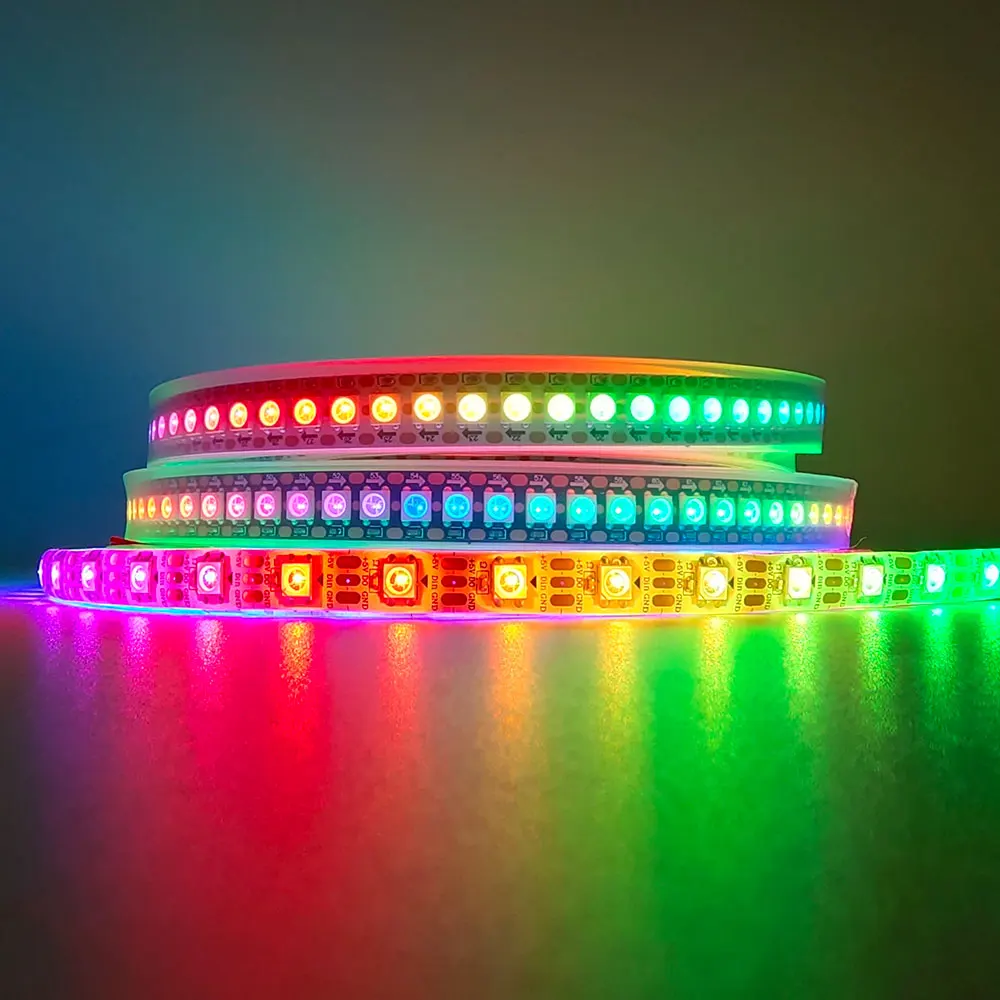

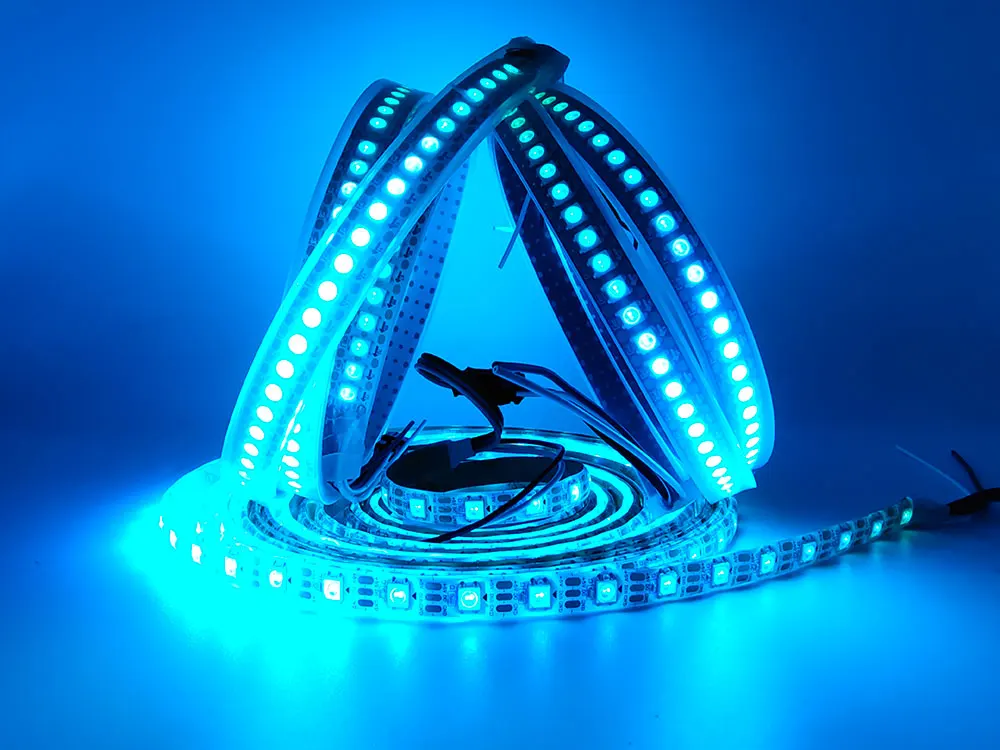

WS2812B WS2812 Digital Flexible Individually Addressable Pixel Led Strip RGB LED Strip 30/60/74/96/144Pixels/Leds/M Tape Light

>>>

Brand Name Aurboos

Origin CN(Origin)

Certification CCC

Certification ce

Certification FCC

Certification ROHS

Average Life (hrs) 50000HOURS

LED Chip Model SMD5050

Strip type SMD

Power Generation Switch

Waterproof Yes

Is Smart Device Yes

Occasion Living Room

LED Chip Brand Epistar

Power Source DC

Model Number WS2812B /WS2812

Specifications (light beads / m) 0/60/74/96/100/144

LEDs Number/M 0/60/74/96/100/144LEDs/m

Item Type Strip

Power Consumption (W/m) 11.52W/m

Voltage DC5V

Emitting Color

Black PCB

White PCB

Wattage

1M 30 IP30

2M 30 IP30

3M 30 IP30

4M 30 IP30

5M 30 IP30

1M 30 IP65

2M 30 IP65

3M 30 IP65

4M 30 IP65

5M 30 IP65

1M 30 IP67

2M 30 IP67

3M 30 IP67

4M 30 IP67

5M 30 IP67

1M 60 IP30

2M 60 IP30

3M 60 IP30

4M 60 IP30

5M 60 IP30

1M 60 IP65

2M 60 IP65

3M 60 IP65

4M 60 IP65

5M 60 IP65

1M 60 IP67

2M 60 IP67

3M 60 IP67

4M 60 IP67

5M 60 IP67

1M 74 IP30

1M 74 IP65

1M 74 IP67

1M 96 IP30

1M 96 IP65

1M 96 IP67

1M 144 IP30

1M 144 IP65

1M 144 IP67

Ships From

China

Russian Federation

Pay attention：

1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order！

2. WS2812B Led strip can be cut buy every "one" led chip!

3. IP30: Non- Waterproof

IP65: Waterproof in Silicon Coating

IP67: Waterproof in SiliconTube

4. WS2812B Led Strip Work WithDC5V,And it must need aWS2812B Led ControllerControl it

If the order no more than $5 ,no tracking number !!

this link is not include power supply and led controller,please know it

Package Include:

1m//2m//3m//4m//5m WS2812B Led Strip

Product Decsription:

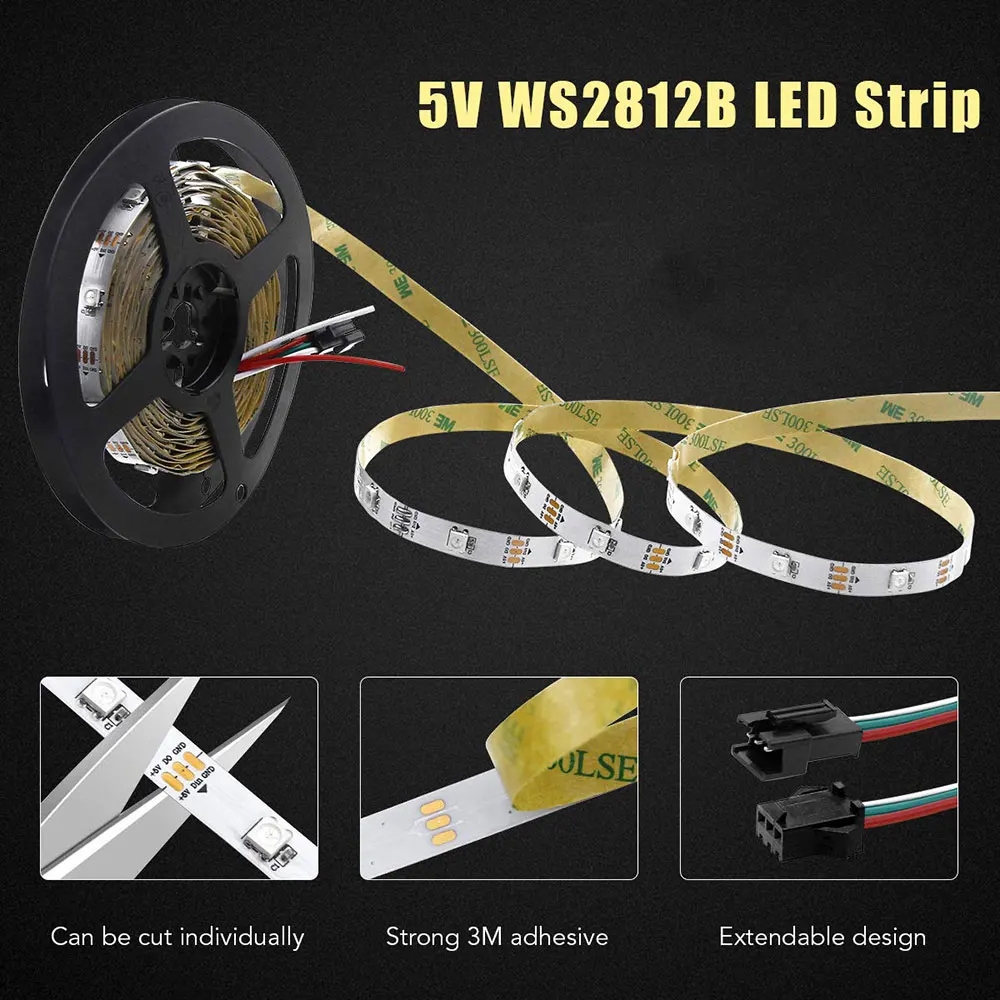

1. WS2812B Led Strip is Powered By "5V Power Supply" (Not Included) And Is Controlled By ASingle Data Line From A Suitable Controller(Not Included).

2. 3-Pin JST Connector Included: Red:VCC, Withe:GND, Green:DATA.

3. The Strip Has 3M Adhesive Tape On The Back(Except Ip67). Installation Surface Must Be Smooth, Clean And Dry.

4. Led Strip Can Be Cut Between Every Led To Create Custom Lengths.

5. Do Not Bend Strip Sharply.

6. Longer Runs Should Be Powered From Both Ends To Reduce Voltage Drop.

7. 3-Pin JST Connector Wire is 20AWG.

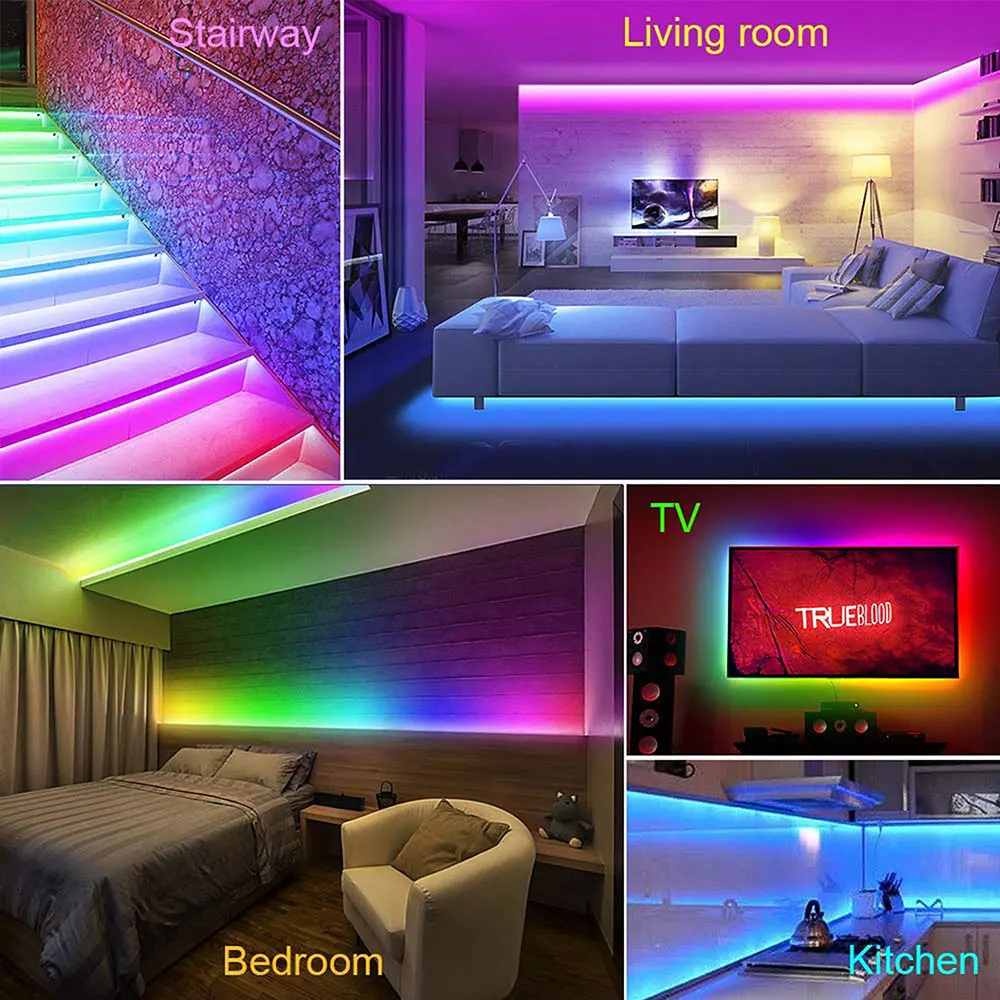

Products Application:

WS2812B Dream Color Strips Can Be Used For TV Hotel, KTV, Bar, Game Room And Other Leisure, Entertainment Decoration To Heighten The Atmosphere, Car Chassis, Car Decoration, Shop Decoration, Home Decoration And Other Decoration.

Product Details:

Input Voltage: DC5V

Power: 30Leds/m----9Watt/meter

60Leds/m----18Watt/meter

96Leds/m----28.8Watt/meter

144Leds/m----43.2Watt/meter

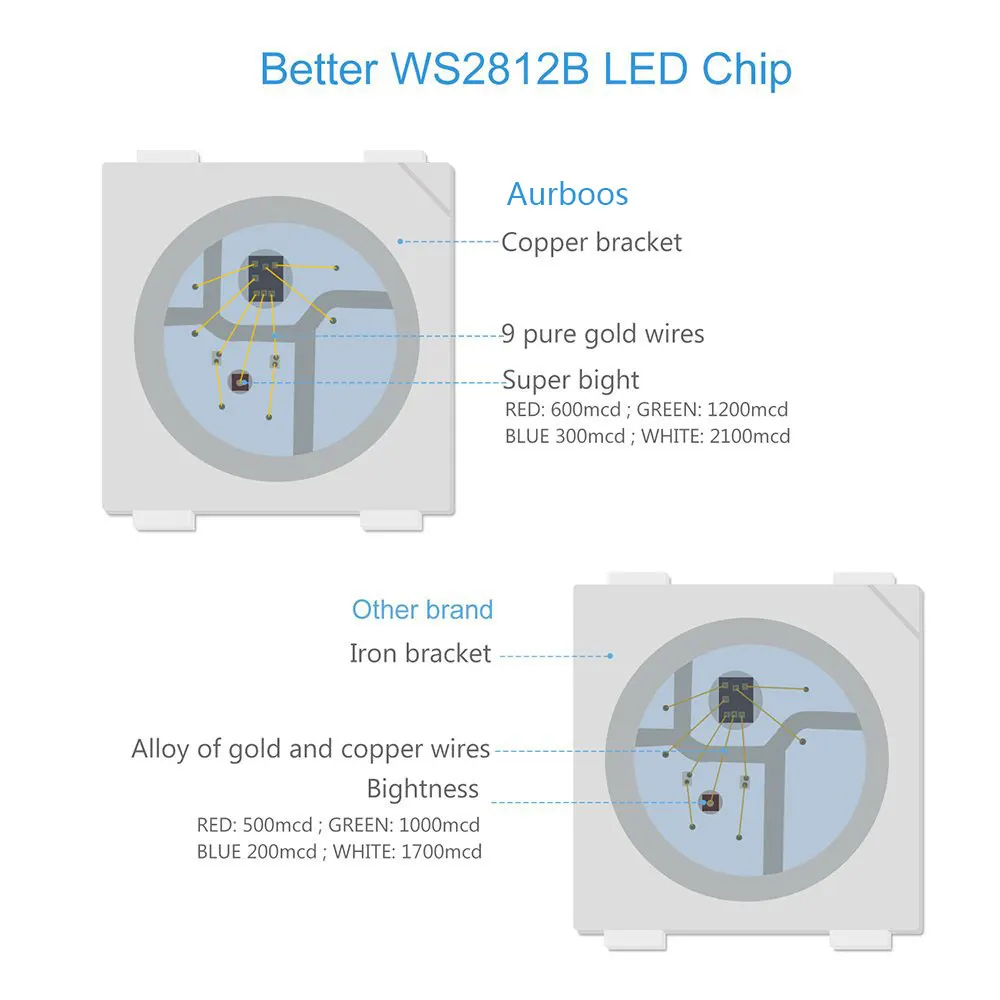

LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)

LED: Each Led is Separately Controlled

IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)

Of IC: 1 IC Drives 1 Led Chip

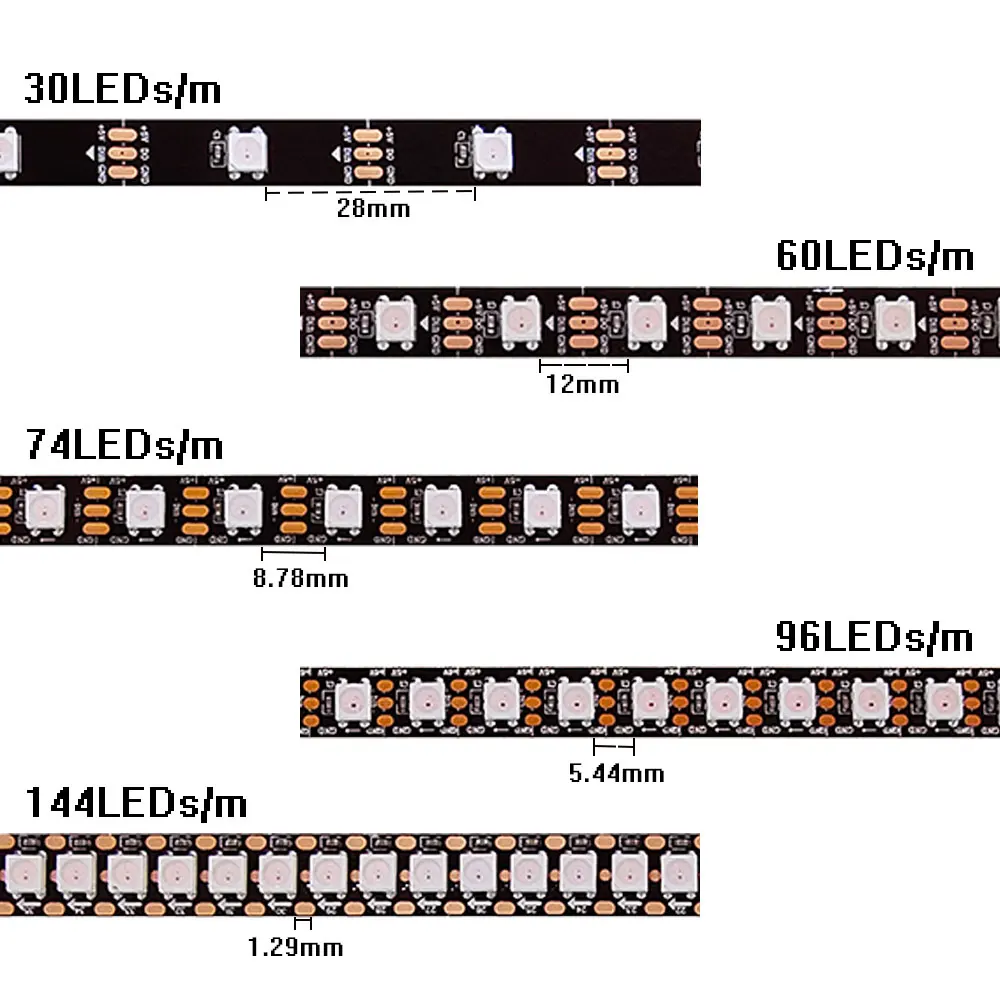

Pixels: 30/60/96/144/Meters

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Bits/Color: 8-Bits/Color

FPC Width: 30Leds/m----10mm

60Leds/m----10mm

96Led/m---10mm

144Leds/m----12mm

FPC color: Black/White

Protection Rate: IP30/ IP65 /IP67

Colors: Full Color RGB, Dream Color Changing

Cuttable: Every LED is Cuttable

Package:In Anti-Static Bag,IP30 IP65 With 3M Adhensive Tape On The Back(IP67 Without 3M Adhensive)
