12.1 Inch HMI NEW Serial LCD Display Module with Program + Touch Screen for Equipment Control Panel STWA121WT-01

LCD Modules>>>Electronic Components & Supplies

Brand Name STONE

Origin CN(Origin)

Display Mode 800:1

Model Number STWA121WT-01

is_customized Yes

Type TFT

Display Scale 4:3

Resolution 800*600

Colors 262K

CPU 1GB Hz Cortex A8

Brightness 450 cd/m2

Backlight LED

Visual Angel 80/80/80/60

Interface RS232/RS422/RS485/TTL

Network Ethernet / WIFI / BT

Touch Panel 4-wire resistance

LCD Class A+

Flash Memory 256M

Working Voltage 5-28V,5-28V

Aging Test 48 Hours

Size 3.5-15 Inch Available

Backlight life 30000 Hours

Intelligent TFT-LCD Module

Model

STWA121WT/N-01

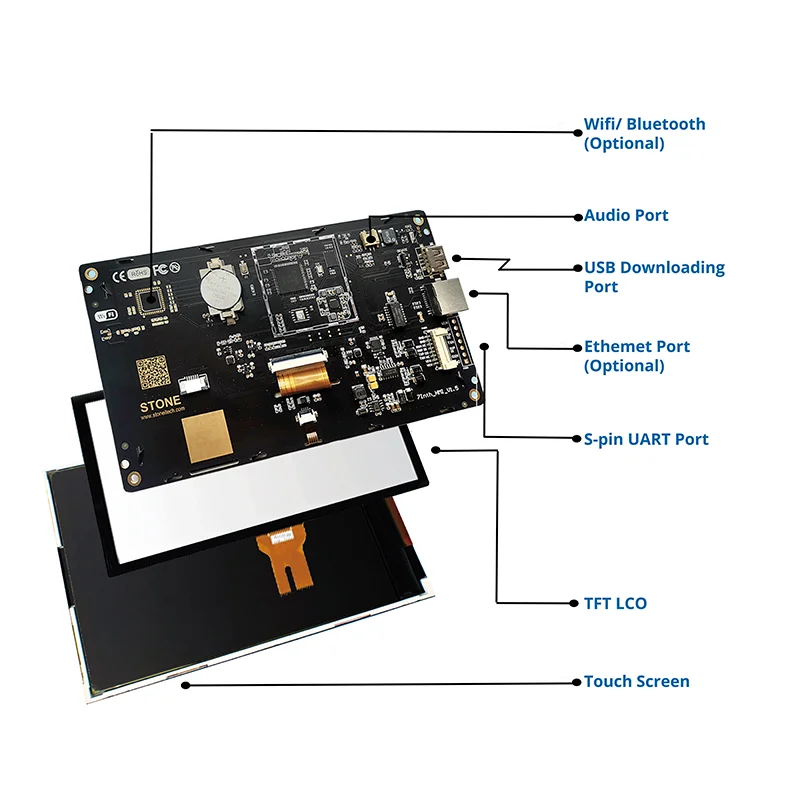

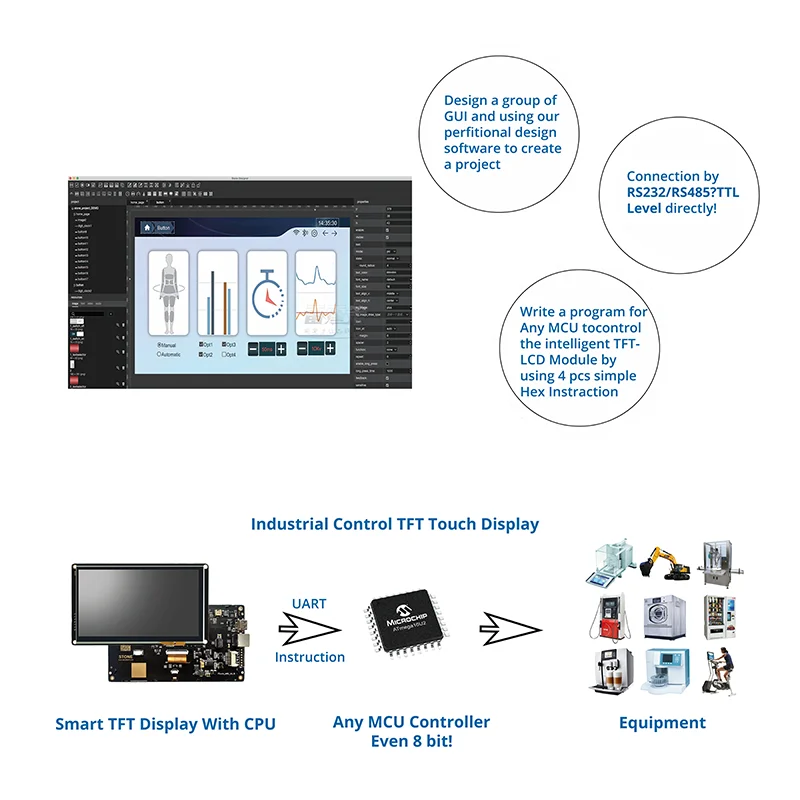

The STWA121WT/N-01 has been conceived as TFT monitor & Touch controller. It includes processor, control program, driver, flash memory, RS232/RS422 / RS485/ TTL / LAN port, Wi-Fi / Bluetooth, touchscreen, power supply etc，so it is a whole display system based on the powerful & easy operating system, which can be controlled by Any MCU.

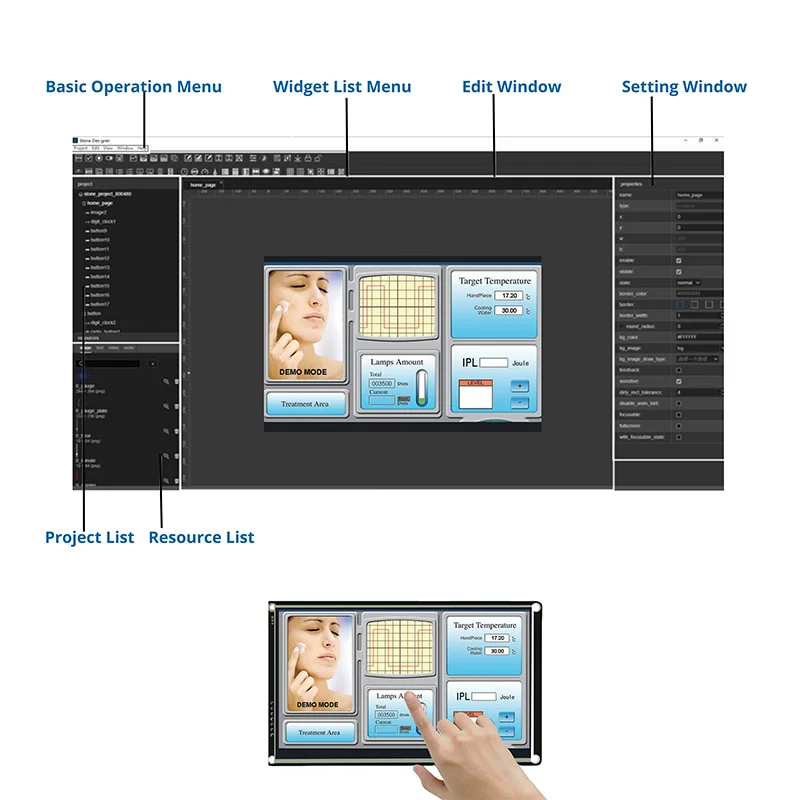

The STWA121WT/N-01 can be used to perform all basic functions, such as text display, image display, curve display as well as touch function, Video & Audio function etc. The User Interface can be more abundant and various. And the flash memory can store your data, configuration files, image file, font file, video file and audio file etc.
